Hanna

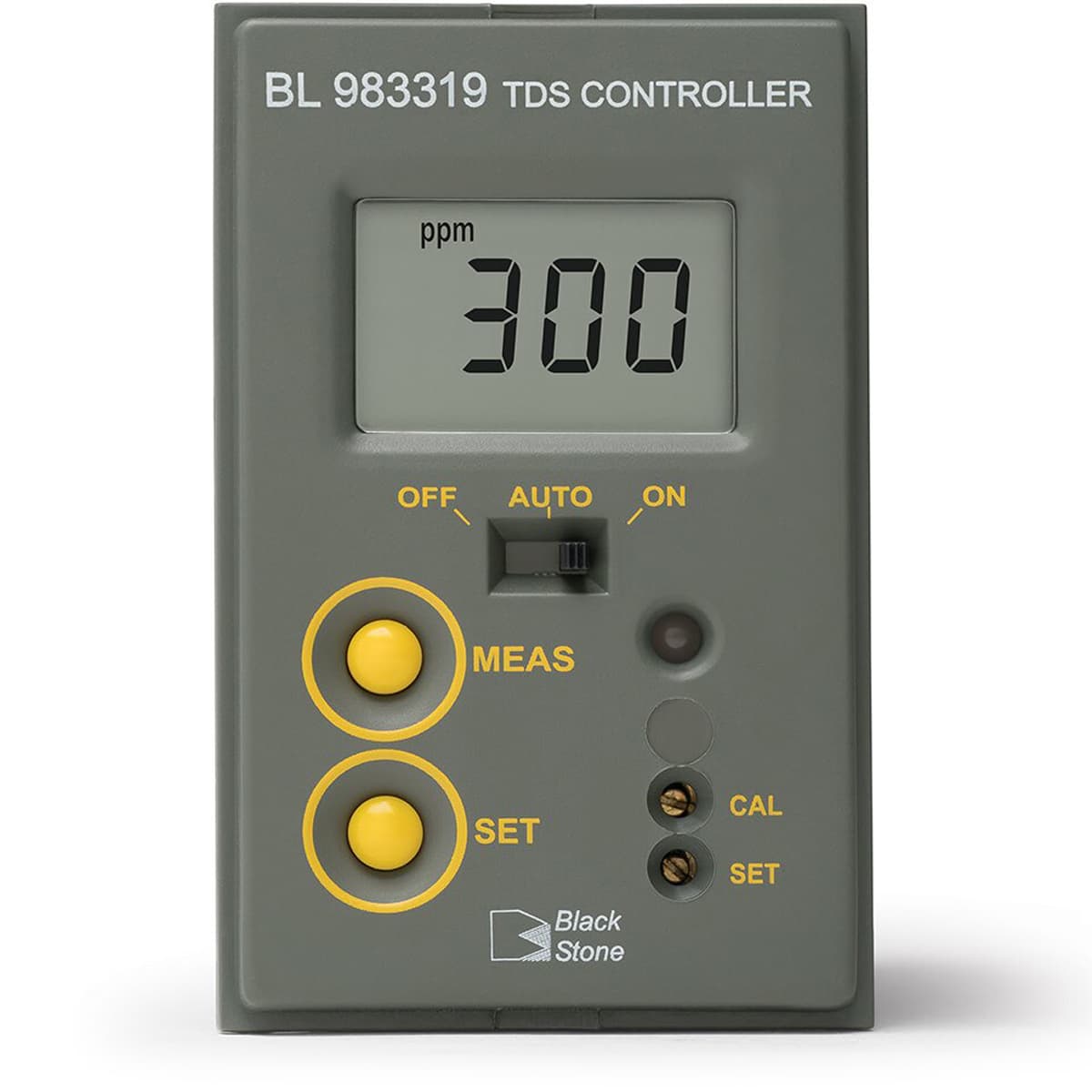

BL983319-1 TDS Mini Controller 0.0 to 1999 mg/L (ppm) – 230V

Product code: MX-11260

Easy to handle Fire retardant casing Selectable overdose protection system Splash resistant cover Dosing Relay: Contact close when measure: < set point This instrument has been designed for TDS control in hydroponics, horticulture and water conditioning.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Adjustable Dry Contact Dosing Relay The BL983319 features a dosing relay that is activated when the reading is above a user programmable set point. Programmable Overdose Protection For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled. Relay Control Override With the flick of a switch the mini controller's relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump. Multicolor LED Indicator Multicolor LED indicator allows an operator to quickly check the status of the controller. Green = Meter in measurement mode and reading is below the set point. Orange/Yellow = Reading is above the set point and the relay is activated. Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded. Fuse Protected Dosing Contacts The relay dosing contact is rated for up to a 2A load and is fuse protected. Labeled Termination Connections Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light. 1/2" NPT Male Threaded Amperometric Probe for Mounting In-line* The BL983319 mini controller uses the HI7634-00 conductivity probe that is available with different cable lengths.*HI7634-00 is not included and must be ordered separately Front View Installation cut-out dimensions are provided as well as outside panel dimensions. Side View Adjustable location brackets allow the controller to slide easily and securely into place.

Specifications

Range0 to 1999 ppm
Resolution1 ppm
Accuracy @ 25°C±2% F.S.
TDS Conversion Factor0.65
ProbeHI 7634-00 EC/TDS probe with internal temperature sensor and 2 m (6.6’) cable (not included)
Temperature CompensationAutomatic, 5 to 50°C (41 to 122°F) with ß = 2%/°C
Calibrationmanual, with CAL trimmer
Dosing Relaymaximum 2A (fuse protected), 250 Vac, 30 VDC Contact close when measure: < set point
Setpointadjustable from 0 to 1999 ppm
Overtimeadjustable, typically from 5 to approx. 30 minutes
Power SupplySee Chart
Dimensions79 x 49 x 95 mm (3.1 x 1.9 x 3.7’’)
