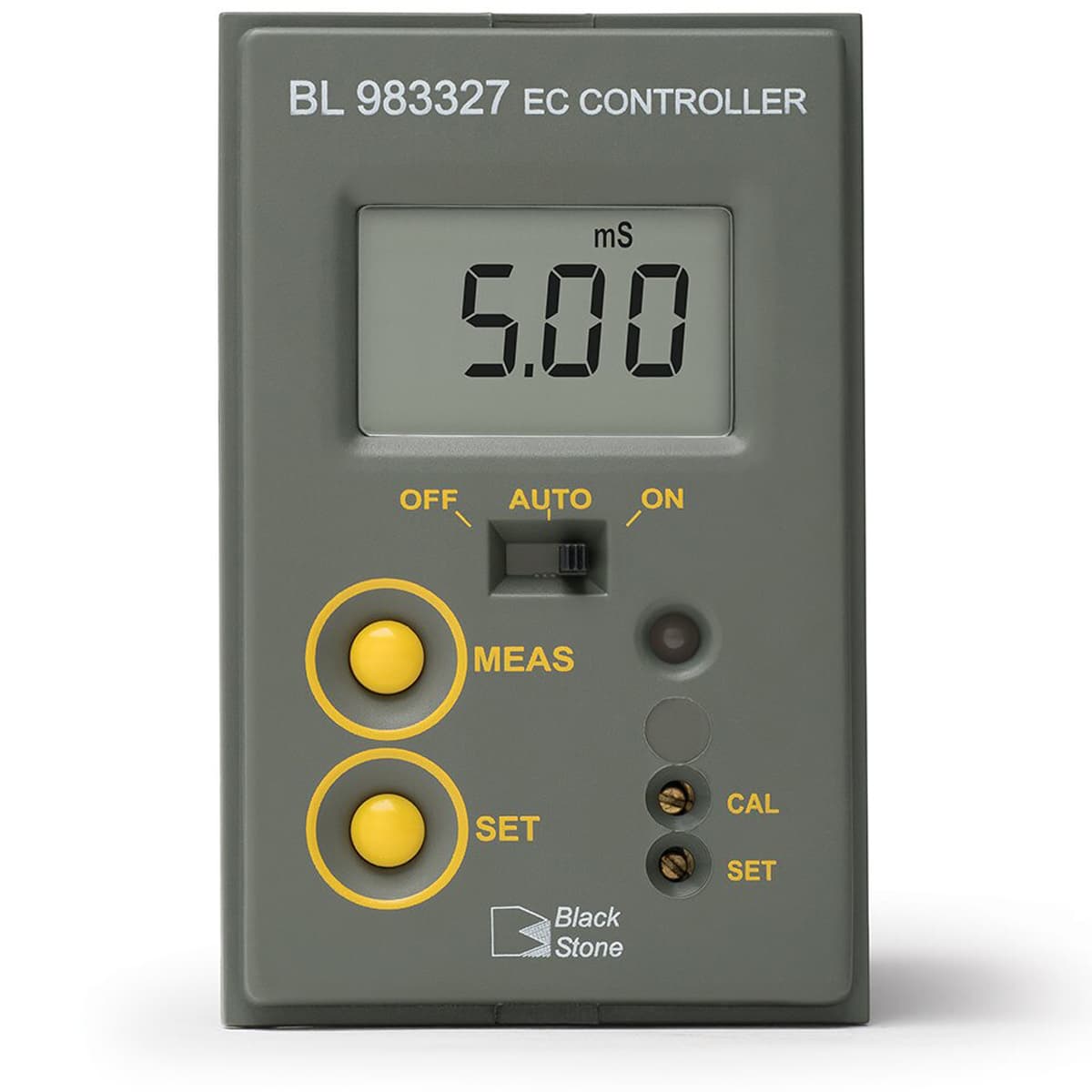

BL983327-1 EC Mini Controller upto 10.00 mS/cm, 230V
Product code: MX-11266
Easy to handle Fire retardant casing Selectable overdose protection system Splash resistant cover Dosing Relay: contact close when measure > set point BL 983327 is a panel mounted mini controller with an output relay that has been designed for easy, affordable installation in tight spaces—ideal for simple yet…
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Adjustable Dry Contact Dosing Relay The BL983327 features a dosing relay that is activated when the reading is above a user programmable set point. Programmable Overdose Protection For enhanced safety the mini controller can be programmed to deactivate the dosing relay if the set point is not reached within a specified time interval. The overdosing timer is programmable from 5 to 30 minutes or disabled. Relay Control Override With the flick of a switch the mini controller's relay can be disabled (Off), placed in control (Auto), or be activated for manual operation (On) which is useful for priming a dosing pump. Multicolor LED Indicator Multicolor LED indicator allows an operator to quickly check the status of the controller. Green = Meter in measurement mode and reading is below the set point. Orange/Yellow = Reading is above the set point and the relay is active. Blinking Red = Indicates an alarm condition such as when the maximum dosing time has been exceeded. Fuse Protected Dosing Contacts The relay dosing contact is rated for up to a 2A load and is fuse protected. Labeled Termination Connections Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay that can be used to operate a dosing pump, valve, audible alarm, or light. 1/2" NPT Male Threaded Amperometric Probe for Mounting In-line* The BL983327 mini controller uses the HI7632-00 conductivity probe that is available with different cable lengths.*HI7632-00 is not included and must be ordered separately Front View Installation cut-out dimensions are provided as well as outside panel dimensions. Side View Adjustable location brackets allow the controller to slide easily and securely into place.
Specifications
| Range | 0.00 to 10.00 mS/cm |
|---|---|
| Resolution | 0.01 mS/cm |
| Accuracy @ 25°C | ±2% F.S. |
| Probe | HI 7632-00 EC/TDS probe with internal temperature sensor and 2 m (6.6’) cable (not included) |
| Temperature Compensation | Automatic, 5 to 50°C (41 to 122°F) with ß = 2%/°C |
| Calibration | manual, with CAL trimmer |
| Dosing Relay | maximum 2A (fuse protected), 250 Vac, 30 VDC, contact close when measure > set point |
| Setpoint | adjustable from 0 to 10 mS/cm |
| Overtime | adjustable, typically from 5 to approx. 30 minutes |
| Power Supply | See Chart |
| Dimensions | 79 x 49 x 95 mm (3.1 x 1.9 x 3.7’’) |
