HI3821 CTK Cooling Tower & Boiler Combination Test Kit

Product code: MX-11822

Boilers can be complicated systems to maintain. It seems easy enough that water heats to steam, and that steam provides power. For such a seemingly simplistic operation, care and maintenance can be anything but simple. Proper boiler treatment can prevent or correct a multitude of hazardous and costly situations.

Used in:Industrial QC

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

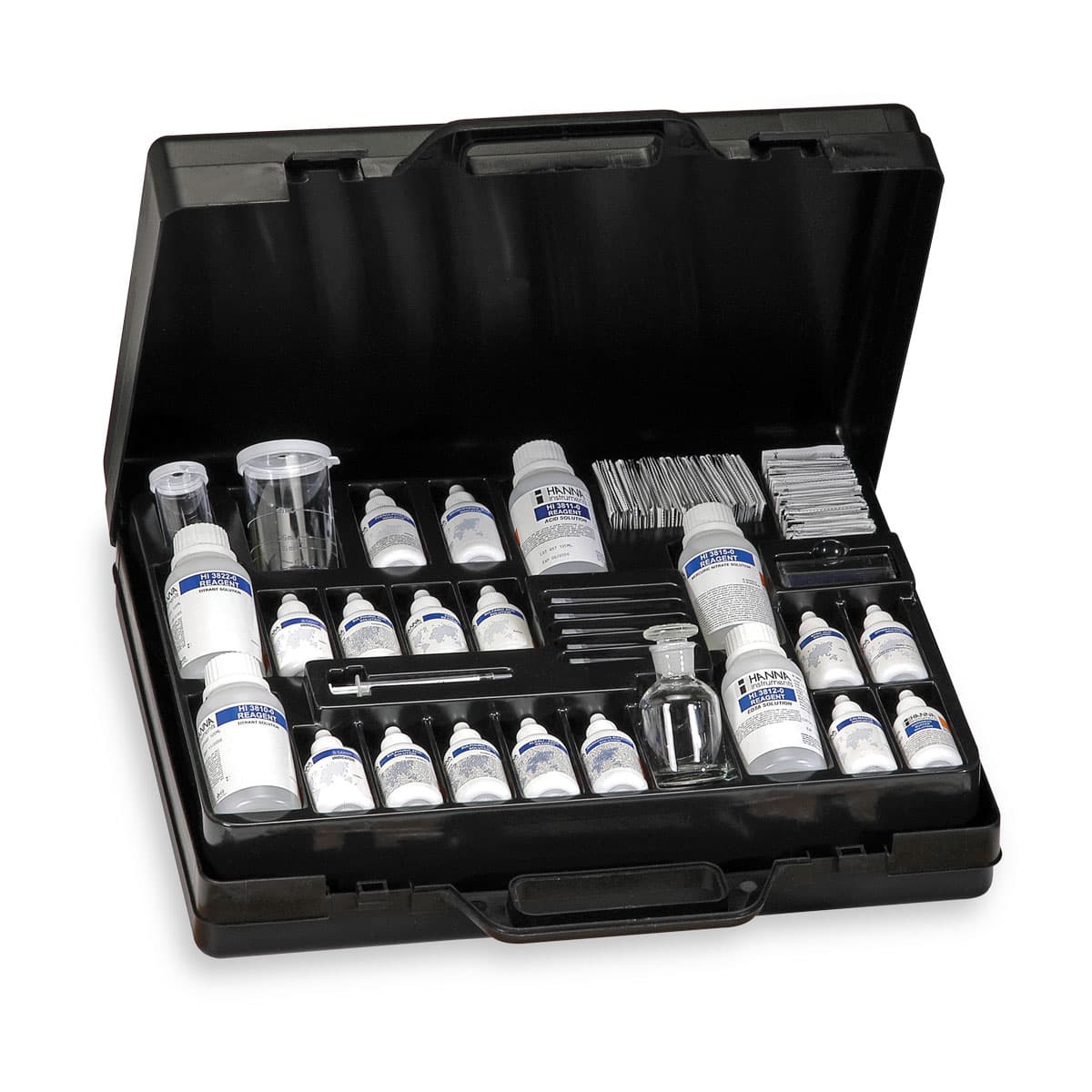

The HI3821 is a chemical test kit that determines that uses titration and colorimetry to measure six parameters common to cooling and boiler systems: alkalinity, chloride, hardness, dissolved oxygen, phosphate, and sulfite. The HI3821 is supplied with all of the necessary reagents and equipment to perform each analysis, and all reagents are individually available as they run out. Features at-a-glance Complete setup All required materials are included with the test kit, such as the dissolved oxygen glass bottle, sample beaker, indicator and reagent bottles and packets, and color comparison cube. High resolution All tests provide a high resolution based on the expected range of measurement. Replacement reagents available There is no need to buy a new kit when reagents are exhausted. The reagents for each parameter can be ordered individually. Significance of Use Corrosion can occur in many key areas of a boiler. It can shorten the life of a boiler, or at the very least, increase the costs associated with maintaining a boiler. Corrosion can form in water heaters, deaerators, superheater tubes, and economizers, among other places. Monitoring the alkalinity, chloride, hardness, dissolved oxygen, phosphate, and sulfite concentrations in cooling and boiler systems is essential in preventing hazardous or costly situations.

Specifications

Dimensions440 x 330 x 100 mm (17.3 x 13.0 x 3.9′′)
Weight2.5 kg (5.5 lb.)
ParameterRange Method Smallest Increment Chemical Method Number Of Test
Alkalinity0-100 mg/L 0-300 mg/L Titration 1 mg/L 3 mg/L Phenolphthalein/ Bromphenol blue approx. 110
Chloride0-100 mg/L 0-1000 mg/L Titration 1 mg/L 10 mg/L Mercuric Nitrate approx. 110
Hardness0.0-30.0 mg/L 0-300 mg/L Titration 0.3 mg/L 3 mg/L EDTA approx. 100
Oxygen, Dissolved0.0-10.0 mg/L Titration 0.1 mg/L Modified Winkler approx. 110
Phosphate0-5 mg/L Colorimetric 1 mg/L Ascorbic Acid approx. 100
Sulfite0.0-20.0 mg/L 0-200mg/L Titration 0.2 mg/L 2 mg/L Iodometric approx. 110
