Hanna

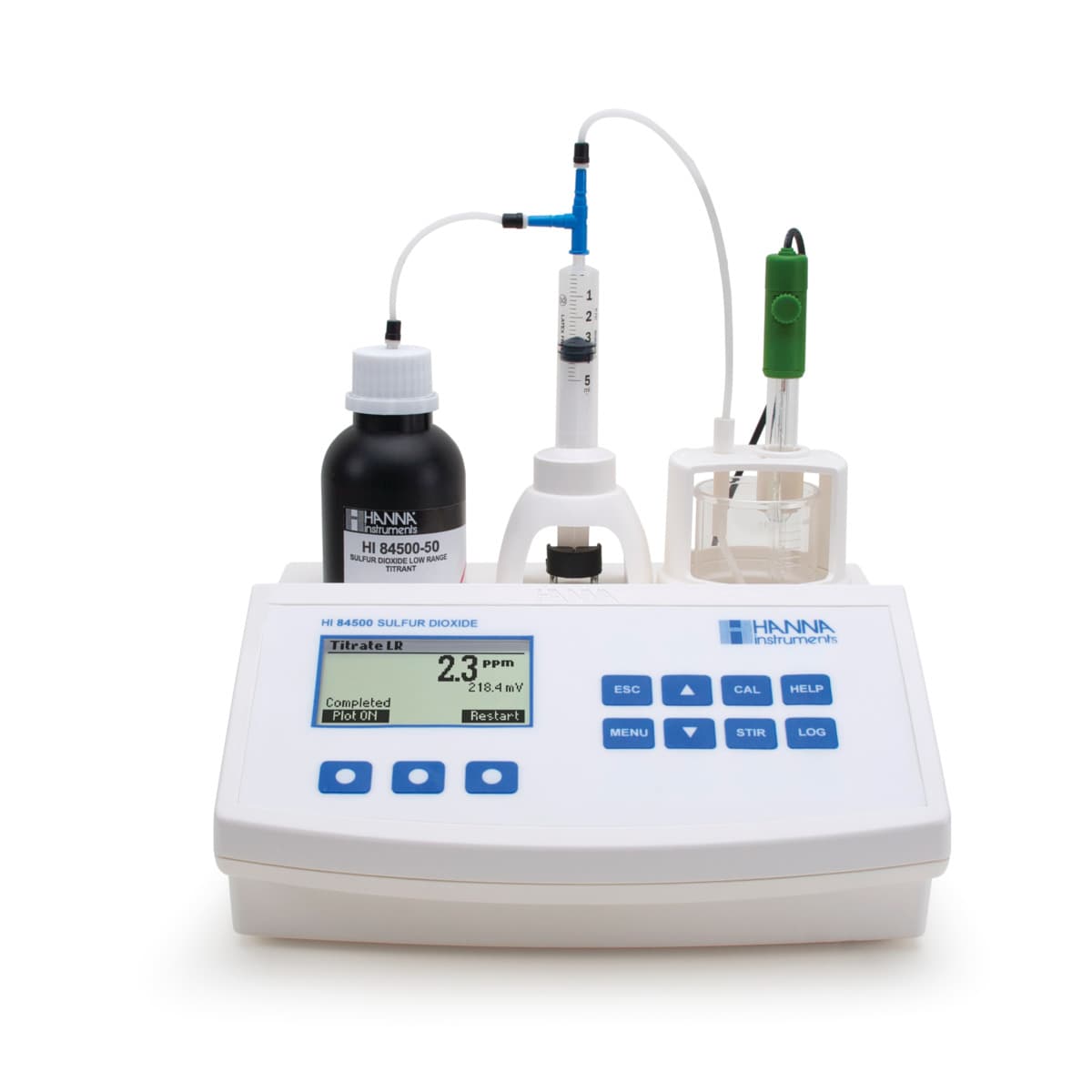

Sulfur Dioxide Mini Titrator for Wine

Product code: MX-12524

The HI84500 can be used to test for free and total sulfur dioxide in all wines, including red, which are difficult to test using traditional methods due to the inability to see the distinctive color change that occurs at the endpoint. The HI84500 offers reliable, accurate, and fast wine analysis.

Used in:Food & beverage

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

The HI84500 can be used to test for free and total sulfur dioxide in all wines, including red, which are difficult to test using traditional methods due to the inability to see the distinctive color change that occurs at the endpoint. The HI84500 offers reliable, accurate, and fast wine analysis. This mini titrator dispenses the titrant, detects the endpoint, and performs all necessary calculations automatically in a fraction of the time as compared to a manual titration. As found in Triage for Basic Wine/Grape Lab by Richard Carey, "the mini-titrator by Hanna reduces the time for an individual analysis by 75%.in.

Winemakers add sulfur dioxide (SO2) to wine in order to inhibit bacteria and wild yeast growth and to serve as an antioxidant to prevent browning. When SO2 is added to wine, a portion of it becomes immediately bound while a remaining portion is unbound SO2. The portion that is unbound is also called free SO2 and it is responsible for protecting the wine. The bound and free SO2 together are referred to as total SO2. The relationship between the amount of SO2 added and the amount of free SO2 is complex, governed by the total amount of SO2 in the wine and the ability of compounds (e.g. sugars, aldehydes, keto acids, quinones, anthocyanin) to bind to the SO2. The exact relationship between free and bound SO2 will vary from wine to wine.

The amount of free SO2 depends on how much is added, how much was present before the addition, and how much was immediately bound. Free SO2 exists in two forms. The first form, bisulfite (HSO3-), is the predominant form but is relatively ineffective. The second form, molecular SO2, is the minor form and is responsible for protecting the wine. The amount of molecular SO2 available in wine is dependent upon the amount of free SO2 present and the pH. Typically 0.8 ppm of molecular SO2 provides adequate protection against bacteria growth and oxidation. In order to obtain this value for a wine sample that has a pH of 3.2 you would need 22 ppm of free SO2. If the pH was at 3.5 you would need double the amount of free SO2, 44 ppm.

Specifications

RangeLow Range: 1.0 to 40.0 ppm of SO 2 High Range: 30 to 400 ppm of SO 2
ResolutionLow Range: 0.1 ppm High Range: 1 ppm
Accuracy (@25ºC/77ºF)Low Range: 3% of reading or ±0.5 ppm @ 25 °C, whichever is greater High Range: 3% of reading or ±1 ppm @ 25 °C, whichever is greater
Sample Volume50 mL
MethodsRipper method
Principleequivalence point redox titration
Pump Speed10 mL/min
Stirring Speed700 rpm
mV Range-2000.0 to 2000.0 mV
mV Resolution0.1 mV
mV Accuracy (@25ºC/77ºF)±1.0 mV
Logging Dataup to 400 ( 200 titrations, 200 pH/mV readings)
ElectrodeHI3148B glass body ORP electrode with BNC connector and 1 m (3.3') cable (included)
Environment0 to 50°C (32 to 122°F) RH max 95% non-condensing
Power Supply12 VDC adapter (included)
Dimensions235 x 200 x 150 mm (9.2 x 7.9 x 5.9in.)
Weight1.9 kg (67.0 oz.)
Warranty2 years
