Hanna

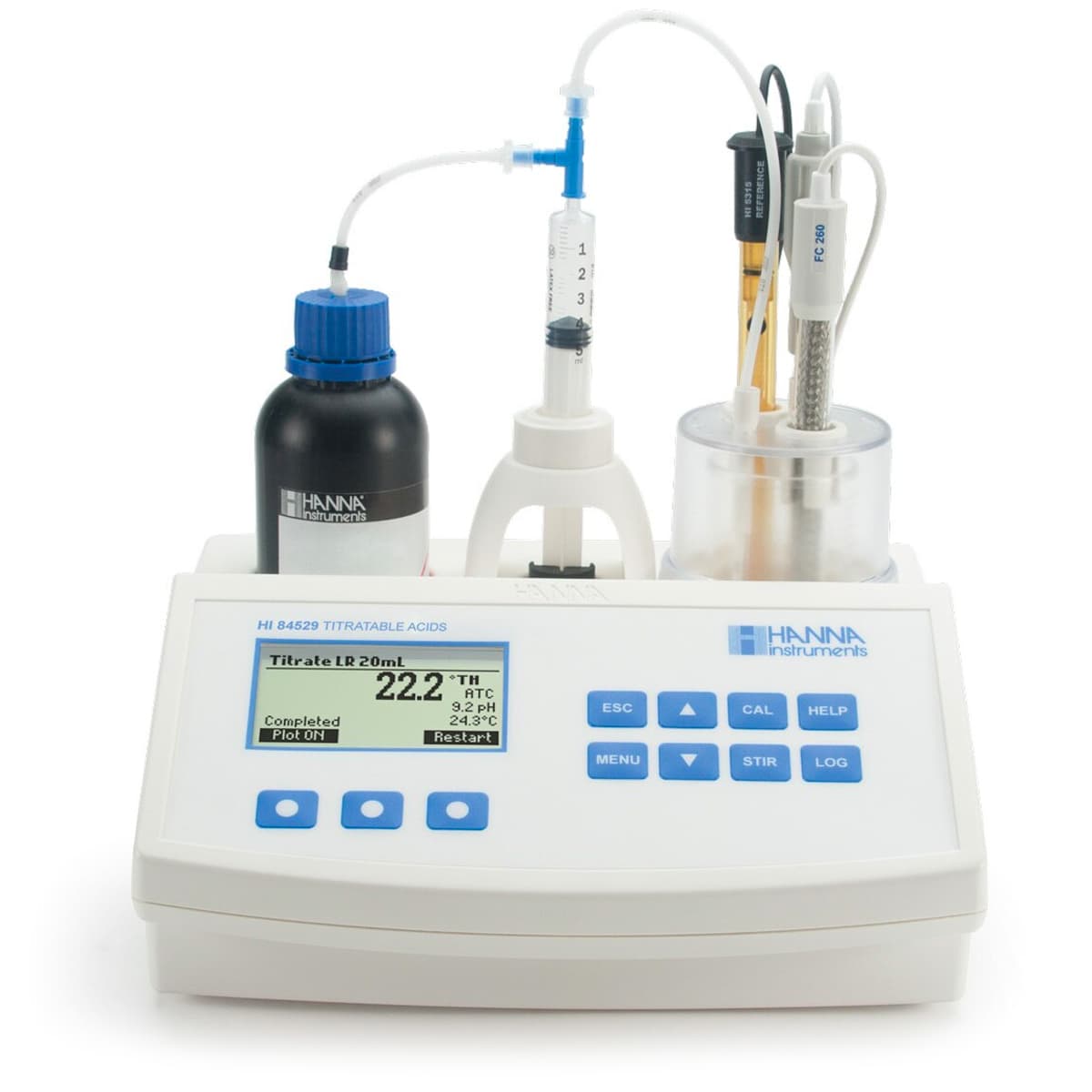

Mini Titrator for Measuring Titratable Acidity

Product code: MX-12532

The HI84529U-01 uses methods based on AOAC International and Standard Methods for the Examination of Dairy Products. Both of these methods report titratable acidity as % lactic acid and a conversion factor is used to convert the results to the other available units.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

The HI84529U-01 uses methods based on AOAC International and Standard Methods for the Examination of Dairy Products. Both of these methods report titratable acidity as % lactic acid and a conversion factor is used to convert the results to the other available units. The HI84529U-01 can be customized to meet the needs of any dairy analysis lab. Samples can be titrated by weight or volume, diluted or non-diluted (low range only) and titrated to a fixed pH endpoint that can be adjusted by the user. The HI84529U-01 offers three different methods depending on the expected range and the weight of sample used. Select low range 50 to titrate a 50 mL or 50 g undiluted sample. The other titration options are low range 20 and high range 20 to titrate 20 mL or 20 g samples that are diluted twice their volume with deionized or distilled water.

There are two fundamentally different measurements of dairy products: titratable acidity and pH. pH is a measurement of hydrogen ion concentration while titratable acidity is the neutralizing capacity of a dairy product with NaOH. An increase in acidity can be caused by bacteria formation. Monitoring acidity is a way of determining the quality and freshness of dairy products. Acidity is determined by a pH endpoint titration using NaOH (sodium hydroxide) and is defined as the consumption necessary to shift the pH value from 6.6 (corresponding to fresh milk) to a pre-determined pH value. When using phenolphthalein as an indicator, a faint pink color change occurs at pH 8.3.

Titratable acidity is expressed in a variety of units based on the titration method performed. Each method varies in sample size and strength of NaOH used for the titration.

% Lactic Acid (%l.a.): Determined by taking a 20 mL or 20 g sample and diluting with twice its volume with deionized or distilled water. The sample is then titrated with 0.1 M NaOH to a phenolphthalein endpoint.

Degree Soxhlet Henkel (°SH): Determined by titrating a 50 mL sample with 0.1 M NaOH to a phenolphthalein endpoint.

Degree Dornic (°D): Determined by titrating a 100 mL sample with N/9 NaOH to a phenolphthalein endpoint.

Degree Thrner: Determined by taking a 10 mL sample and diluting with twice its volume with deionized or distilled water. The sample is then titrated with 0.1 M NaOH to a phenolphthalein endpoint.

Knowing the relationship between sample weight or volume and strength of titrant it is possible to convert the reading obtained from one method to another. Below is a table with the factors preprogrammed in the HI84529U-01 for converting between various units of measure.

From

To

Divide By

%l.a.

Specifications

RangeLow Range: %l.a.: 0.01 to 0.20 °SH: 0.4 to 8.9 °D: 1.0 to 20.0 °Th: 1.1 to 22.2 High Range: %l.a.: 0.1 to 2.0 °SH: 4.4 to 88.9 °D: 10 to 200 °Th: 11.1 to 222.2
ResolutionLow Range: %I.a.: 0.01 °SH: 0.1 °D: 0.1 °Th: 0.1 High Range: %I.a.: 0.1 °SH: 0.1 °D: 1 °Th: 0.1
Accuracy (@25ºC/77ºF)Low Range: ± 0.01 %l.a. High Range: ± 0.1 %l.a.
Sample VolumeLR 20: 20 mL or 20 g LR 50: 50 mL or 50 g HR 20: 20 mL or 20 g
Methodsacid base titration
Principleendpoint titration
Pump Speed10 mL/min
Stirring Speed800 rpm
pH Range-2.0 to 16.0 pH -2.00 to 16.00 pH
pH Resolution0.1 pH / 0.01 pH
pH Accuracy (@25ºC/77ºF)±0.01 pH
pH Calibrationone, two, or three-point calibration, four available buffers (4.01, 7.01, 8.20, 10.01)
Temperature Compensationmanual or automatic
mV Range-2000.0 to 2000.0 mV
mV Resolution0.1 mV
mV Accuracy (@25ºC/77ºF)±1.0 mV
Temperature Range-20.0 to 120.0°C -4.0 to 248.0°F 253.2 to 393.2 K
Temperature Resolution0.1°C 0.1°F 0.1K
Temperature Accuracy (@25ºC/77ºF)±0.4°C ±0.8°F ±0.4 K
Logging Dataup to 400 ( 200 titrations, 200 pH/mV readings)
ElectrodeFC260B pH electrode with 1 m (3.3') cable (included), HI5315 reference probe with 1 m (3.3') cable (included)
Temperature ProbeHI7662-M stainless steel temperature probe with 1 m (3.3') cable (included)
Environment0 to 50°C (32 to 122°F) RH max 95% non-condensing
Power Supply12 VDC adapter (included)
Dimensions235 x 200 x 150 mm (9.2 x 7.9 x 5.9in.)
Weight1.9 kg (67.0 oz.)
Warranty2 years
