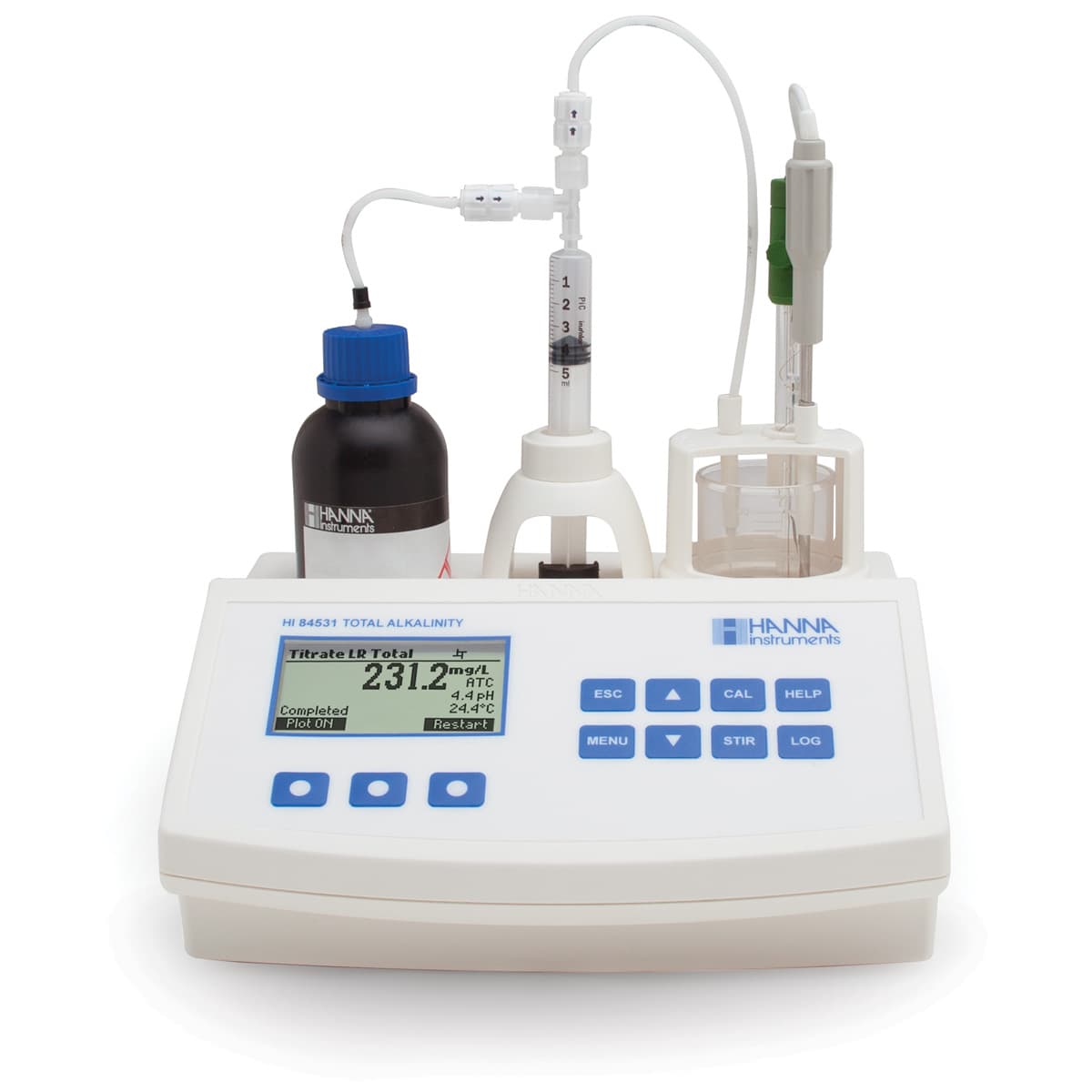

Mini Titrator for Measuring Titratable Alkalinity in Water and Wastewater
Product code: MX-12541
Alkalinity is the ability of water to neutralize acids. Total titratable alkalinity is a measure of primarily three types of alkalinities present in a water sample: hydroxides, carbonates, and bicarbonates.
Used in:Water & environment
Prices are quoted, not listed. Add this product to your request. We’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Ask about this product on LINEPrefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Alkalinity is the ability of water to neutralize acids. Total titratable alkalinity is a measure of primarily three types of alkalinities present in a water sample: hydroxides, carbonates, and bicarbonates. Alkalinity in water can be the result of contributions from common chemicals including carbonates, bicarbonates, hydroxides, phosphates, borate and organic acid salts.
The alkalinity of a water sample indicates its ability to resist pH change. The amount of alkalinity in water is mostly due to the bicarbonate/carbonate present. A low alkalinity level indicates that the water is susceptible to pH changes, while a high alkalinity level indicates that the water will be able to resist pH changes. Alkalinity can also be used to determine the corrosive capacity of water and can provide an estimation of water hardness.
Double Junction pH Electrode
The HI84531U-01 is supplied with the HI1131B refillable, double junction, combination pH electrode. By design, the HI1131B has a spherical tip for use in aqueous or liquid solutions. This versatile electrode provides a wide surface of contact with a sample and is ideal for direct measurements or acid-base titrations in the water industry.
Piston Driven Dosing Pump
The heart of the HI84531U-01 is the piston driven burette pump. This type of dosing system uses a motor in which each dose is very precisely controlled and the volume dispensed is accurately determined. The piston driven burette is controlled dynamically so that the volume of titrant being dosed is automatically adjusted based on a voltage response of the previous dose. This type of dosing speeds up the titration process by allowing for more titrant to be dosed at the start of the titration and then very small doses as the endpoint is reached.
Automatic Stirrer
The built-in stirrer is automatically maintained at a speed of 600 rpm, regardless of the viscosity of the solution being titrated.
On-Screen Features
Easy-to-Use Interface
The HI84531U-01 has an intuitive user design with clearly defined keys and a large screen that is easy to navigate. The meter has a built-in tutorial mode that, when enabled, will walk the user step by step through the titration process. A dedicated HELP key is always available to allow access to content-specific information during both calibration and titration.
Procedure Warnings
Users are warned if there is an error in procedures such as the titration exceeded the maximum volume of titrant.
Graphic Mode
This mini titrator displays in-depth data during titration, including a real-time graph of the titration curve.
Log-on-Demand
The HI84531U-01 allows for data logging of up to 400 samples: 200 titration results and 200 pH/mV readings. Data can be stored and exported to a USB drive or a PC using the USB connection.
pH/mV Meter
In addition to being an automatic titrator, the HI84531U-01 also can be used as a pH/mV meter. As a pH meter, it has many features of a professional grade benchtop including automatic calibration up to three points with four available buffers, a 0.01 pH resolution, an accuracy of ±0.01 pH, automatic temperature compensation and comprehensive GLP data.
Specifications
| Range | Low Range: 30.0 to 400.0 mg/L 0.6 to 8.0 meq/L High Range: 300 to 4000 mg/L 6.0 to 80.0 meq/L |
|---|---|
| Resolution | Low Range: 0.1 mg/L (ppm) 0.1 meq/L High Range: 1 mg/L (ppm) 0.1 meq/L |
| Accuracy (@25ºC/77ºF) | Low Range: ±1 mg/L or 3% of reading, whichever is greater High Range: ±10 mg/L or 3% of reading, whichever is greater |
| Sample Volume | 50 mL |
| Methods | acid-base titration (strong alkalinity/total alkalinity) |
| Principle | endpoint titration: 8.30 pH (phenolphthalein) / 4.50 pH (bromcresol green-methyl red) |
| Pump Speed | 10 mL/min |
| Stirring Speed | 600 rpm |
| pH Range | -2.0 to 16.0 pH -2.00 to 16.00 pH |
| pH Resolution | 0.1 pH / 0.01 pH |
| pH Accuracy (@25ºC/77ºF) | ±0.01 pH |
| pH Calibration | one, two or three-point calibration four available buffers (4.01, 7.01, 8.30, 10.01) |
| Temperature Compensation | manual or automatic |
| mV Range | -2000.0 to 2000.0 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy (@25ºC/77ºF) | ±1.0 mV |
| Temperature Range | -20.0 to 120.0°C -4.0 to 248.0°F 253.2 to 393.2 K |
| Temperature Resolution | 0.1°C 0.1°F 0.1K |
| Temperature Accuracy (@25ºC/77ºF) | ±0.4°C ±0.8°F ±0.4 K |
| Logging Data | up to 400 ( 200 titrations, 200 pH/mV readings) |
| Electrode | HI1131B glass body, refillable, with BNC connector and 1 m (3.3') cable (included) |
| Temperature Probe | HI7662-T stainless steel temperature probe with 1 m (3.3') cable (included) |
| Environment | 0 to 50°C (32 to 122°F) RH max 95% non-condensing |
| Power Supply | 12 VDC adapter (included) |
| Dimensions | 235 x 200 x 150 mm (9.2 x 7.9 x 5.9in.) |
| Weight | 1.9 kg (67.0 oz.) |
| Warranty | 2 years |
