Hanna

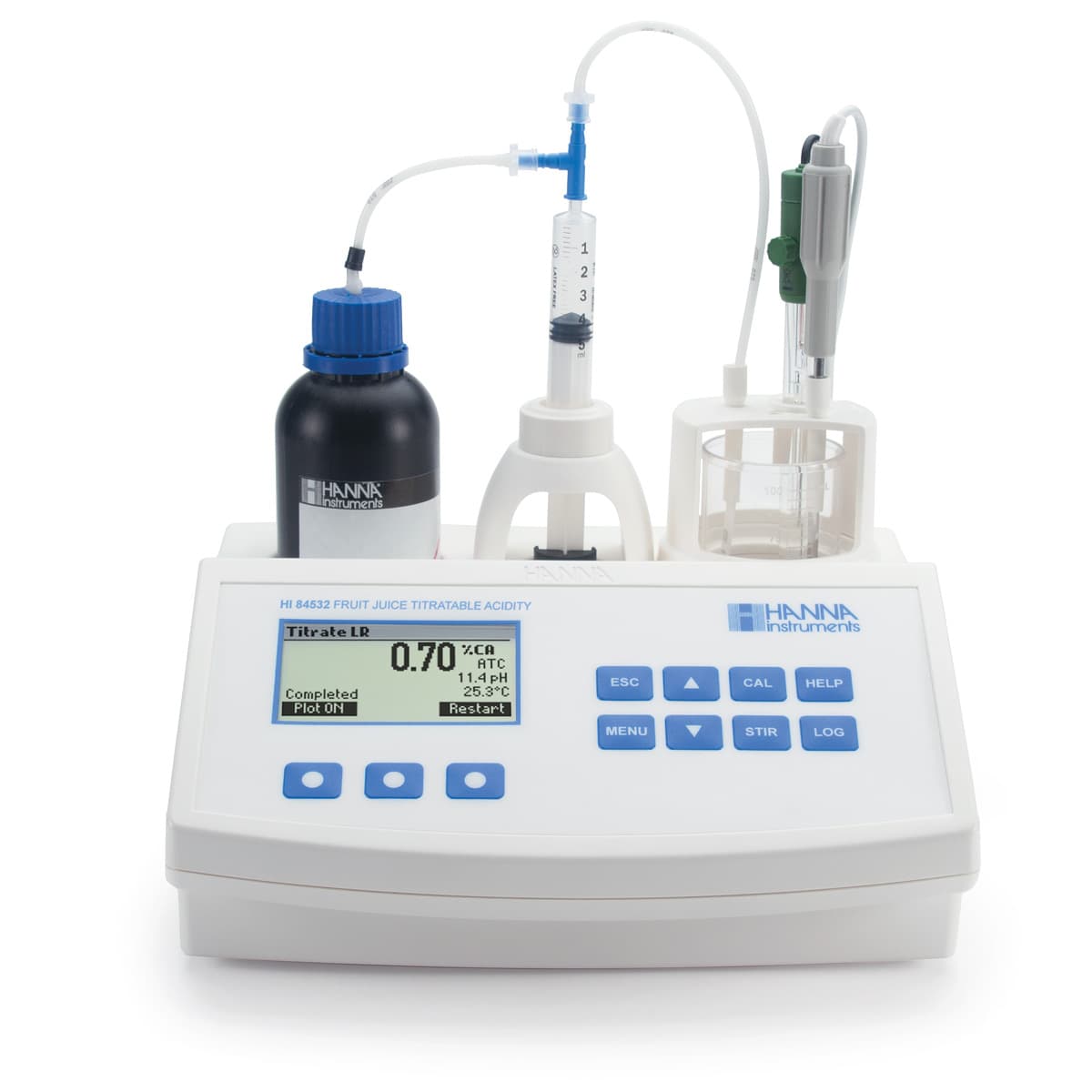

Mini Titrator for Measuring Titratable Acidity in Fruit Juice

Product code: MX-12545

Titratable acidity of fruit juices is an important parameter in determining fruit maturity and sour taste in citrus fruits. The maturity of fruit is one of the most important factors to determine how well fruit will store and how it will taste.

Used in:Food & beverage

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Titratable acidity of fruit juices is an important parameter in determining fruit maturity and sour taste in citrus fruits. The maturity of fruit is one of the most important factors to determine how well fruit will store and how it will taste. For some fruits, governmental quality standards (based on titratable acidity or the ratio of total soluble solids (°Brix) to titratable acidity) are in place to protect consumers. Immature fruit will normally have a low sugar to acid ratio as compared to mature fruit that will have a high sugar to acid ratio.

The HI84532U-01 measures the concentration of titratable hydrogen ions contained in fruit juice samples by neutralization with a strong base solution to a fixed pH. This value includes all the substances of an acidic nature in the fruit juice including free hydrogen ions, organic acids, and acid salts. Titratable fruit acidity is expressed as g/100 mL of the predominant acid. The predominant acids in fruit depend on the type of fruit being tested and include citric acid, tartaric acid, and malic acid.

Fruits, Juices

Titratable acidity (g/100 mL)

Specifications

RangeLow Range: g/100 mL as citric acid: 0.10 to 2.00% CA g/100 mL as tartaric acid: 0.11 to 2.35% TA g/100 mL as malic acid: 0.10 to 2.09% MA High Range: g/100 mL as citric acid: 1.00 to 10.00% CA g/100 mL as tartaric acid: 1.17 to 11.72% TA g/100 mLas malic acid: 1.05 to 10.47% MA
Resolution0.01%
Accuracy (@25ºC/77ºF)±0.02% or 3% of reading CA whichever is greater
Sample Volume5 mL
Methodsacid base titration
Principleendpoint titration: 8.1 pH
Pump Speed10 mL/min
Stirring Speed600 rpm
pH Range-2.0 to 16.0 pH -2.00 to 16.00 pH
pH Resolution0.1 pH / 0.01 pH
pH Accuracy (@25ºC/77ºF)±0.01 pH
pH Calibrationone, two, or three-point calibration, four available buffers (4.01, 7.01, 8.20, 10.01)
Temperature Compensationmanual or automatic
mV Range-2000.0 to 2000.0 mV
mV Resolution0.1 mV
mV Accuracy (@25ºC/77ºF)±1.0 mV
Temperature Range-20.0 to 120.0°C -4.0 to 248.0°F 253.2 to 393.2 K
Temperature Resolution0.1°C 0.1°F 0.1K
Temperature Accuracy (@25ºC/77ºF)±0.4°C ±0.8°F ±0.4 K
Logging Dataup to 400 ( 200 titrations, 200 pH/mV readings)
ElectrodeHI1131B glass body, refillable, with BNC connector and 1 m (3.3') cable (included)
Temperature ProbeHI7662-T stainless steel temperature probe with 1 m (3.3') cable (included)
Environment0 to 50°C (32 to 122°F) RH max 95% non-condensing
Power Supply12 VDC adapter (included)
Dimensions235 x 200 x 150 mm (9.2 x 7.9 x 5.9in.)
Weight1.9 kg (67.0 oz.)
Warranty2 years
