Hanna

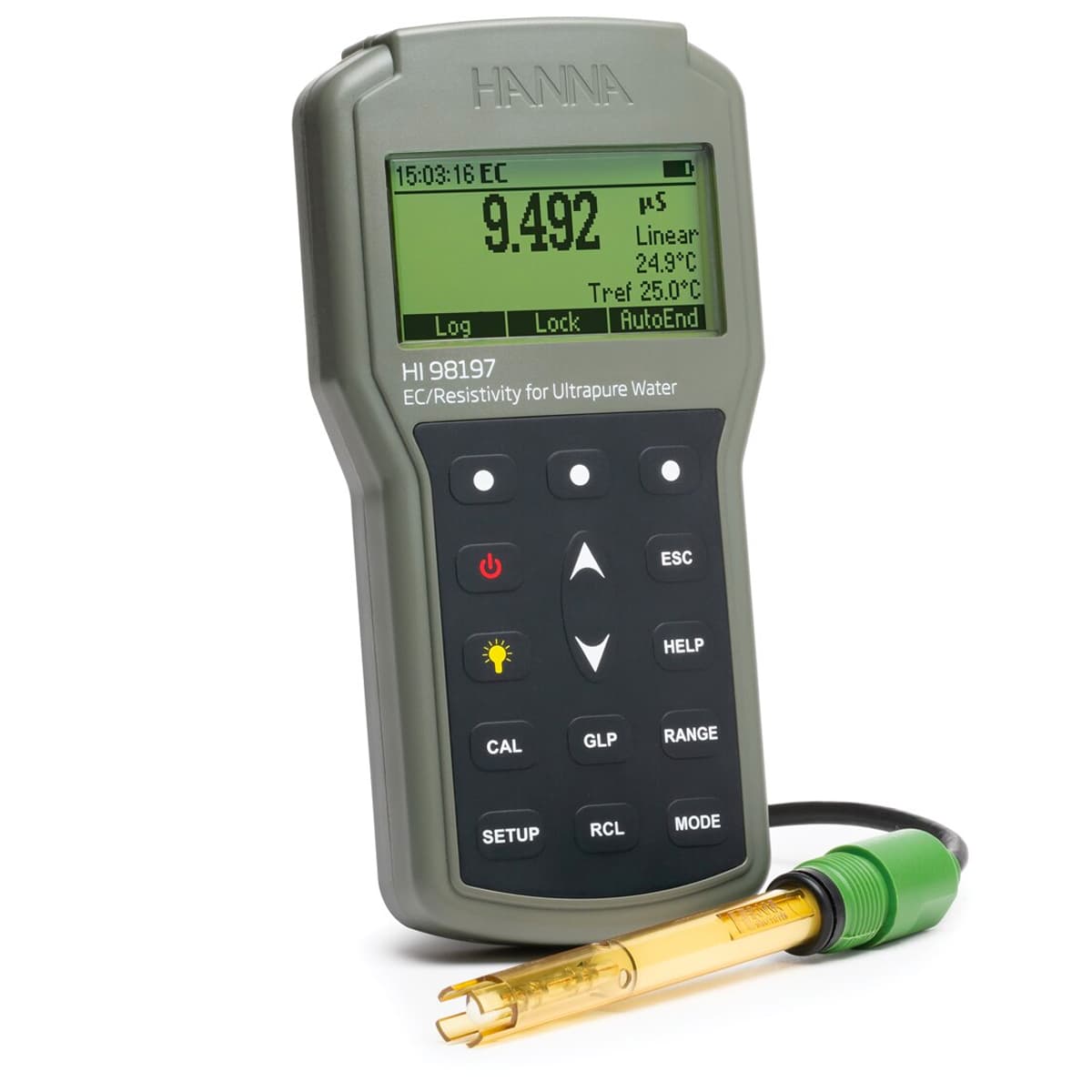

Conductivity Meter for Ultrapure Water – HI98197

Product code: MX-12875

The HI98197 is supplied with a specialized HI763123 four-ring conductivity probe that not only allows for a 0.001 µS/cm resolution measurement but also has screw type threads for insertion into the HI605453 AISI 316 stainless steel flow cell.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

The HI98197 is supplied with a specialized HI763123 four-ring conductivity probe that not only allows for a 0.001 µS/cm resolution measurement but also has screw type threads for insertion into the HI605453 AISI 316 stainless steel flow cell. The HI763123 has a built-in temperature sensor and a adjustable temperature coefficient for accurate readings that cover a complete range with a single sensor. The four-ring technology also eliminates the polarization effect that is common with standard two pole versions. The HI763123 conductivity probe connects to the meter with a unique quick connect waterproof DIN connector allowing for a secure attachment without a threaded connection that is also easy to remove. High purity water used in power generation, semiconductor manufacturing and other industries can be difficult to measure can be difficult to measure due the ability of carbon dioxide (CO2) to diffuse into water and forming carbonic acid (H2CO3). The carbonic acid will dissociate into hydrogen ions (H+) and bicarbonate ions (HCO3-). These ions will increase the conductivity and decrease the resistivity of the water. In order to measure high purity water accurately it is necessary to perform a continuous flow measurement. The HI98197 uses the HI763123 four ring probe with a threaded connection that is screwed into a stainless steel body flow cell. The flow cell is connected to a water source to determine the conductivity or resistivity whichever is preferred. The HI98197 is an ideal meter for monitoring the mixed bed resin or equivalent system that produces high purity water of 18.2 Mω * cm at 25 °C.

Specifications

EC Range0.000 to 9.999 μS/cm; 10.00 to 99.99 μS/cm; 100.0 to 999.9 μS/cm; 1.000 to 9.999 mS/cm; 10.00 to 99.99 mS/cm; 100.0 to 1000.0 mS/cm (actual conductivity; temperature compensated to 400 mS/cm)
EC Resolution0.001 μS/cm; 0.01 μS/cm; 0.1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm
EC Accuracy±1% of reading (±0.01 μS/cm or 1 digit, whichever is greater)
EC Calibrationautomatic up to five points with seven memorized standards (0.00 μS/cm, 84.0 μS/cm, 1.413 mS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm)
TDS Range0.00 to 99.99 ppm; 100.0 to 999.9 ppm; 1.000 to 9.999 ppt (g/L); 10.00 to 99.99 ppt (g/L); 100.0 to 400.0 ppt (g/L)
TDS Resolution0.01 ppm; 0.1 ppm; 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L)
TDS Accuracy±1% of reading (±0.05 mg/L (ppm) or 1 digit, whichever is greater)
TDS Calibrationbased on conductivity calibration
EC/TDS Temperature CompensationnoTC, Linear (-20 to 120 °C; -4 to 248°F), Non Linear – ISO/DIN 7888 (-0 to 36 °C; 32 to 96.8°F)
Temperature Correction Coefficient0.00 to 10.00 %/°C
EC to TDS Conversion Factor0.40 to 1.00
Reference Temperature15°C, 20°C and 25°C
EC/TDS Multi-range Measurement Modesautorange, autoend, lock and fixed range
Salinity (% NaCl) Range0.0 to 400.0 %
Salinity (% NaCl) Resolution0.1 %
Salinity (% NaCl) Accuracy±1% of reading
Salinity (% NaCl) CalibrationMax. one point only in % range (with HI7037 standard)
Salinity (PSU) Range0.00 to 42.00 (PSU)
Salinity (PSU) Resolution0.01 PSU
Salinity (PSU) Accuracy±1% of reading
Salinity (PSU) Calibrationbased on conductivity calibration
Salinity Range0.00 to 80.00 (ppt)
Salinity Resolution (ppt)0.01 ppt
Salinity Accuracy (ppt)±1% of reading
Salinity Calibration (ppt)based on conductivity calibration
Resistivity Range1.0 to 99.9 Ω•cm; 100 to 999 Ω•cm; 1.00 to 9.99 KΩ•cm; 10.0 to 99.9 KΩ•cm; 100 to 999 KΩ•cm; 1.00 to 9.99 MΩ•cm; 10.0 to 100.0 MΩ•c
Resistivity Resolution0.1 Ω•cm; 1 Ω•cm; 0.01 KΩ•cm; 0.1 KΩ•cm; 1 KΩ•cm; 0.01 MΩ•cm; 0.1 MΩ•cm
Resistivity Accuracy±1% of reading (±10 Ω or 1 digit, whichever is greater)
EC/TDS ProbeHI763123 platinum, four ring conductivity/TDS probe with internal temperature sensor and 1 m cable (included)
Logging TypeLog-on-demand
Logging Memoryup to 10
Connectivityopto-isolated USB with optional HI 92000 software and micro USB cable
Automatic Shut-Offuser selectable
Battery Type/Life1.5V AA batteries (4) / approximately 100 hours of continuous use (without backlight), 25 hours with backlight
Environment0 to 50°C (32 to 122°F); RH 100% (IP67)
Dimensions185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4”)
Weight400 g (14.2 oz.)
