Hanna

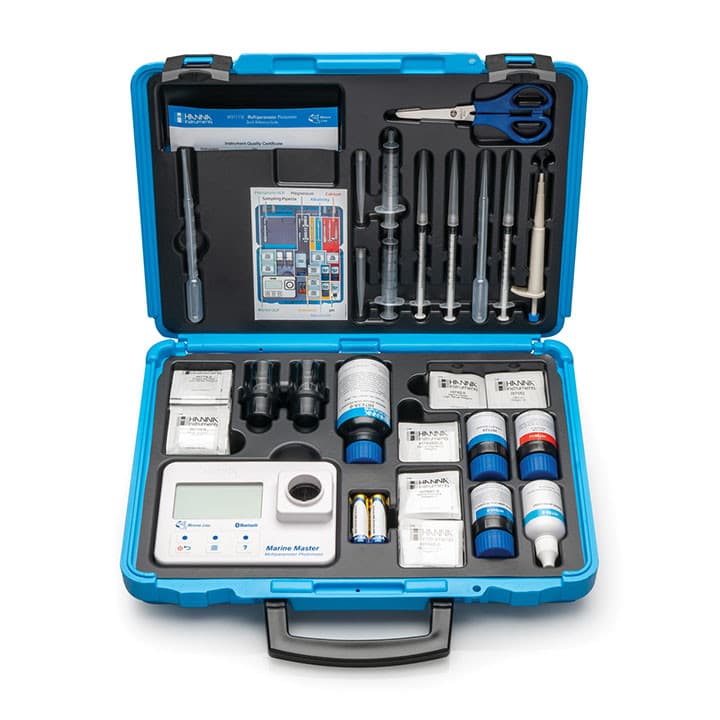

Marine Master Waterproof Wireless Multiparameter Photometer

Product code: MX-12976

The photometer has an advanced optical system that uses a Light Emitting Diode and a narrow band interference filter for accurate, repeatable readings. The optical system is sealed from outside dust, dirt, and water.

Used in:Water & environment

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

The photometer has an advanced optical system that uses a Light Emitting Diode and a narrow band interference filter for accurate, repeatable readings. The optical system is sealed from outside dust, dirt, and water. The meter uses an exclusive positive-locking system to ensure that the cuvettes are placed into the holder in the same position every time. With the CAL Check™ functionality, users are able to validate the performance of the instrument at any time. CAL Check™ cuvettes are certified against NIST-traceable reference instrument(s). The built-in tutorial mode guides users step-by-step through the measurement process. The tutorial mode includes all steps required for sample preparation, the required reagents and quantities. Suitable for field or bench measurements, the photometer features:

Test capabilities for 9 parameters using 1 device

NEW! Comes with free Hanna Lab app, connects via Bluetooth for easy data tracking, exporting and analysis Sophisticated optical system Meter validation using certified CAL Check™ cuvettes Tutorial mode guides the user step-by-step Option to assign locations to logged readings Auto logging Waterproof IP67. The case and device both float on water.

CAL Check TM Validation Hanna’s exclusive CAL Check TM feature provides a stress-free, straightforward way to ensure your photometer is working properly. Simply insert the certified CAL Check TM standards and let your meter guide you through validation. If your photometer is out of specification for any reason, simply calibrate to your standard.

On-Screen Tutorials The built-in tutorial mode guides users step-by-step through the measurement process. It includes all steps required for sample preparation, the required reagents, and quantities. Tutorial mode can be enabled or disabled from the setup menu.

Tank Selection and Multiple Reading Locations Management Users can edit up to 25 different tanks, correlate reading location to any location from the list so that logged data is linked to its reading location.

Data Logging Missed a measurement? No need to worry because your photometer will automatically log the last 200 measurements. The results can be viewed instantly using the Log Recall Menu.

Advanced Optical System A Light Emitting Diode (LED) provides more light while using less power and a narrow band interference filter results in more accurate and repeatable readings.

Large Cuvette Size The 25-mm path length cuvette allows light to pass though more of the sample ensuring accurate measurements even in low-absorbance samples.

Positive Locking System Cuvettes are placed into the holder in the same position every time by ensuring that the notch on the cap is positioned securely in the cell’s groove.

Portable Design Made to fit comfortably in your hand for on-the-go testing or sit on a table for benchtop use, a backlit LCD display provides at-a-glance readings from any angle, day or night. The supplied AA batteries provide life for more than 800 measurements.

Parameters

Range Resolution Accuracy at 25 °C (77 °F) LED Description

pH 6.3 to 8.6 pH 0.1 pH ±0.2 pH of reading 525 nm Colorimetric Adaptation of Phenol Red Method.

Alkalinity 0.0 to 20.0 dKH 0.1 dKH ±0.3 dKH ±5 % of reading 610 nm Colorimetric Method. Reaction causes a distinctive range of colors from yellow to greenish blue to develop.

Ammonia 0.00 to 2.50 ppm(as NH 3 ) 0.01 ppm ±0.05 ppm ±5% of reading 610 nm Adaptation of the Salicylate Method. The Reaction between Ammonia and Ammonium and the reagent causes a blue‑green tint in the sample.

Calcium 200 to 600 ppm 1 ppm ±6 % of reading 610 nm Adaptation of Zincon Method.

Specifications

Alkalinity Marine Range0.0 to 20.0 dKH
Alkalinity Marine Resolution0.1 dKH
Alkalinity Marine Accuracy±0.3 dKH ±5% of reading at 25 °C
Alkalinity Marine MethodColorimetric Method
Calcium Marine Range200 to 600 ppm
Calcium Marine Resolution1 ppm
Calcium Marine Accuracy±6 % of reading at 25 °C
Calcium Marine Methodadaptation of the Zincon Method
Magnesium Range1000 to 1800 ppm (as Mg²+)
Magnesium Resolution5 ppm
Magnesium Accuracy±5% of reading at 25 °C
Magnesium MethodAdaptation of the Colorimetric EDTA Method using calmagite indicator
pH Range6.3 to 8.6 pH
pH Resolution0.1 pH
pH Accuracy±0.2 pH of reading at 25 °C
pH MethodColorimetric adaptation of the Phenol Red Method
