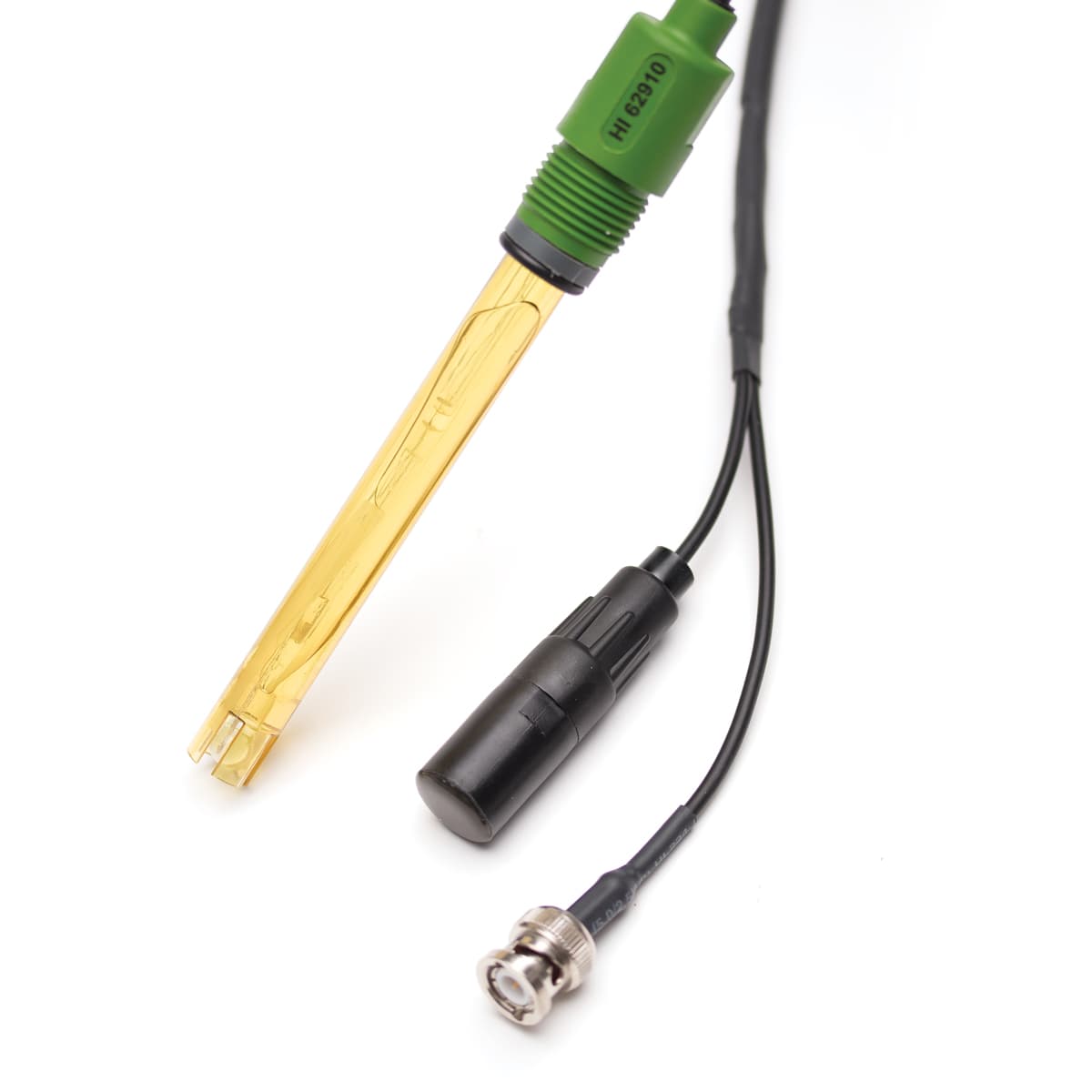

AmpHel® pH Electrode with Replaceable Battery - High Temperature
Product code: MX-11230
Provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Amplified pH electrode
Provides a stable signal for industrial monitoring as well as a major saving in low noise coaxial cable costs
PTFE junction
The electrode has a unique clog resistant junction that enhances both probe life and accuracy.
Glass body
Glass body electrodes are easier to clean, can withstand high pressure and high-temperature applications, and offers high resistance to aggressive chemicals.
BNC connector
Allows for quick and easy connection to any pH/ORP meter or transmitter.
High-temperature glass formulation
High-temperature glass can stand up to the effects of elevated temperatures leading to longer probe life.
AmpHel® replaceable battery
No longer necessary to throw away an electrode when the battery is exhausted for longer electrode life.
Specifications
| Body | Glass |
|---|---|
| Junction | OTFE |
| Glass Type | HT (0 to 100°C) |
| Electrolyte | Polymer |
| Matching Pin | No |
| Amplifier | Yes |
| Temperature Sensor | No |
| Max Pressure | 3 bar (43.5 psi) |
| Connector | BNC |
| Cable | 5m |
| Length | 148.5mm |
| Warranty | 6 months |
