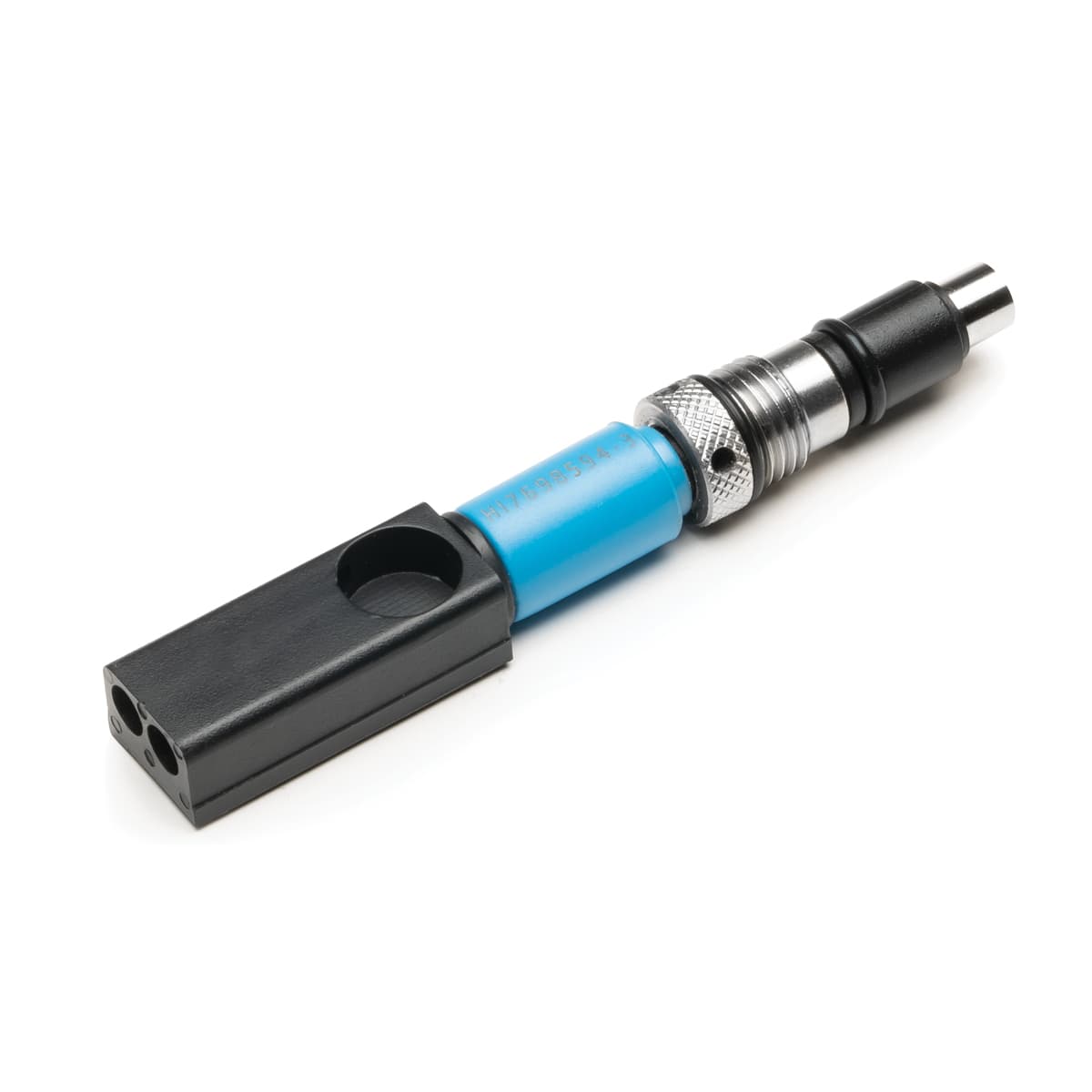

Conductivity Sensor for the HI98594 Multiparameter Portable Meter

Product code: MX-11391

The HI7698594-3 is a replaceable 4-ring electrode conductivity sensor for use with HI98594. The sensor body is constructed of durable ABS material and contains AISI 316 stainless steel electrodes that are not subject to polarization or surface coating effects.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

The HI7698594-3 is a replaceable 4-ring electrode conductivity sensor for use with HI98594. The sensor body is constructed of durable ABS material and contains AISI 316 stainless steel electrodes that are not subject to polarization or surface coating effects. Each module is color coded for easy installation and integration with the probe.

Specifications

Measurement unitµS/cm, mS/cm
Measure range0 to 200.0 mS/cm 0.0 to 400 mS/cm (absolute
Color codeBlue
Operational temperature−5.0 to 50.0 °C 23.0 to 122.0 °F
MaterialsElectrodes Stainless steel (AISI 316) Body ABS and Epoxy
Immersion depth20 m (66')
Dimensions135×35 mm
