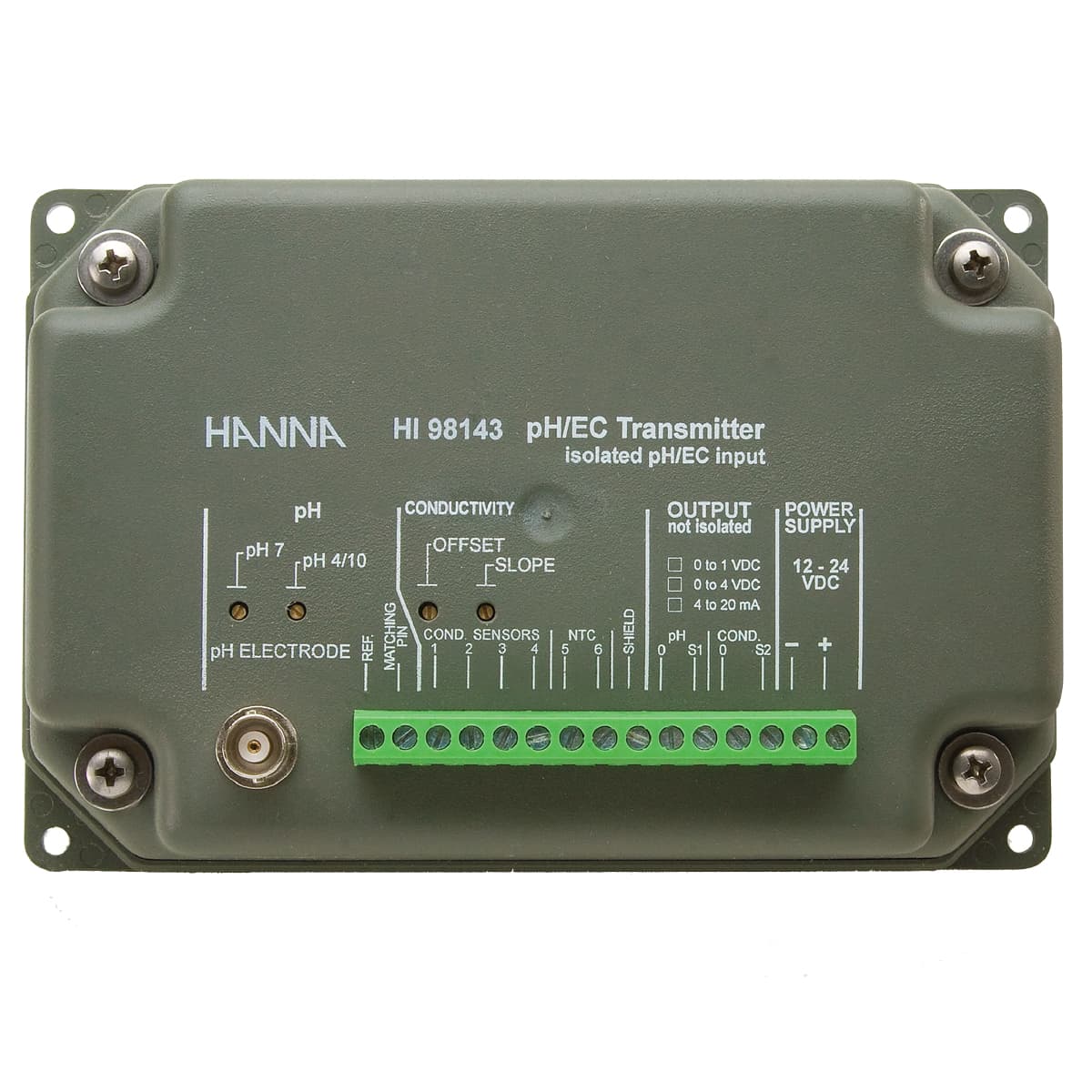

HI98143-04 EC & pH Transmitter (0–4 V output)
Product code: MX-11463
Die HI 98143 Serie wurde entwickelt, um Signale direkt von einer pH-Elektrode und einer Leitfähigkeitssonde gleichzeitig zu verarbeiten. Direkter Anschluss der Sonden an die Sender sorgen für eine positive elektrische Verbindung ohne Signalverlust. Dieser Sender ist ideal für Remote-Prozess Control-Anwendungen.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Direct Connection Direct connection of the probes to the transmitter assures a positive electrical connection with no signal loss. This transmitter is ideal for remote process control applications. Output Signals Four models are available, transmitting a 0-1 V, 0-4 V or 4-20 mA signal. The output signals are proportional to the input signals but independent of changes in load or cable capacitance. Automatic Temperature Compensation Compensation for the effects of temperature for EC measurements is performed by the transmitters' Automatic Temperature Compensation circuitry. Connectivity The transmitter can be connected to any pH or conductivity controller, recorder, PC or any data monitoring device that accepts 0 to 1 V, 0 to 4 V or 4 to 20 mA input.
Specifications
| Messbereich | 0 to 14 pH; 0 to 10 mS/cm |
|---|---|
| Auflösung | ±0.5% f.s. pH; ±2% f.s. EC |
| Genauigkeit | ± 2% der Anzeige (ohne Sondenfehler) |
| Kalibrierung | Manuell, zwei Punkt, mit Offset und Steilheit Trimmer pH: mit Offset und Steilheit Trimmer |
| Korrektur Temperatur | Fest oder Auto von 5 bis 60 °C, mit β=2%/°C |
| Sonde(n) | HI 1001,(nicht enthalten) / HI 3001 (nicht enthalten) |
| Aufnahme Ausgang | 0-4 V |
| Gehäuse | IPS4 |
| Stromversorgung | 12 – 24 VDC |
| LCD Display | Nein |
| Umwelt | 0 bis 50°C,Max Luftfeuchte 95% |
| Masse | 165x110x71mm |
| Gewicht | 1 kg |
