Hanna

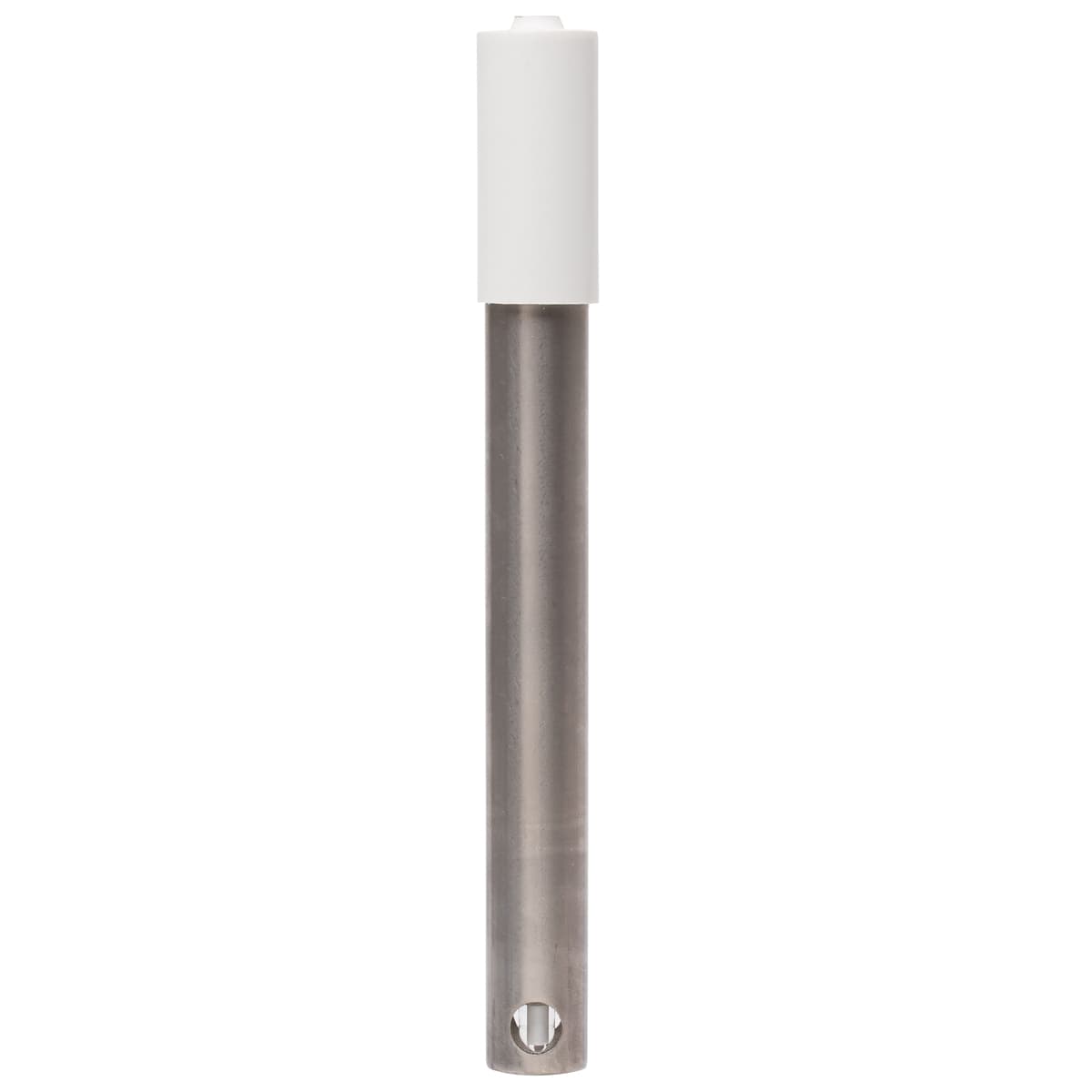

pH Electrode for Beer Analysis

Product code: MX-11504

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

Used in:Food & beverage

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

The FC214D uses high temperature (HT) glass, spherical bulb, titanium body, and cloth junction with gel electrolyte.

High-Temperature Glass Formulation

The measurement of pH at very high temperatures is detrimental to the sensitive glass bulb and will shorten the life of it. A pH electrode with general-purpose (GP) glass will have a resistance of 100 megaohms at 25°C while the resistance of HT glass is around 400 megaohms at 25°C. As the FC214D is used at elevated temperatures, such as in the wort or mash, the resistance decreases and approaches the resistance of GP glass. The FC214D is suitable to use with samples that measure from 0 to 80°C.

Titanium Body

A pH measurement is a very sensitive voltage measurement that is susceptible to interference from electrical noise and humidity.

To overcome these issues a titanium body serves as a matching pin. A matching pin is a differential measurement technique used to eliminate electrical noise in the measurement system. The titanium body, being made of metal, is virtually unbreakable and

offers additional protection from accidental breakage.

Cloth Junction

Every pH electrode has a junction. They can be made from a variety of material including ceramic, PTFE, and a fiber wick. The fiber wick is also known as a cloth junction and is often used on electrodes with gelled electrolytes. The advantage of the cloth junction is that it can be extracted from the probe exposing a fresh surface. This is very important since one of the major contributors to unstable measurements is a clogged junction. This is likely to occur when measuring the pH of mash that has a high solids content. Having the ability to pull out a small portion (?in.) of the junction will clear any clogging resulting in an increased life of the pH electrode.

DIN Connector

The FC214D uses a DIN connector. This type of connector is proprietary to the meter they are to be used with. The FC214D is the replacement electrode for the HI99151. Other types of connectors include BNC, screw type, T-type, and 3.5mm.

Specifications

Referencesingle, Ag/AgCl
Junction / Flow Ratecloth
Electrolytegel
Max Pressure3.0 bar
RangepH: 0 to 12
Recommended Operating Temperature-5 to 70°C (23 to 158°F) - GP
Tip / Shapeflat
Diameter14 mm
Body Length105 mm/ 145.5 mm
Temperature Sensoryes
Matching Pinno
Amplifieryes
Body Materialtitanium with HT glass sensor
Cable7-pole 1 m (3.3')
Recommended Usebeer, mash, wort
ConnectionDIN
