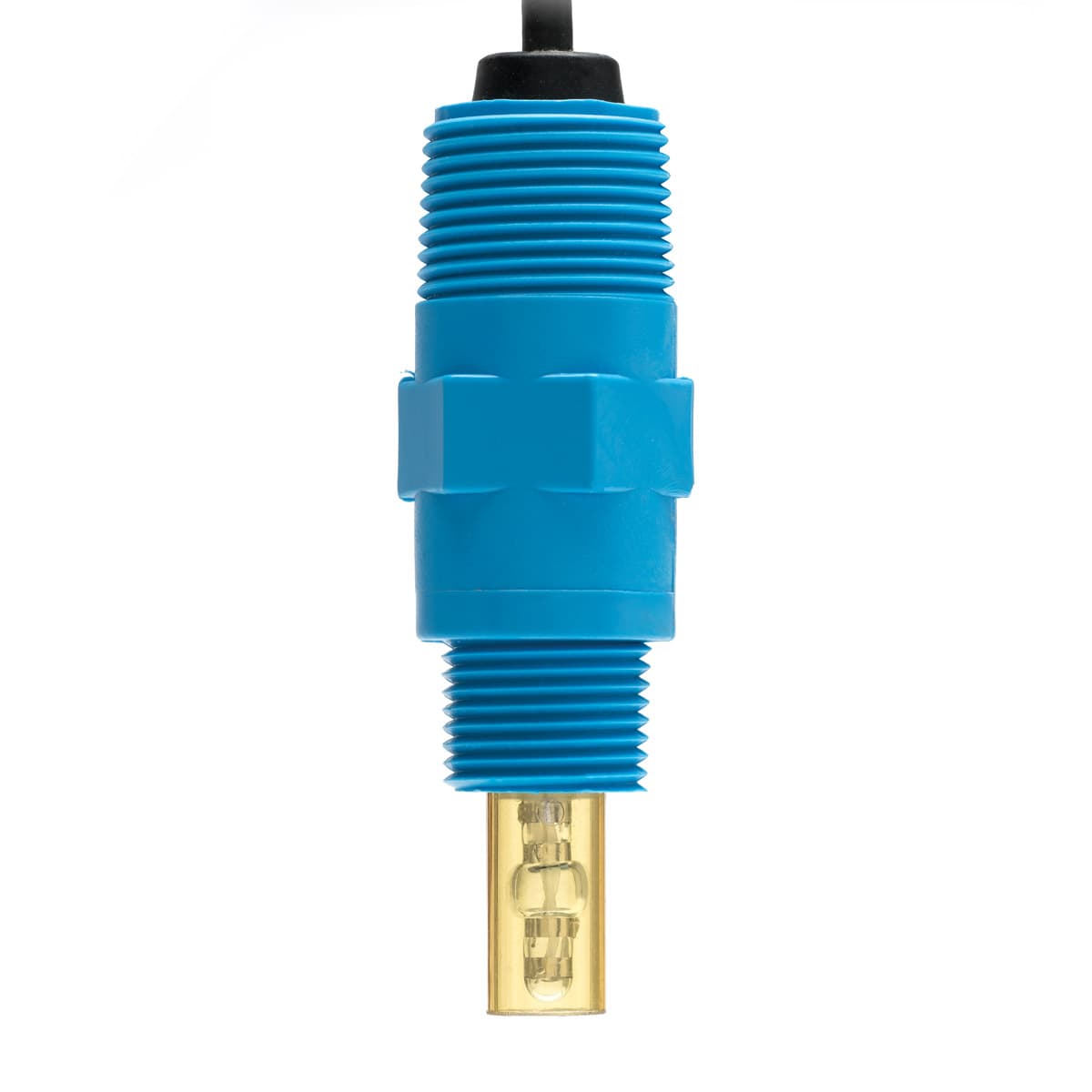

Flow-thru Conductivity Probe

Product code: MX-11527

The HI3001 is a potentiometric sensor, utilizing four-ring technology to achieve accurate EC measurements. The four-ring technology allows for a wide range of measurement with a single probe as compared to amperometric two-pole probes that have a limited range and can suffer from polarization effects.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Four-Ring Probe

The HI3001 is a potentiometric sensor, utilizing four-ring technology to achieve accurate EC measurements. The four-ring technology allows for a wide range of measurement with a single probe as compared to amperometric two-pole probes that have a limited range and can suffer from polarization effects. The platinum sensors are protected by a PEI cover that can easily be removed for quick maintenance.

Internal Temperature Sensor

The integrated NTC temperature sensor of the HI3001 probe is crucial for accurate EC measurements. Since the temperature of a solution can drastically change the amount of conductance, obtaining a fast and stable temperature measurement allows for an accurately compensated EC reading.

Threaded Connection

The ½in. front NPT threaded connection of the HI3001 allows for flow-thru mounting, while the ¾in. back threads allow for submersion or pipe mounting without the need for additional hardware.

PVDF Body

Polyvinylidene fluoride (PVDF) is a plastic that is resistant to most chemicals and solvents. It has high abrasion resistance, mechanical strength, and resistance to ultraviolet and nuclear radiation. PVDF is also resistant to fungal growth.

Multiple Cable Lengths

The HI3001D models feature a DIN connector for use with Hanna's HI99XX series of wall-mounted controllers, along with varying lengths of cable. HI3001D comes with a DIN connector and 3 meters (9.9') of cable attached. HI3001D/5 comes with a DIN connector and 5 meters (16.4') of cable attached. HI3001D/10 comes with a DIN connector and 10 meters (32.8') of cable attached.

PEI Protective Cover

The protective cover is made of PEI and can be removed for quick maintenance. These probes can withstand temperatures up to 80°C (176°F) and 6 bars (87 psi) of pressure.
