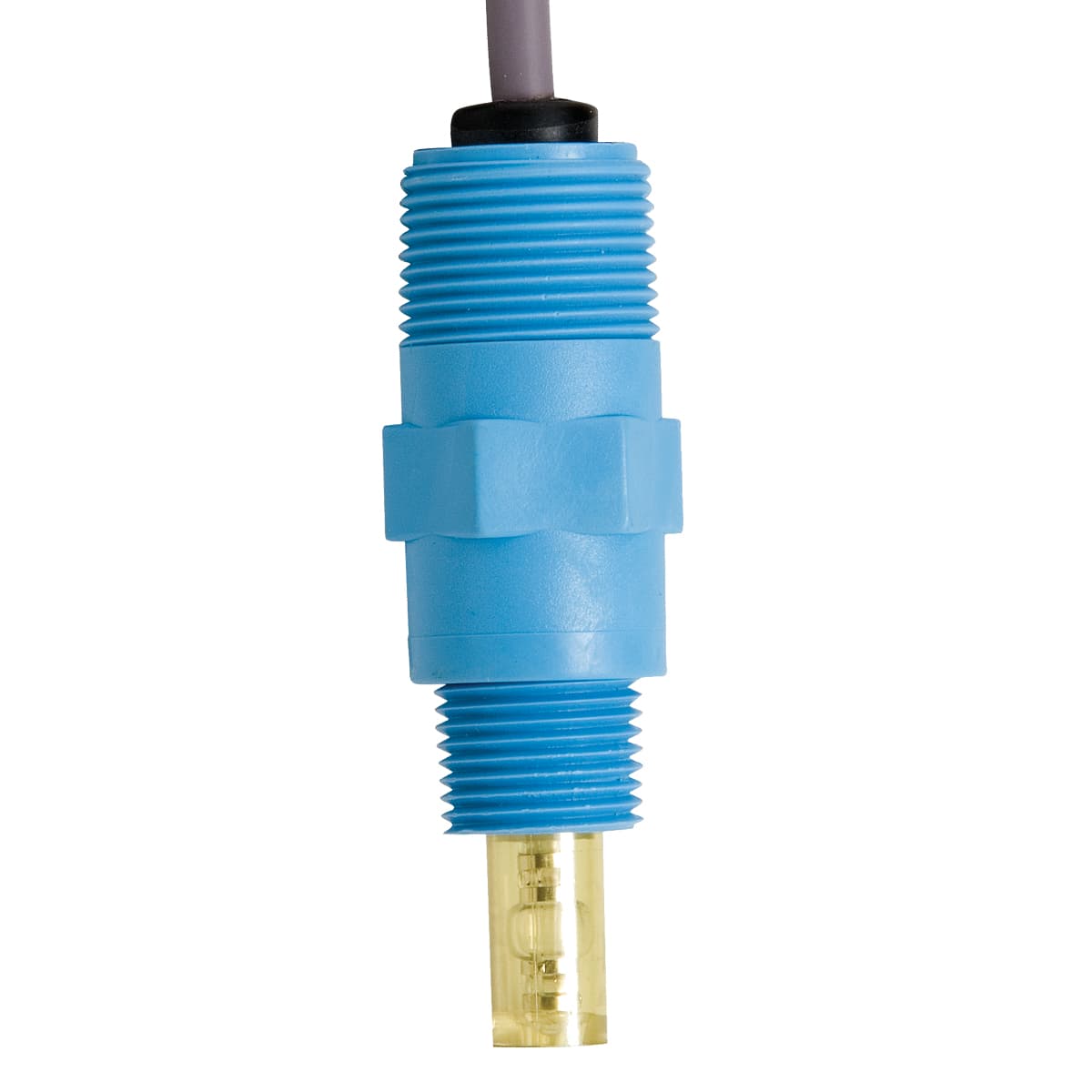

Flow-thru Conductivity Probe - 3m Cable
Product code: MX-11528
Designed for continuous flow-thru monitoring in industrial applications.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Flow-thru conductivity probe
Designed for continuous flow-thru monitoring in industrial applications.
Four-ring method
Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes.
PVDF body
PVDF offers characterized by high thermal stability and excellent chemical resistance.
No temperature sensor
Cannot provide compensated measurements.
No connector
Standard ½in. external thread on the front for flow-thru mounting and ¾in. threads on the back for submersion or pipe mounting.
PEI protective cover
Can be removed for quick maintenance.
Specifications
| Body | PEI, PVDF |
|---|---|
| Glass Type | (0 to 80°C/ 32 to 176°F) |
| Matching Pin | No |
| Amplifier | No |
| Max Pressure | 6 bar (87 psi) |
| Cable | 3m |
| Length | 89mm |
| Warranty | 6 months |
