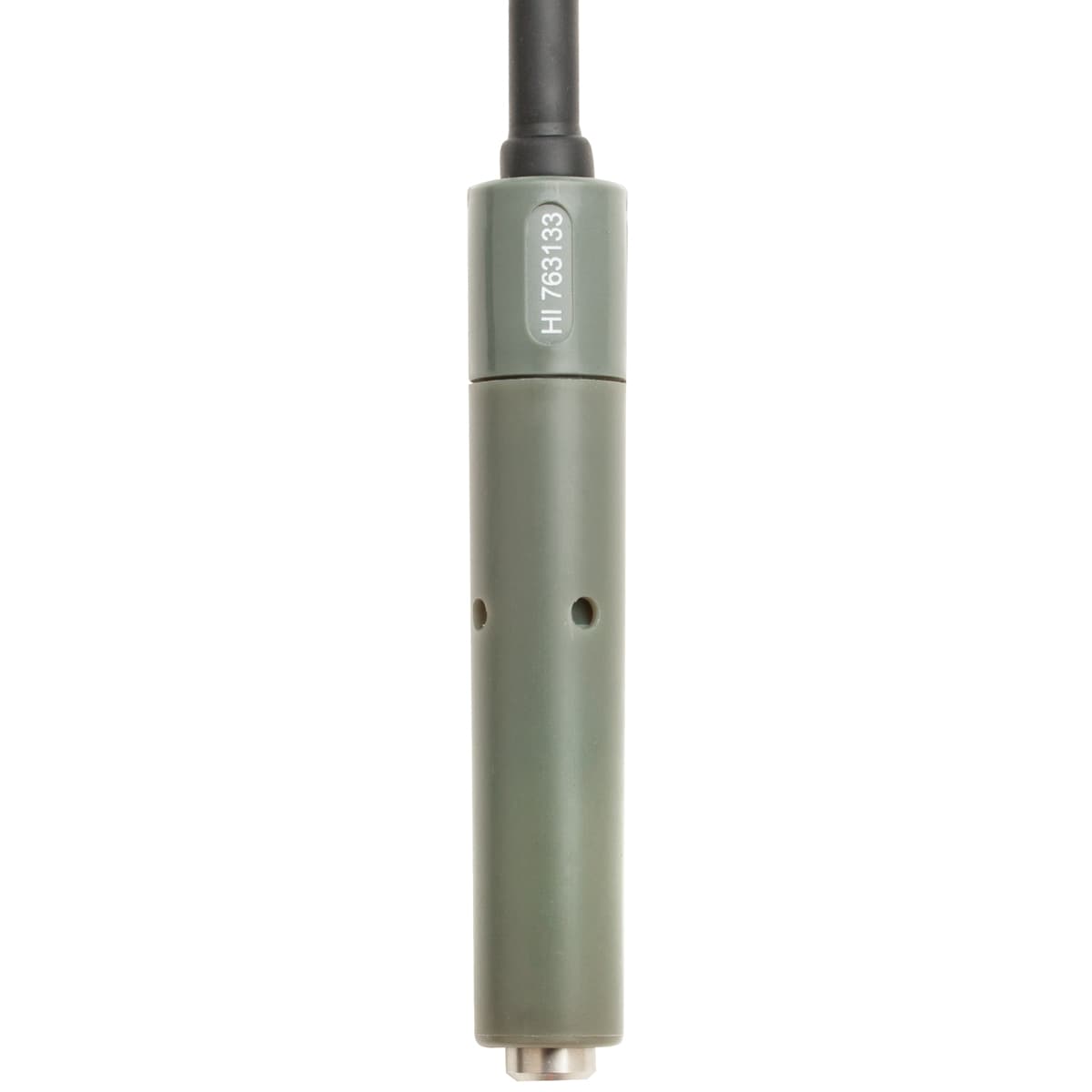

Four-ring Stainless Steel Conductivity Probe for HI98192
Product code: MX-11552
HI763133 is a four-ring conductivity probe with a built-in temperature sensor. This technology allows for accurate readings that cover a complete range with a single sensor. The four-ring technology also eliminates the polarization effect that is common with standard two pole versions.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
HI763133 is a four-ring conductivity probe with a built-in temperature sensor. This technology allows for accurate readings that cover a complete range with a single sensor. The four-ring technology also eliminates the polarization effect that is common with standard two pole versions.
The HI763133 conductivity probe connects to the meter with a unique quick connect waterproof DIN connector allowing for a secure attachment without a threaded connection that is also easy to remove.
Specifications
| Range | 0 to 400 mS/cm (shows values up to 1000 mS/cm actual conductivity)** 0.00 to 9.999 µS/cm* 10.00 to 99.99 µS/cm 100.0 to 999.9 µS/cm 1.000 to 9.999 mS/cm 10.00 to 99.99 mS/cm 100.0 to 1000.0 mS/cm (autoranging) |
|---|---|
| Recommended Operating Temperature | NoTC, linear (-20 to 120˚C (-4 to 248˚F)), non linear (0 to 36˚C (32 to 98.6˚F)) ISO/DIS 7888 std |
| Tip / Shape | 4-ring probe |
| Temperature Sensor | yes |
| Body Material | AISI 316 stainless steel |
| Cable | 1.5 m (4.9') |
| Connection | Quick connect DIN |
| Special Note | * The 0.001 μS/cm EC range and 0.1 MΩ• cm Resistivity range are not available with the 1.5 m cable probe. |
