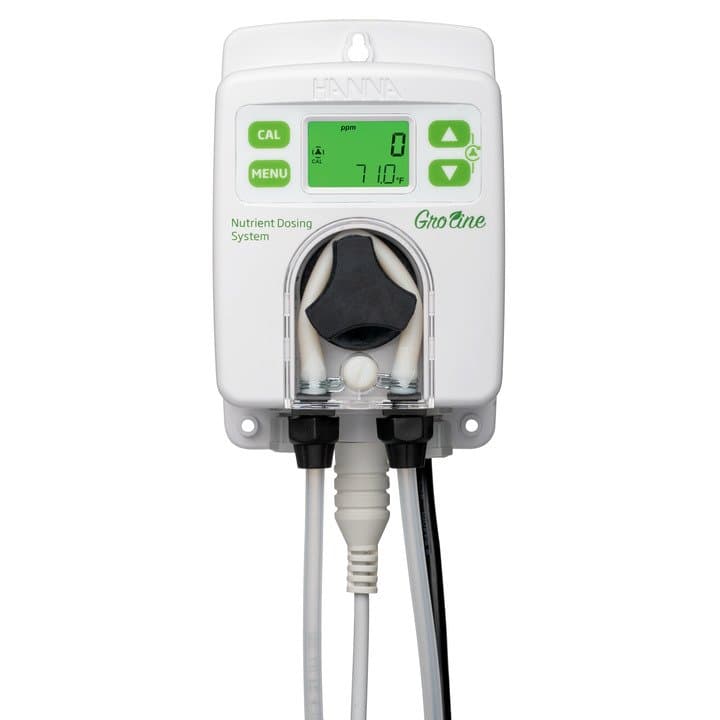

GroLine Nutrient Dosing System
Product code: MX-11606
The powerful built-in peristaltic pump uses a stepper motor which does not have any gears or brushes providing for a long life with little maintenance.
Used in:Agriculture
Prices are quoted, not listed. Add this product to your request. We’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Ask about this product on LINEPrefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Peristaltic Dosing Pump
The powerful built-in peristaltic pump uses a stepper motor which does not have any gears or brushes providing for a long life with little maintenance.
Automatic Proportional Pump Control
The peristaltic dosing pump can be controlled by simple on/off or more advanced proportional control which helps prevents overshooting of the set point.
Adjustable Flow Rate
The dosing pump flow rate is adjustable from 0.5 to 3.5L/h, allowing for better control in maintaining a desired set point.
Acid Tank Level/Flow Switch Input
A connection to an optional level controller or flow switch. This input can be used to disable the dosing pump when there is no chemical left in the reservoir tank or there is no flow due to the pump being turned off.
Multicolored LCD Display
A multi-colored LCD provides a quick way to see the status of the pool controller. The display will show green when operation normally and red while in an alarm state.
Quick Connect Probe Input
The Quick Connect DIN connector creates a waterproof seal with the meter making it ideal for reducing electrical noise issues with the connection caused by humid environments.
GroLine EC/Temperature Probe
The HI981413 uses the HI30033 amplified probe that incorporates both EC (TDS) and temperature sensors and connects to the controller with a single waterproof Quick Connect DIN connector.
Specifications
| Temperature Range | -5.0 to 105°C (23.0 to 221.0°F) |
|---|---|
| Temperature Resolution | 0.1°C (0.1°F) |
| Temperature Accuracy (@25°C/77°F) | ±0.5°C (±0.9°F) |
| EC Range | 0.00 to 10.00 mS/cm |
| EC Resolution | 0.01 mS/cm |
| EC Accuracy (@25°C/77°F) | ±2% F.S. |
| TDS Range | 0 to 4500 ppm (TDS conversion factor 0.45) 0 to 9900 ppm (TDS conversion factor 0.99) |
| TDS Resolution | 1 ppm |
| TDS Accuracy (@25°C/77°F) | ±2% F.S. |
| TDS Conversion Factor | TDS conversion factor selectable from 0.45 to 0.99 |
| Temperature Compensation | automatic |
| Temperature Coefficient | β can be set from 0%/°C to 2.4%/°C default is 1.9%/°C |
| Calibration | EC: user calibration: automatic, one-point with standard solution (1.413 or 5.000 mS/cm) Process calibration: single point, adjustable (±0.50 mS/cm around measured value) TDS: through EC calibration |
| Pump Control | selectable flow rate (0.5 to 3.5 L / hour 0.13 to 0.92 G/hour) manual control for pump priming |
| Alarms | high and low with enable / disable option triggered after 5 sec. if controller records a set of consecutive readings over / under threshold values level with enable / disable option overtime protection (1 to 180 min. or off) intuitive alarm system using red, light green, and green color-coded backlight |
| External Event Input | input for level controller or flow switch to disable dosing pump in the event of no chemical when using a level controller or no flow when using a flow switch - galvanically isolated |
| Alarm Relay Output | SPDT 2.5A / 230 VAC |
| Power Supply | 100—240 VAC, 50/60 Hz |
| Power Consumption | 15 VA |
| Casing | wall mounted, built-in pump, IP65 rated |
| Environment | 0-50°C (32-122°F), max. 95% RH non-condensing |
| Dimensions | 90 x 142 x 80 mm (3.5 x 5.6 x 1.8in.) |
| Weight | 910 g (32 oz.) |
| Recommended Probe | HI30033 EC/TDS/Temperature probe with quick connect DIN connector - galvanically isolated |
