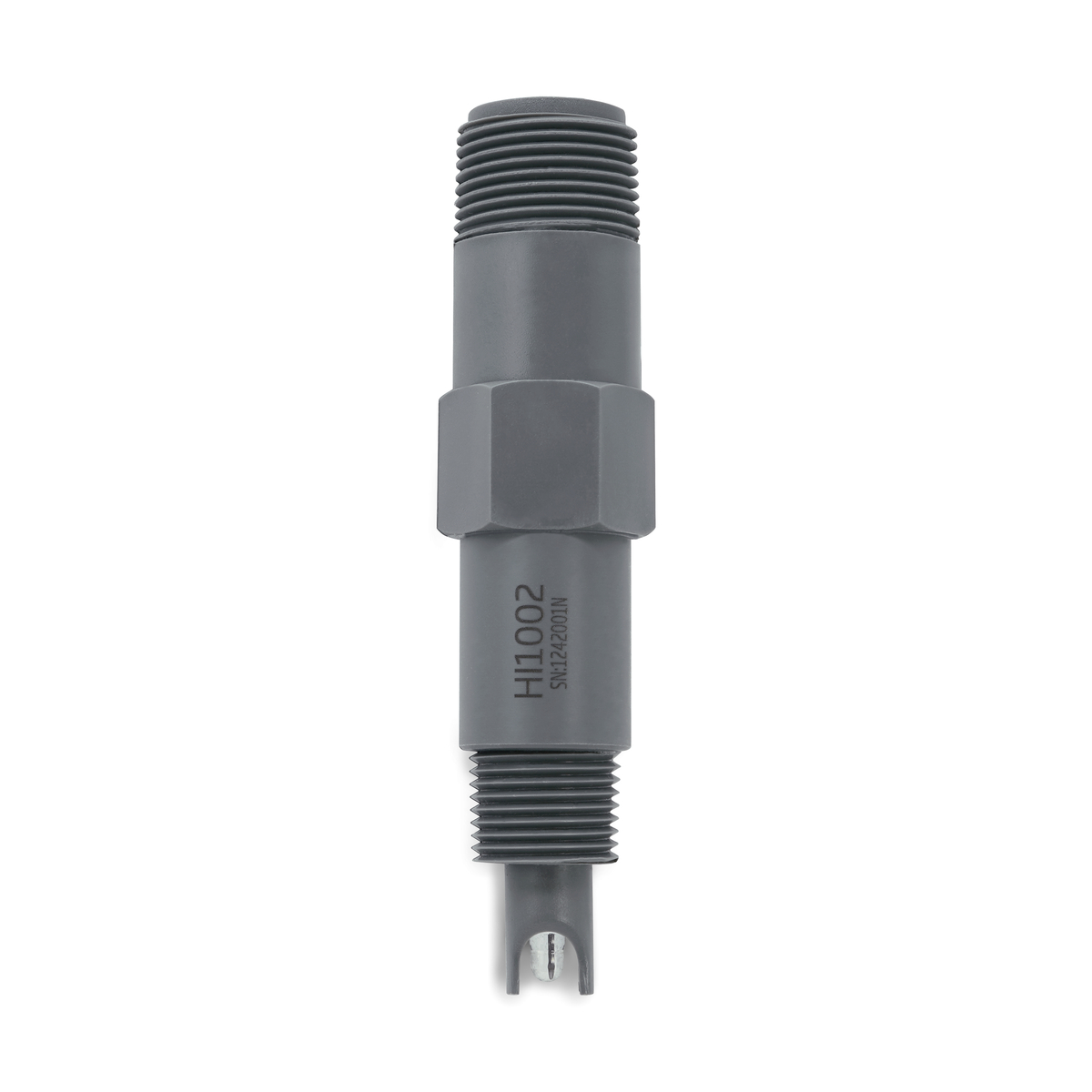

HI1002/x – pH Electrode, Flow-thru Monitoring, BNC
Product code: MX-11645
Flow-thru monitoring pH electrode with BNC connection and 3 m cable. Specifically Built for Industrial Applications 1⁄2” NPT external thread for in-line installation pH electrode with exclusive PTFE non-clogging membrane Double-junction technology PVDF body Models with built-in matching pin and amplifier In order to…
Prices are quoted, not listed. Add this product to your request. We’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Ask about this product on LINEPrefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
In order to reduce normal contamination coming from industrial use, this electrode combines a polymer reference and doublejunction technology. With this technology, no refilling is required and the electrode can be used in samples such as organic compounds, proteins and heavy metals. In addition, the pH electrode uses a unique annular PTFE junction that minimizes clogging. Some models also feature a built-in amplifier, which allows for measurements to be taken far from the location of the instrument without requiring a transmitter. HI1002 probes incorporate a BNC connector that enables connection to any pH meter quickly and easily. Models with 3 or 5 meters (9.8 or 16 feet) cable are available.
Specifications
| Junction | double, PTFE |
|---|---|
| Electrolyte | polymer |
| Matching Pin | no |
| Amplifier | no |
| Temperature | -5 to 80°C |
| Max Pressure | 6 bar (87 psi) |
| Connection | BNC |
| Cable | 3 m |
