Hanna

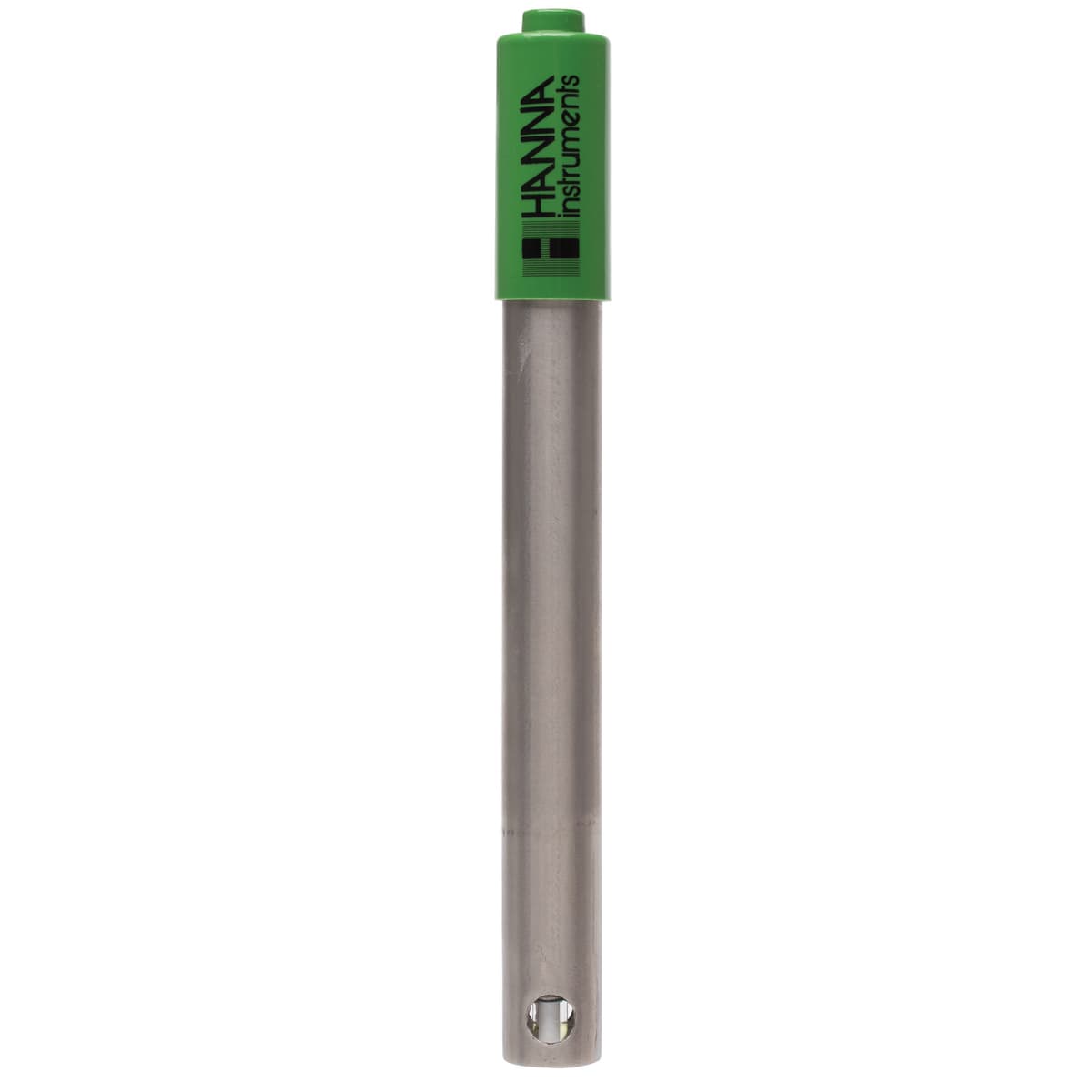

Titanium Body pH Electrode for Wastewater with Quick Connect DIN Connector

Product code: MX-11683

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

Used in:Water & environment

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

The HI12963 uses general purpose (GP) glass, spherical bulb, titanium body, and cloth junction with gel electrolyte.

General Purpose Glass Formulation

General Purpose (GP) glass, as the name implies, is a standard glass formulation that is used for general use.

A pH electrode with GP glass will have a resistance of 100 megaohms at 25°C and is suited for measuring pH of samples that are at ambient temperatures. The HI12963 is suitable to use with samples that are between 0 to 80°C.

Spherical Bulb

The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements.

Titanium Body

A titanium body increases immunity to electrostatic and magnetic fields. It also allows for strong corrosion resistance, even in seawater.

Cloth Junction

This type of junction is often used on electrodes with gelled electrolytes. The advantage of this junction is it is renewable; as the cloth-like material is pulled out from its position, the junction is renewed with an uncontaminated, fresh surface.

Quick Connect DIN Connector

The HI12963 uses a Quick Connect DIN connector that makes attaching and removing the probe simple and easy. This type of connector is proprietary to the meter. See specifications table for compatible meters.

Specifications

DescriptionpH electrode
Referencesingle, Ag/AgCl
Junction / Flow Ratecloth
Electrolytegel
Max Pressure3 bar
RangepH: 0 to 13
Recommended Operating Temperature0 to 80°C (32 to 176°F) - GP
Tip / Shapespheric (dia: 5 mm)
Diameter14 mm
Body Length105 mm / 145.5 mm
Temperature Sensoryes
Amplifieryes
Body Materialtitanium
Cable7-pole 1 m (3.3')
Recommended Usewastewater
ConnectionQuick Connect DIN*
Special Note* Recommended for use with HI98190 and HI991001 pH meter
