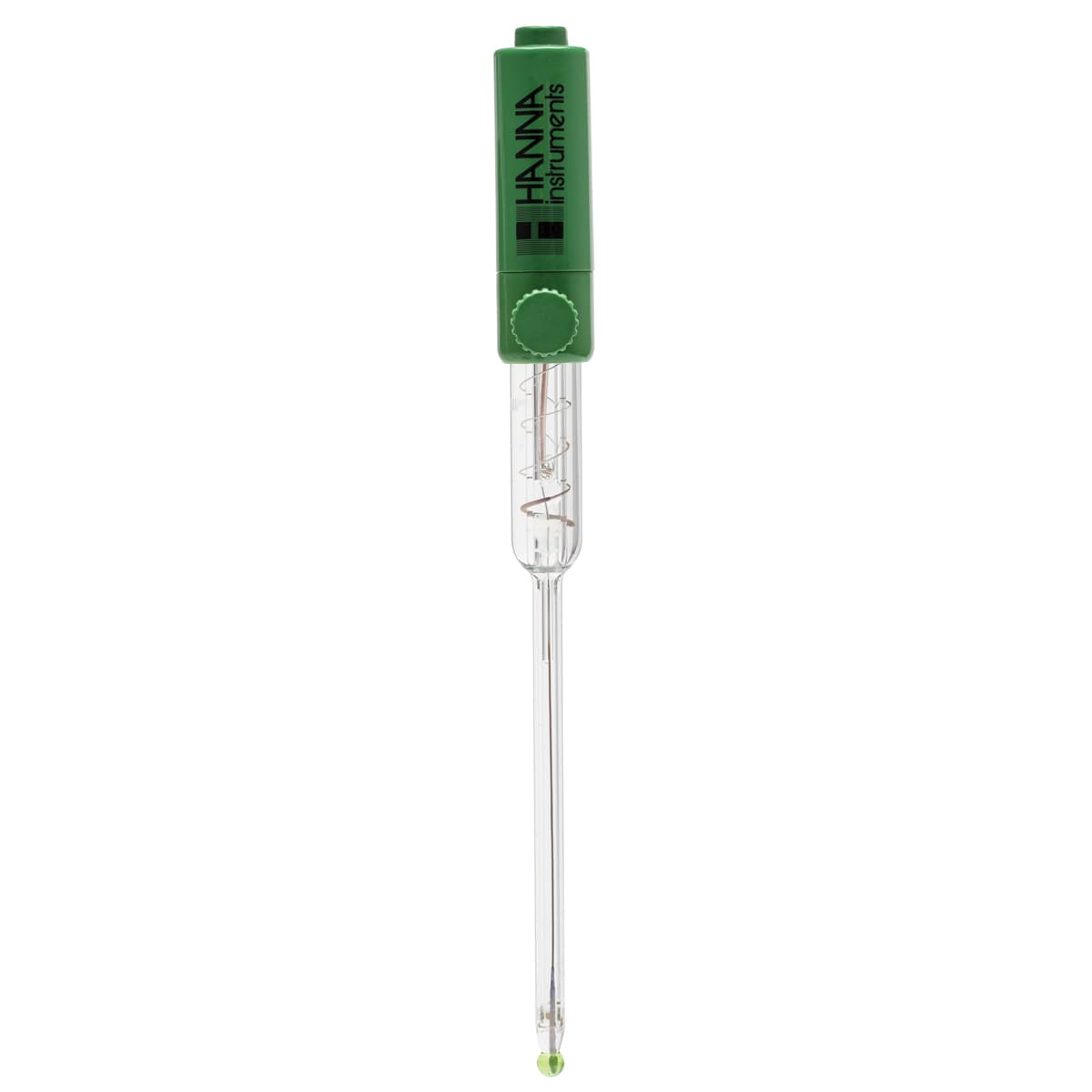

HI1330B – Combination pH Electrode for Vials and Test Tubes

Product code: MX-11687

Combination pH electrode specifically for use in vials and test tubes. Reference Single, Ag/AgCl Junction Ceramic, single Electrolyte KCl 3.5M + AgCl Max Pressure 0.1 bar Range 0 to 13 pH; 20 to 40°C (68 to 104°F) Tip Shape Spheric (dia: 5 mm) Temperature Sensor No Amplifier No Body Material Glass Cable Coaxial; 1 m…

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations. The HI1330B uses low temperature (LT) glass, spherical bulb, glass body, single ceramic junction and is refillable with 3.5M KCl + AgCl. Low-Temperature Glass Formulation The measurement of pH at very high temperatures is detrimental to the sensitive glass bulb and will shorten the life of it. A pH electrode with general purpose (GP) glass will have a resistance of 100 megaohms at 25°C while the resistance of LT glass is around 50 megaohms at 25°C. As the temperature of the glass decreases in the sample, the resistance of the LT glass will approach that of GP glass. If using GP glass, the resistance would increase above the optimum range, resulting in increased impedance and ultimately affecting the measurement. The HI1330B is suitable to use with samples that measure from -5 to 70°C. Spherical Bulb The spherical bulb is for general purpose use. Other tip shapes include conic for penetration and flat tip for surface measurements. Glass Body The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature-dependent. The faster the electrode reaches equilibrium, the steadier the reference potential. Single Ceramic Junction The outer junction of an electrode, also known as a salt bridge, is a necessary component of the electrical circuit. The movement of ions must flow through the junction for a steady reading. The outer reference has a single ceramic frit. The ceramic is a porous material that is easily fused with the glass body and has a similar expansion coefficient. A single ceramic junction has a flow rate of 15-20 ?L/hour. Other junction types are available with higher flow rates and made with different materials. Refillable The HI1330B is a refillable probe. Since it is a single junction pH electrode the fill solution is the HI7071 3.5M KCl + AgCl. If using a refillable pH electrode, the fill cap should be removed prior to calibration and measurement. Removing the cap creates positive head pressure in the reference cell allowing for a higher flow rate of electrolyte through the outer junction. A higher flow rate will result in a faster and more stable reading. BNC Connector The HI1330B uses a BNC connector. This type of connector is universal in that it can be used on any pH meter that has the female BNC probe input. Other type of connectors include DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.

Specifications

ReferenceSingle, Ag/AgCl
JunctionCeramic, single
ElectrolyteKCl 3.5M + AgCl
Max Pressure0.1 bar
Range0 to 13 pH; 20 to 40°C (68 to 104°F)
Tip ShapeSpheric (dia: 5 mm)
Temperature SensorNo
AmplifierNo
Body MaterialGlass
CableCoaxial; 1 m (3.3′)
ConnectionBNC
