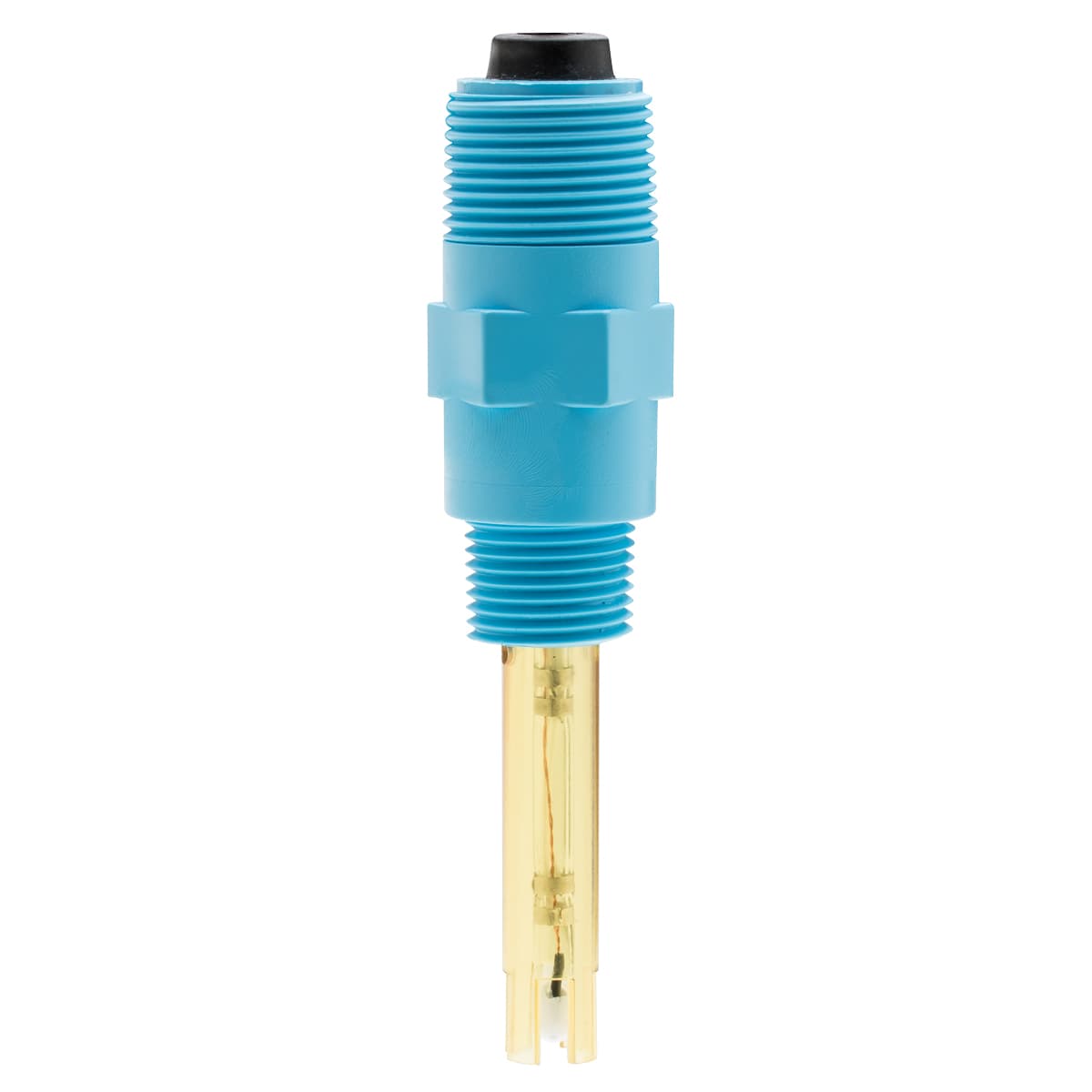

HI3002 – Submersion Conductivity Process Probe

Product code: MX-11738

Submersion Probe with 3 m cable Four-ring and Platinum Sensors The HI 3002 and HI 3012 four-ring probes measure conductivity with platinum sensors. They come with standard 1⁄2” external thread on the front for flow-thru mounting and 3⁄4” threads on the back for submersion or pipe mounting.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Submersion conductivity probe Suitable for direct immersion in vats and tanks. Four-ring method Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes. PVDF body PVDF offers characterized by high thermal stability and excellent chemical resistance. NTC sensor Provide accurate and effective temperature compensation. DIN connector Standard ½in. external thread on the front for flow-thru mounting and ¾in. threads on the back for submersion or pipe mounting. PEI protective cover Can be removed for quick maintenance.

Specifications

Temperature CompensationAutomatic, 0 to 60°C with NTC sensor
Body MaterialPEI (PolyEther-Imide) and PVDF
Operating Temperature0 to 80°C (32 to 176°F)
Max Pressure6 bar
Cable3 m (9.9’)
