Hanna

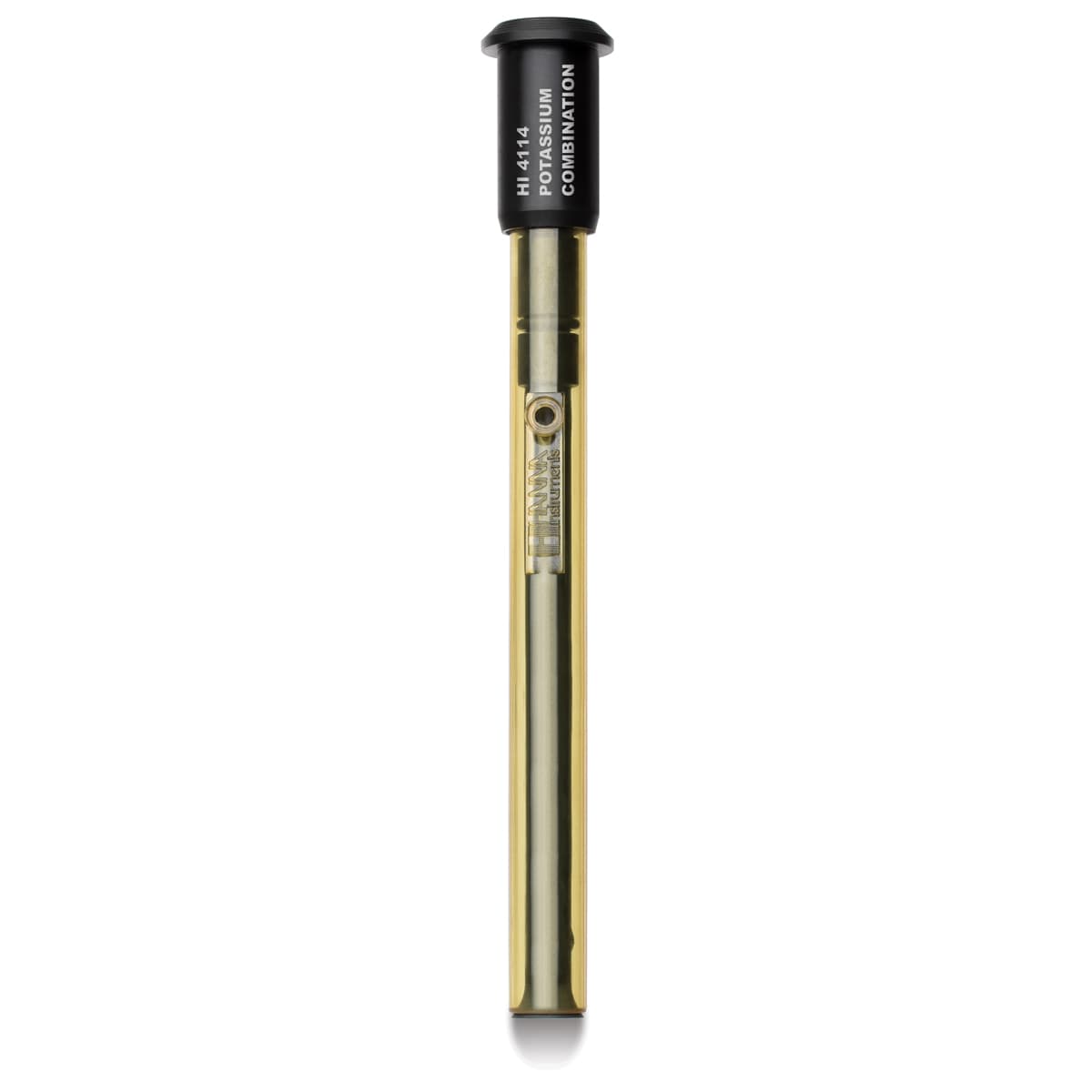

HI4114 – Potassium Combination ISE

Product code: MX-11956

Potassium combination ISE Product Manuals Manual: Download Specifications : Parameter Potassium Type Polymer Membrane; Combination Measurement Range 1M to 1X 10 -6 M 39100 to 0.039 ppm Optimum pH Range 1.5 to 12.0 Temperature Range 0 to 40°C Approximate Slope +56 Body O.D.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

The HI4114 potassium ion selective electrode is a complete potentiometric cell that contains a silver/silver chloride (Ag/AgCl) reference housed within a PEI plastic body with a sodium chloride electrolyte. The internal elements are isolated from the sample by an organic polymer sensing membrane. Hanna's liquid membrane combination ISEs are designed with a cone style junction. The skirted cone geometry of the sensor forms the liquid junction with the test solution at the tip of the junction cone, producing a highly stable reference potential and consistent flow rates of electrolyte into the solution. A simple press of the top portion of the ISE makes it easy to empty the electrolyte fill solution and replace when necessary. For the HI4114 to measure potassium accurately, it is important that the ionic strength of the standards and sample be adjusted to a high and constant value with the potassium ionic strength adjuster (ISA) solution. The ISA ensures that the activity coefficient is constant so the concentration of free potassium ions can be measured. Measuring all solutions with a constant ionic strength reduces the margin of error between measurements. The HI4114 potassium liquid membrane ISE can measure from 1µM (0.039 mg/L) to 1M (39,100 mg/L). Conversion Table for K+ Multiply moles/L (M) to ppm (mg/L)

Specifications

ParameterPotassium
TypePolymer Membrane; Combination
Measurement Range1M to 1X 10 -6 M 39100 to 0.039 ppm
Optimum pH Range1.5 to 12.0
Temperature Range0 to 40°C
Approximate Slope+56
Body O.D.12 mm
Insertion Length120 mm
Body MaterialPEI/PVC
Cable1m coaxial
ConnectorBNC
Possible ApplicationsDetermination of potassium ions in wine, waters, soils and biological samples.
