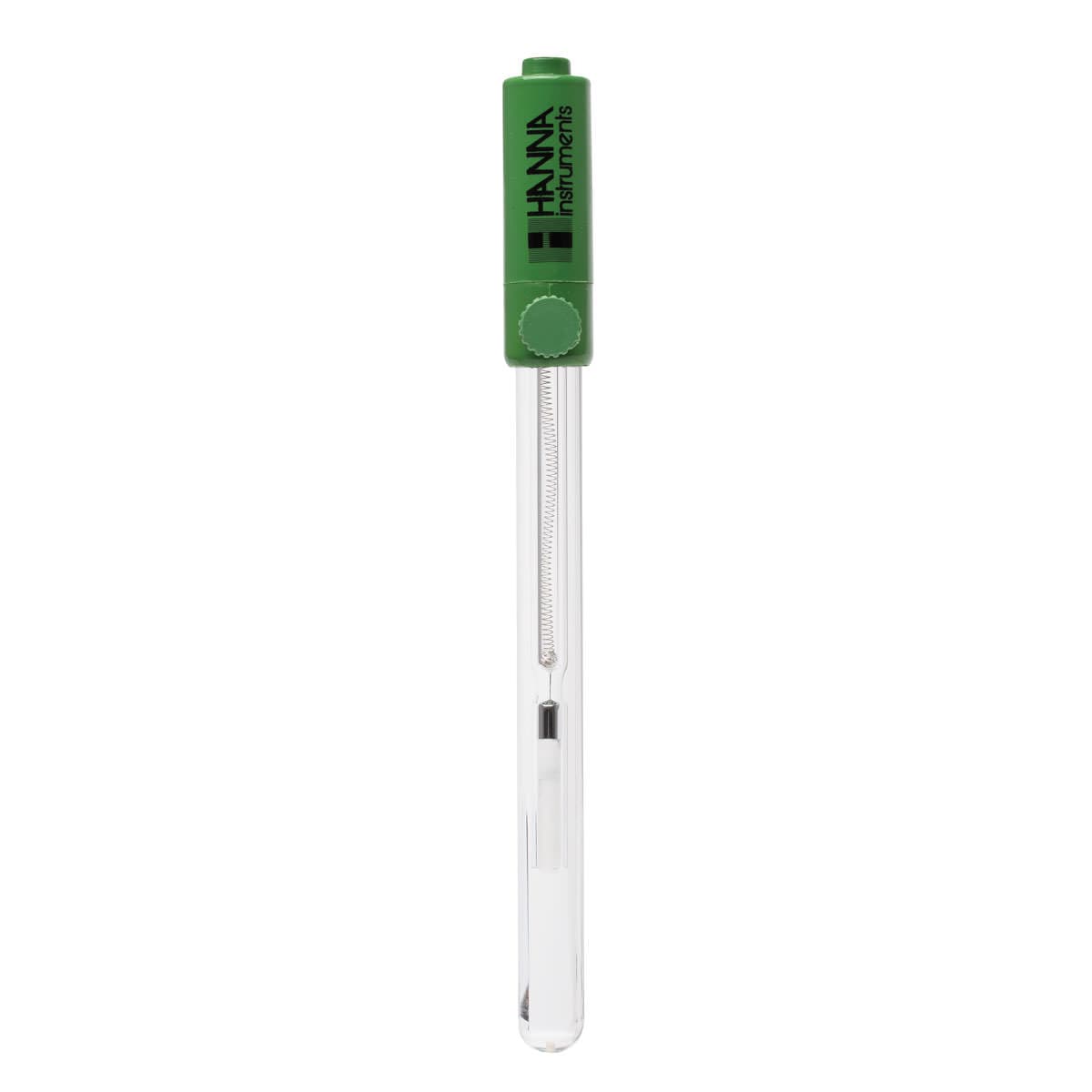

HI5412 – Reference Electrode, Banana

Product code: MX-12036

Reference electrode for general purpose, ISE and titrations. Reference single, Hg/Hg 2 Cl 2 Junction/Flow Rate ceramic, single / 15-20 μL/H Electrolyte KCl 3.5M Max Pressure 0.1 bar Recommended Operating Temp. -5 to 30°C (23 to 86°F) Body Material glass Cable 1 m (3.3′) Connection 4 mm banana

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used, body material, type of junction, type of reference and electrolyte used are just some of the design considerations. The HI5412 uses a glass body, single ceramic junction, calomel references and is refillable with 3.5M KCl. Glass Body The glass body is ideal for laboratory use. The glass is resistant to many harsh chemicals and is easily cleaned. The glass body also allows for a fast transfer of heat to the internal reference electrolyte. The mV generated by the reference cell is temperature-dependent. The faster the equilibrium the steadier the reference potential. Single Ceramic Junction The outer junction of an electrode, also known as a salt bridge, is a necessary component of the electrical circuit. The movement of ions must flow through the junction for a steady reading. The outer reference has a single ceramic frit. The ceramic is a porous material that is easily fused with the glass body and has a similar expansion coefficient. A single ceramic junction has a flow rate of 15-20 µL/hour. Other junction types are available with higher flow rates and made with different materials. Refillable The HI5412 is a refillable reference electrode. Since it is a double junction electrode the fill solution is the HI7082 3.5M KCl. This solution does not contain any silver as with a single-junction electrode. The absence of silver will prevent any silver precipitate from forming at the junction surface and clogging it. Clogging of the junction will result in drifty and erratic readings. 4 mm Connector The HI5412 uses a 4 mm banana connector. This type of connector is easily plugged into the reference input on suitable meters. Other types of connectors include BNC, DIN, screw type, T-type, and 3.5mm to name a few. These types of connectors tend to be proprietary for a particular type of meter and are not interchangeable.

Specifications

Referencesingle, Hg/Hg 2 Cl 2
Junction/Flow Rateceramic, single / 15-20 μL/H
ElectrolyteKCl 3.5M
Max Pressure0.1 bar
Recommended Operating Temp.-5 to 30°C (23 to 86°F)
Body Materialglass
Cable1 m (3.3′)
Connection4 mm banana
