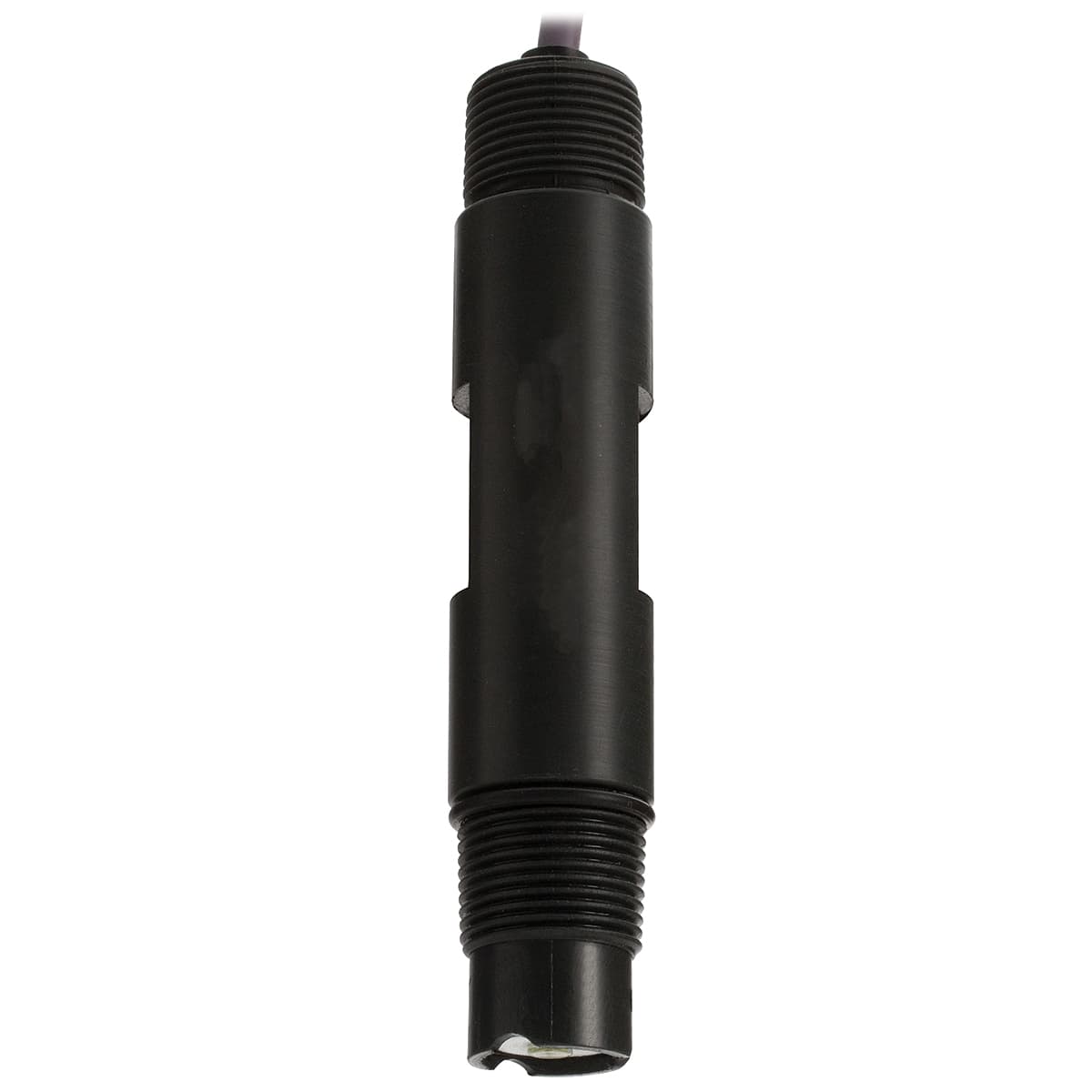

HI6100405 – AmpHel Flat Tip Process pH Electrode
Product code: MX-12078
AmpHel® amplified Matching pin Flat tip PVDF body AmpHel ® pH General Purpose Electrode with BNC connection and 5 m cable. Specification : Range 0-13 pH Body PVDF Junction double, PTFE Electrolyte polymer Glass Type general purpose Temperature -5 to 80 °C Max Pressure 6 bar (87 psi) Connection BNC Cable 5 m
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Flat tipped pH electrode Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance. PTFE junction The electrode has a unique clog resistant junction that enhances both probe life and accuracy. PVDF body PVDF offers characterized by high thermal stability and excellent chemical resistance. BNC connector Allows for quick and easy connection to any pH/ORP meter or transmitter. General purpose glass formulation General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications. Double junction technology with gel polymer filling Ensure long electrode life and reliability in harsh environments.
Specifications
| Range | 0-13 pH |
|---|---|
| Body | PVDF |
| Junction | double, PTFE |
| Electrolyte | polymer |
| Glass Type | general purpose |
| Temperature | -5 to 80 °C |
| Max Pressure | 6 bar (87 psi) |
| Connection | BNC |
| Cable | 5 m |
