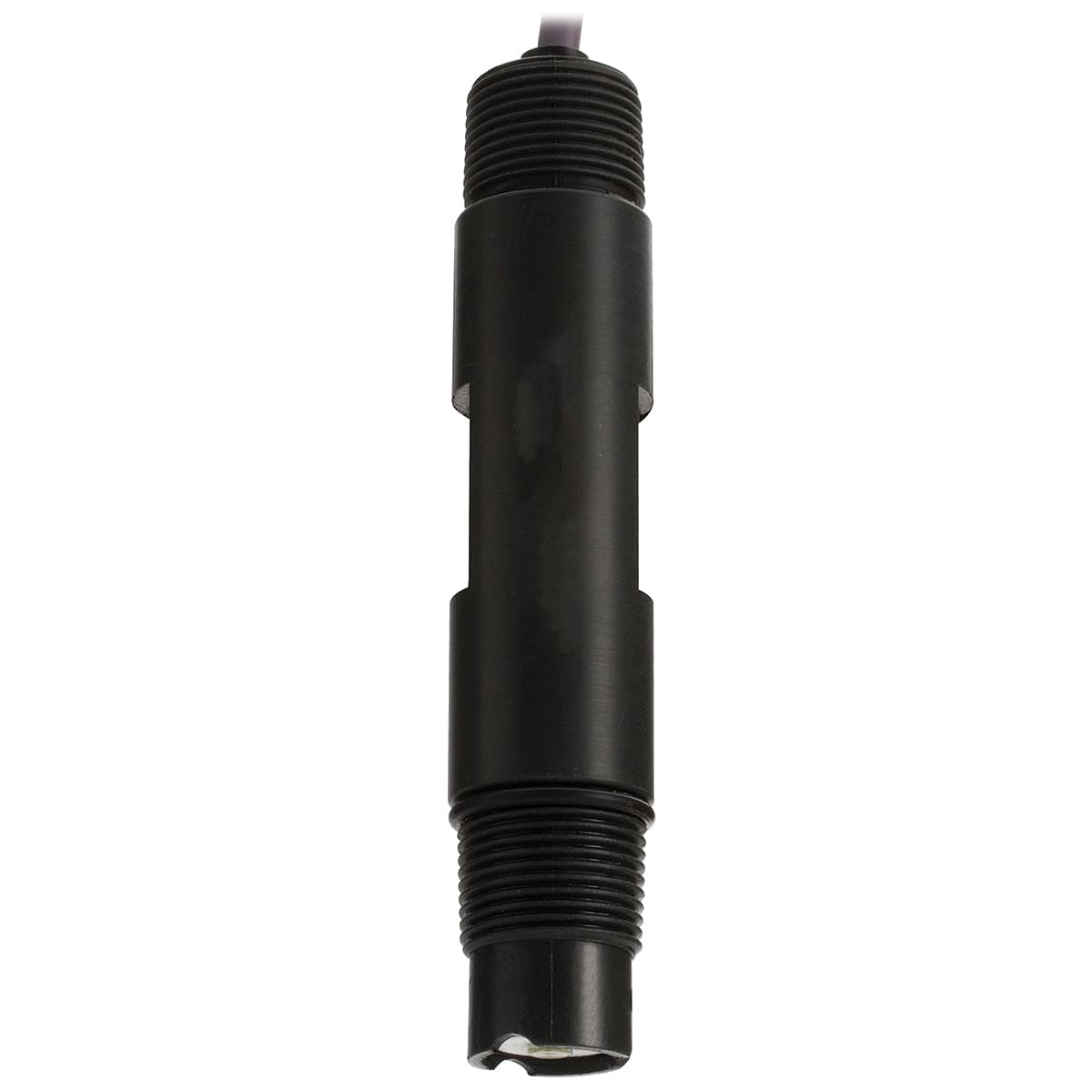

HI61014xx – AmpHel Flat Tip PT100 Process pH Electrode

Product code: MX-12080

Eintauch Industrie Elektrode aus PVDF Diaphragma doppelt, PTFE Elektrolyt Polymer Max. Druck 6 bar Messbereiche Temperatur: -5 bis 60°C ; F-Max 2 G/L ; pH 0 bis 13pH Stecker BNC+Lead Kabel 5 Meter oder 15 Meter ATC Pt100

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Flat tipped pH electrode Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance. PTFE junction The electrode has a unique clog resistant junction that enhances both probe life and accuracy. PVDF body PVDF offers characterized by high thermal stability and excellent chemical resistance. BNC + lead connector Allows for quick and easy connection to any pH/ORP meter or transmitter. General purpose glass formulation General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications. Built-in Pt100 temperature sensor Ensures fast, accurately compensated readings even during sudden temperature fluctuations.

Specifications

Diaphragmadoppelt, PTFE
ElektrolytPolymer
Max. Druck6 bar
MessbereicheTemperatur: -5 bis 60°C ; F-Max 2 G/L ; pH 0 bis 13pH
SteckerBNC+Lead
Kabel5 Meter oder 15 Meter
ATCPt100
