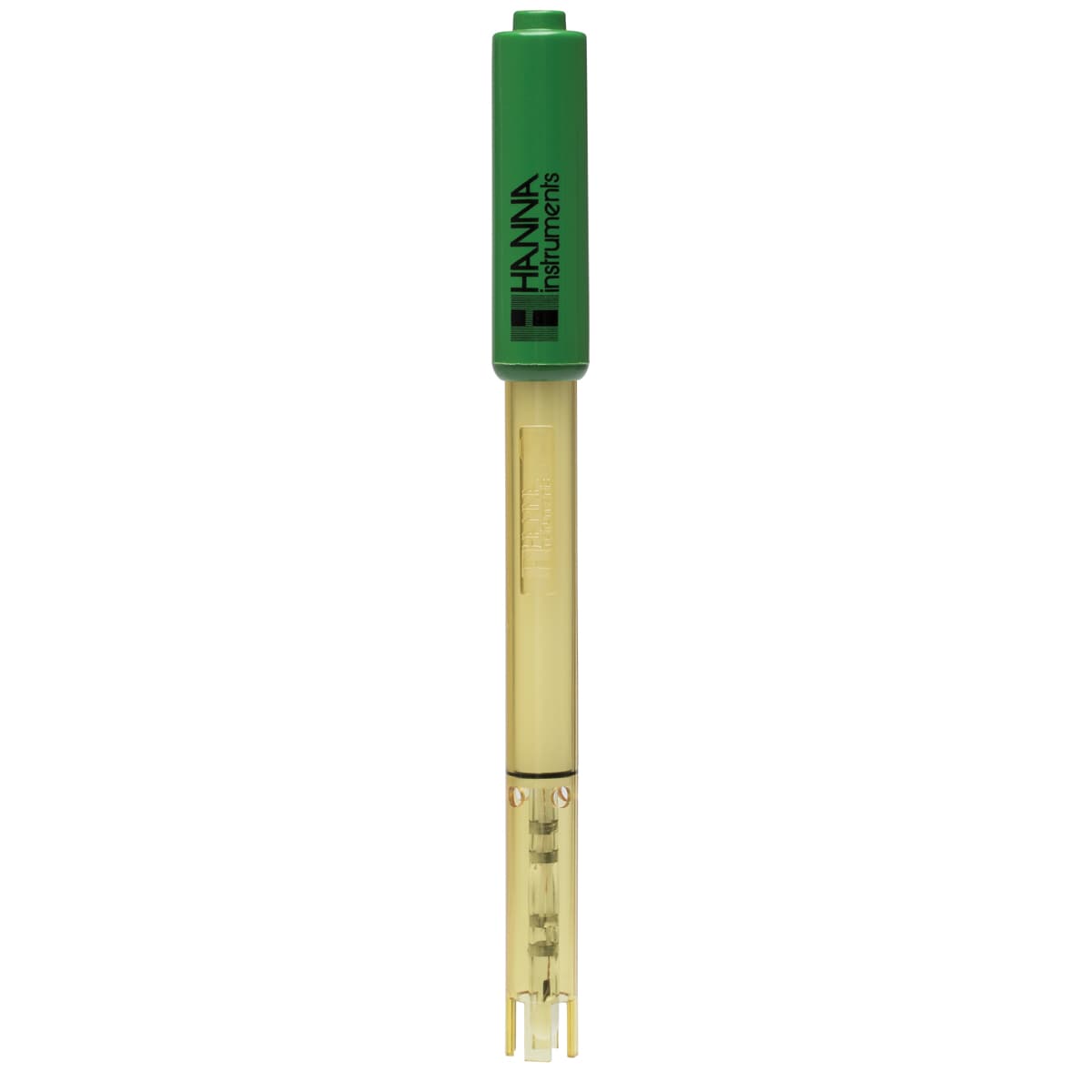

HI763100 Digital conductivity electrode – 4 ring, platinum (edge)

Built-in Microchip The built-in microchip stores sensor type, serial number and calibration information including date, time, offset, slope, probe condition and buffers used. This information is automatically retrieved by edge® once the electrode is plugged in. The ability to transfer information allows for hot-swapping of probes without having to recalibrate. All pH measurements are performed within the electrode and transferred digitally to the meter. This overcomes any noise issues associated with the traditional high impedance analog measuring system. Electrical noise can be generated from a built-in temperature sensor and while working in a humid environment. Potentiometric Measuring System The four-ring potentiometric measuring system allows the measurement of a broad range of samples while minimizing the effects of polarization. The two outer rings apply an alternating voltage and induce a current loop in the solution, while the two inner rings measure the voltage drop induced by the current loops. This allows for a range of readings from very high to very low without changing electrodes. Sleeve The probe is surrounded by a chemically resistant plastic sleeve to maintain control of external interferences from the sample. It also allows the current loop to be generated in a controlled area. Internal Temperature Sensor Since temperature is an important factor for measuring conductivity, a built-in temperature sensor on the probe is very helpful. There is no need for an external temperature probe so that measurements can be made easily. The coefficient used to correct for changes in temperature is ?, which is expressed as a percentage of reading per degree of Celsius.
