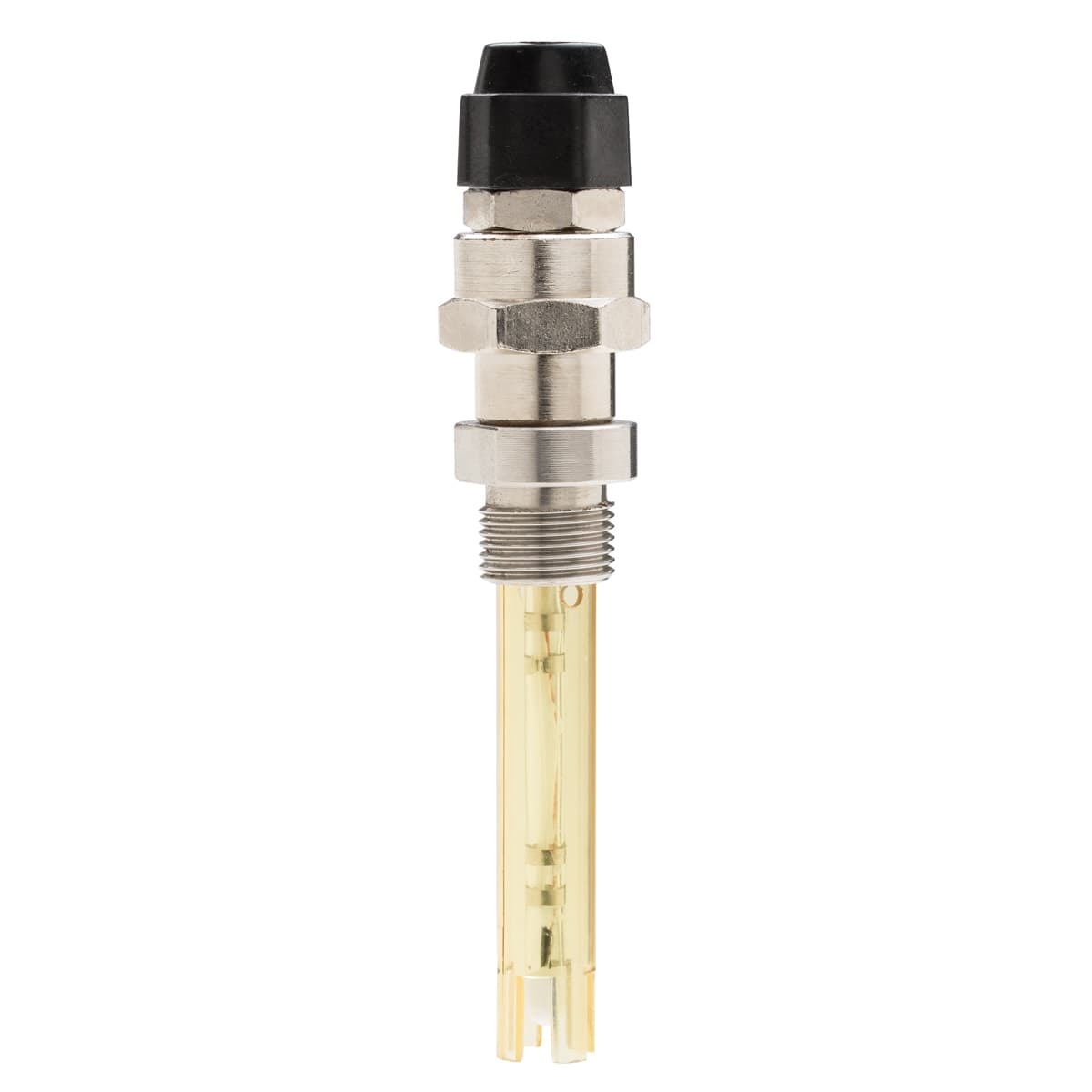

HI7639 – Inline Conductivity Probes with Platium Ring with PT100 sensor

Product code: MX-12394

In-line Conductivity Probe with Platinum Ring, Pt100 Sensor and 3 m Cable. These conductivity probes combine the proven four-ring potentiometric method of measuring conductivity with platinum sensors. The universally acclaimed four-ring method provides an exceptionally stable measurement over a wider range.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

In-line conductivity probe Suitable for direct immersion in pipes. Four-ring method Provides an exceptionally stable measurement over a wider range. These probes do not suffer polarization, nor do they need frequent calibration or cell changes. Built-in Pt100 temperature sensor Provide accurate and effective temperature compensation. Color coded wires 3m cable incorporating color coded wires for easy connection to transmitters. Platinum sensor Provides the best response over a wide range of applications. PEI body PEI bodied electrodes are rugged and suitable for noncritical applications that require a very good combination of chemical, mechanical, and thermal resistance.

Specifications

Temperature CompensationAutomatic, 0 to 50°C with Pt100 sensor
Body MaterialPEI (PolyEther-Imide) and glass
Operating Temperature0 to 120°C (32 to 248°F)
Max Pressure5 bar
Cable/Connection3 m (9.9’)/Color coded wires
