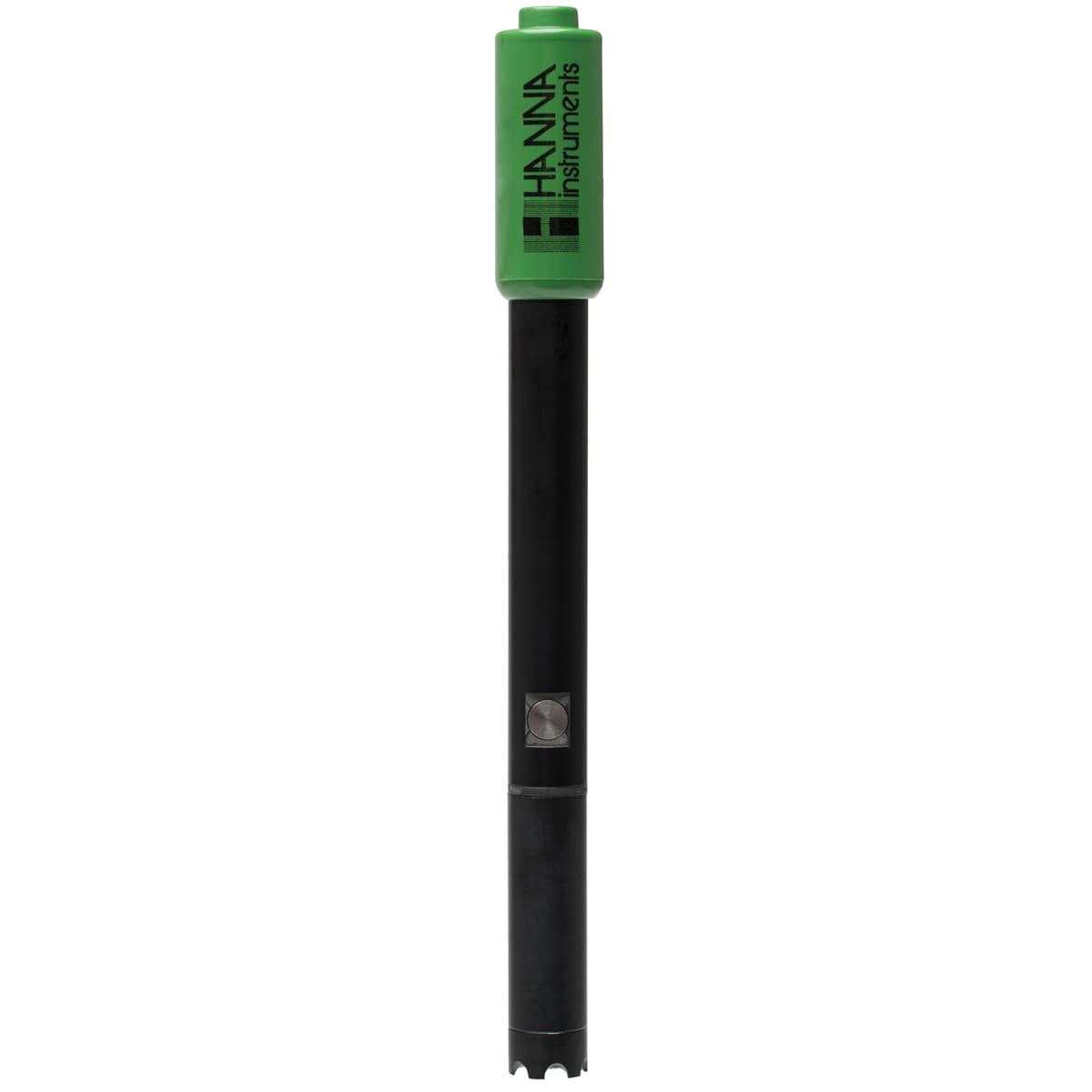

Digital DO/Temperature Electrode
Product code: MX-12399
The built-in microchip stores sensor type, serial number and calibration information including date, time, offset, slope, probe condition and buffers used. This information is automatically retrieved by edge® once the electrode is plugged in.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Built-in Microchip
The built-in microchip stores sensor type, serial number and calibration information including date, time, offset, slope, probe condition and buffers used. This information is automatically retrieved by edge® once the electrode is plugged in. The ability to transfer information allows for hot swapping of probes without having to recalibrate. All DO measurements are performed within the electrode and transferred digitally to the meter. This overcomes any noise issues associated with the traditional high impedance analog measuring system. Electrical noise can be generated from a built in temperature sensor and while working in a humid environment.
Ultra-Thin Body
The ultra-thin, 12mm, design allows for convenient measurement in narrow vessels such as test tubes.
Replaceable Membranes
With screw-on caps, edge® DO PTFE membranes are easy to replace for faster maintenance.
Specifications
| Reference | Ag/AgCl, glass encapsulated platinum |
|---|---|
| Range | 0 to 300% oxygen saturation |
| Recommended Operating Temperature | 0 to 50˚C (32 to 122˚F) |
| Tip / Shape | polarographic membrane |
| Body Length | 120 mm |
| Temperature Sensor | yes |
| Amplifier | no |
| Body Material | PEI |
| Cable | 1 m (3.3') |
| Recommended Use | edge multiparameter |
| Connection | 3.5 mm connector |
