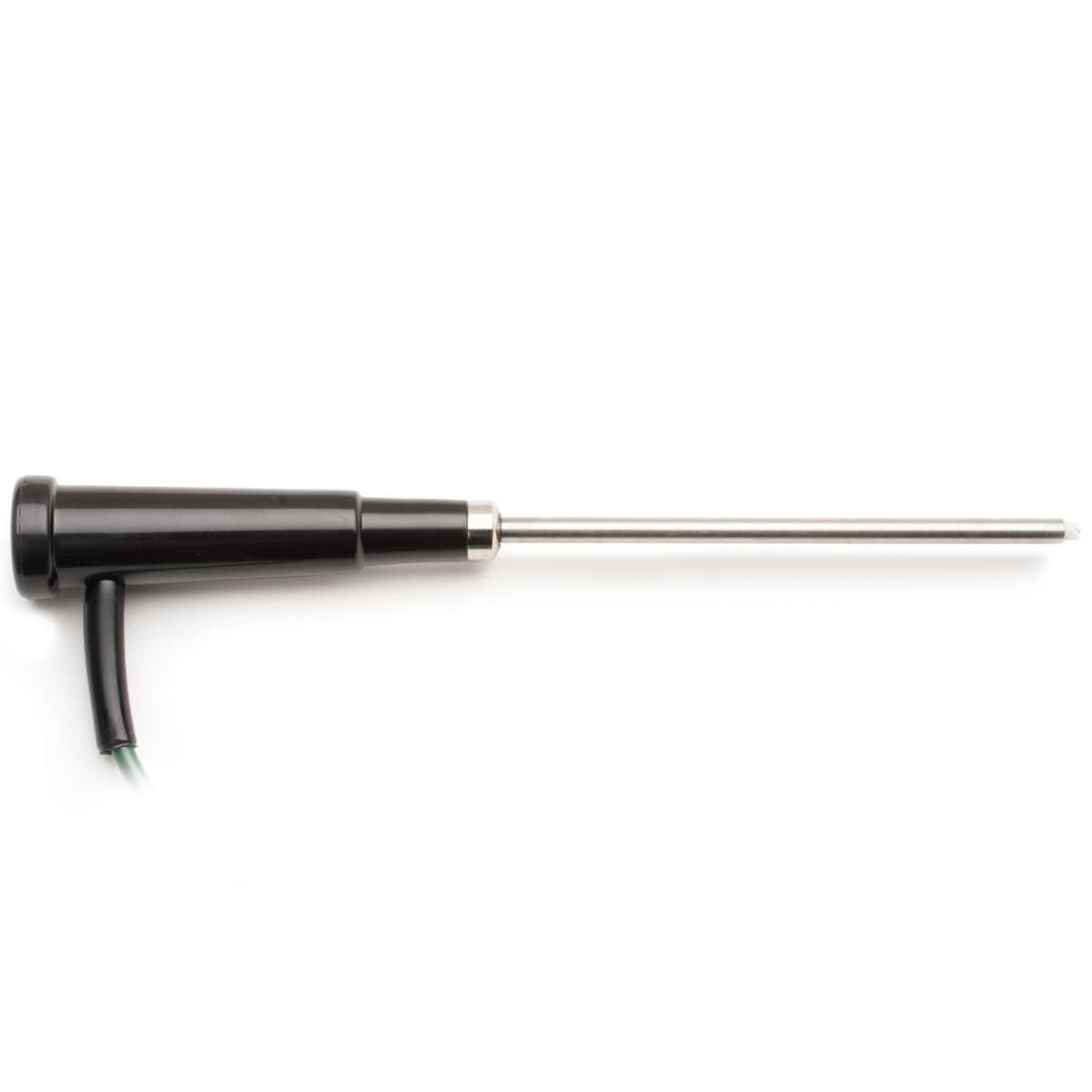

Small Surface K-Type Thermocouple Probe with Handle
Product code: MX-12417
The Small Surface K-Type Thermocouple Probe with Handle - HI766B3 is designed to measure the temperature of small surfaces that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
The Small Surface K-Type Thermocouple Probe with Handle - HI766B3 is designed to measure the temperature of small surfaces that may be difficult to measure with traditional temperature probes. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766B3 surface construction offers a speedy 6-second response for a temperature reading. With an insulated shaft constructed from strong, corrosion-resistant, stainless steel, this probe is able to measure surfaces up to 200°C (390°F).
Specifications
| Recommended Operating Temperature | 200°C (390°F) |
|---|---|
| Response Time (90% of final value) | 6 seconds |
| Body Length | L 130 mm x dia 8 mm ( 5.1 x 0.3) |
| Temperature Sensor | yes |
| Body Material | stainless steel |
| Cable | polyurethane (PUR)/coiled 1 m (3.3') |
| Recommended Use | small surfaces |
| Connection | K-Type |
