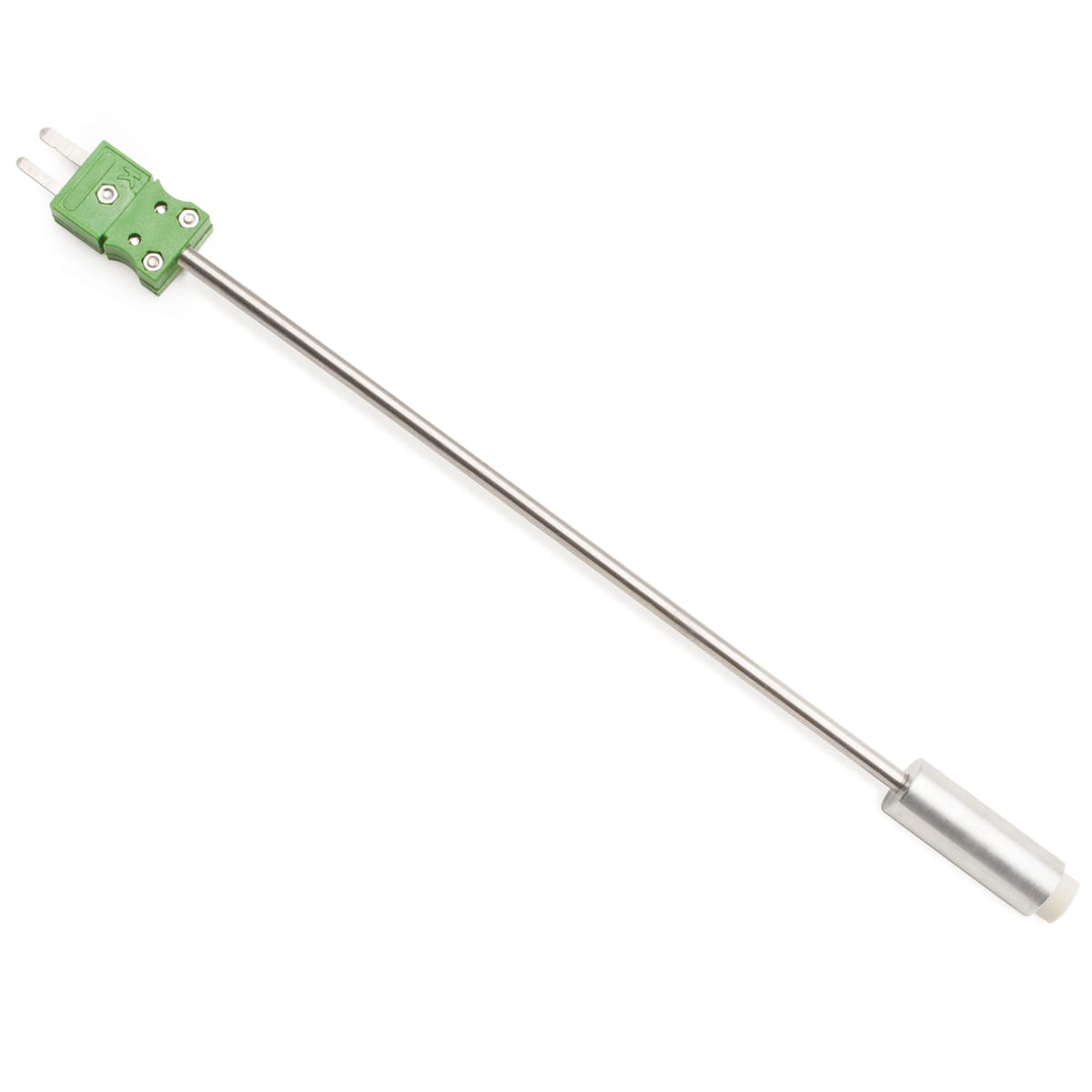

Surface K-Type Thermocouple Probe
Product code: MX-12430
The Surface K-Type Thermocouple Probe - HI766PB is designed to measure the temperature of solid, high-temperature surfaces that may be difficult to measure. The response time of a measurement is affected by the position of the sensor relative to the surface being measured.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
The Surface K-Type Thermocouple Probe - HI766PB is designed to measure the temperature of solid, high-temperature surfaces that may be difficult to measure. The response time of a measurement is affected by the position of the sensor relative to the surface being measured. The HI766PB surface construction offers a speedy 8-second response for a temperature reading. With a strong, corrosion-resistant, stainless steel construction, this probe is able to measure surfaces up to 650°C (1200°F).
Specifications
| Recommended Operating Temperature | 650°C (1200°F) |
|---|---|
| Response Time (90% of final value) | 4 seconds |
| Body Length | L 200 mm x dia 15 mm (7.9 x 0.6) |
| Temperature Sensor | yes |
| Body Material | stainless steel |
| Recommended Use | furnaces, hot solids, molds |
| Connection | K-Type |
