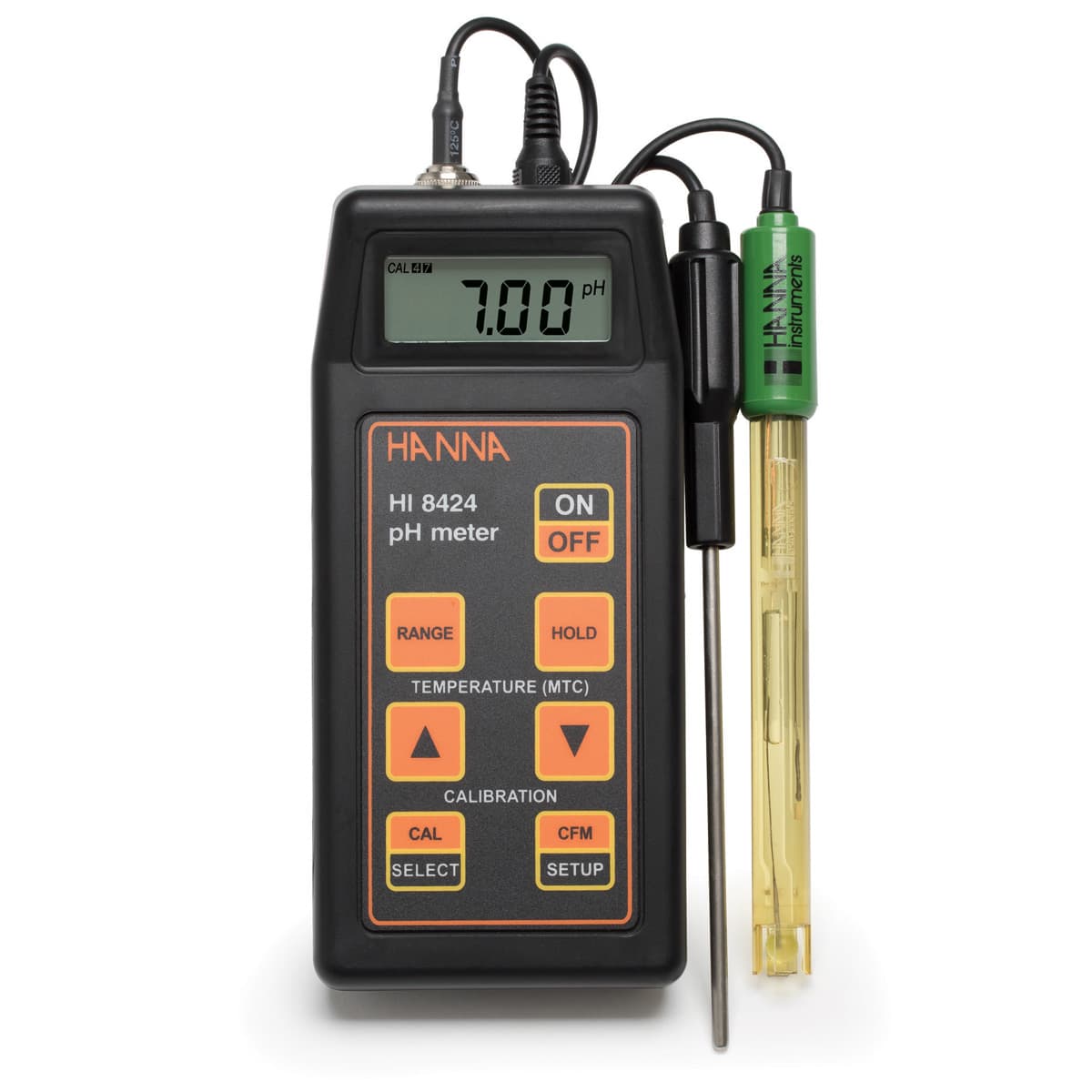

Portable Field pH Meter – HI8424
Product code: MX-12517
The HI8424 is an economical portable pH/ mV meter. This meter uses a BNC connector for the pH electrode input allowing for a wide selection of pH and ORP electrodes to be used. A separate temperature probe is supplied to provide temperature compensated pH measurement.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
The HI8424 is an economical portable pH/ mV meter. This meter uses a BNC connector for the pH electrode input allowing for a wide selection of pH and ORP electrodes to be used. A separate temperature probe is supplied to provide temperature compensated pH measurement. The HI8424 is very basic in operation with automatic calibration to one or two points to any of the three programmed buffer values (pH 4.01, 7.01, and 10.01). The simplicity in operation and the economical price point has made the HI8424 one of the most popular meters available in the market. Features at-a-glance Waterproof - Compact, heavy duty casing that is protected against any ingress of water that would damage the electronics. Automatic Calibration - calibration to one or two points to any of the three programmed buffer values (pH 4.01, 7.01, and 10.01). Automatic Temperature Compensation - Separate temperature probe is supplied to provide temperature compensated measurements. High Resolution/Accuracy mV Range - The HI8424 automatically switches resolution from 1 mV to 0.1 mV when ORP readings are between -699.9 to +699.9 mV. The accuracy within this range is ±0.2 mV. Automatic Shutoff - The automatic shutoff feature will turn the meter off after 20 minutes to conserve battery life. Low Battery Indicator - A low battery indicator will be displayed when the battery life is almost exhausted (5% remaining) alerting the user that a new battery will be needed in the near future.
Specifications
| pH Range | -2.00 to 16.00 pH |
|---|---|
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.01 pH |
| pH Calibration | automatic, at one or two points with three standard buffers (4.01, 7.01,10.01) |
| pH Input impedance | 1012 Ohms |
| mV Range | ±699.9 mV; ±1999 mV |
| mV Resolution | 0.1 mV; 1 mV |
| mV Accuracy | ±0.2 mV; ±1 mV |
| Temperature Range | -20.0 to 120.0°C / -4.0 to 248.0°F |
| Temperature Resolution | 0.1°C / 0.1°F |
| Temperature Accuracy | ±0.4°C; ±0.8°F |
| Temperature Compensation | automatic from -20.0 to 120.0oC (-4.0 to 248.0oF) or manual without temperature probe connected |
| pH Electrode | HI1230B PEI body pH probe with BNC connector and 1 m (3.3’) cable (included) |
| Temperature Probe | HI7662 stainless steel temperature probe with 1 m (3.3’) cable (included) |
| Automatic Shut-Off | after 20 minutes of non-use (can be disabled) |
| Battery Type/Life | 9V / approximately 150 hours of continuous use |
| Environment | 0 to 50°C (32 to 122°F); RH max 100% |
| Dimensions | 164 x 76 x 45 mm (6.5 x 3.0 x 1.8”) |
| Weight | 180 g (6.3oz.) |
| Ordering Information | HI8424 is supplied with HI1230B pH electrode, HI7662 temperature probe, HI70004 pH 4.01 buffer solution sachet, HI70007 pH 7.01 buffer solution sachet, HI700601 electrode cleaning solution sachets (2), battery, protective case and instructions. |
