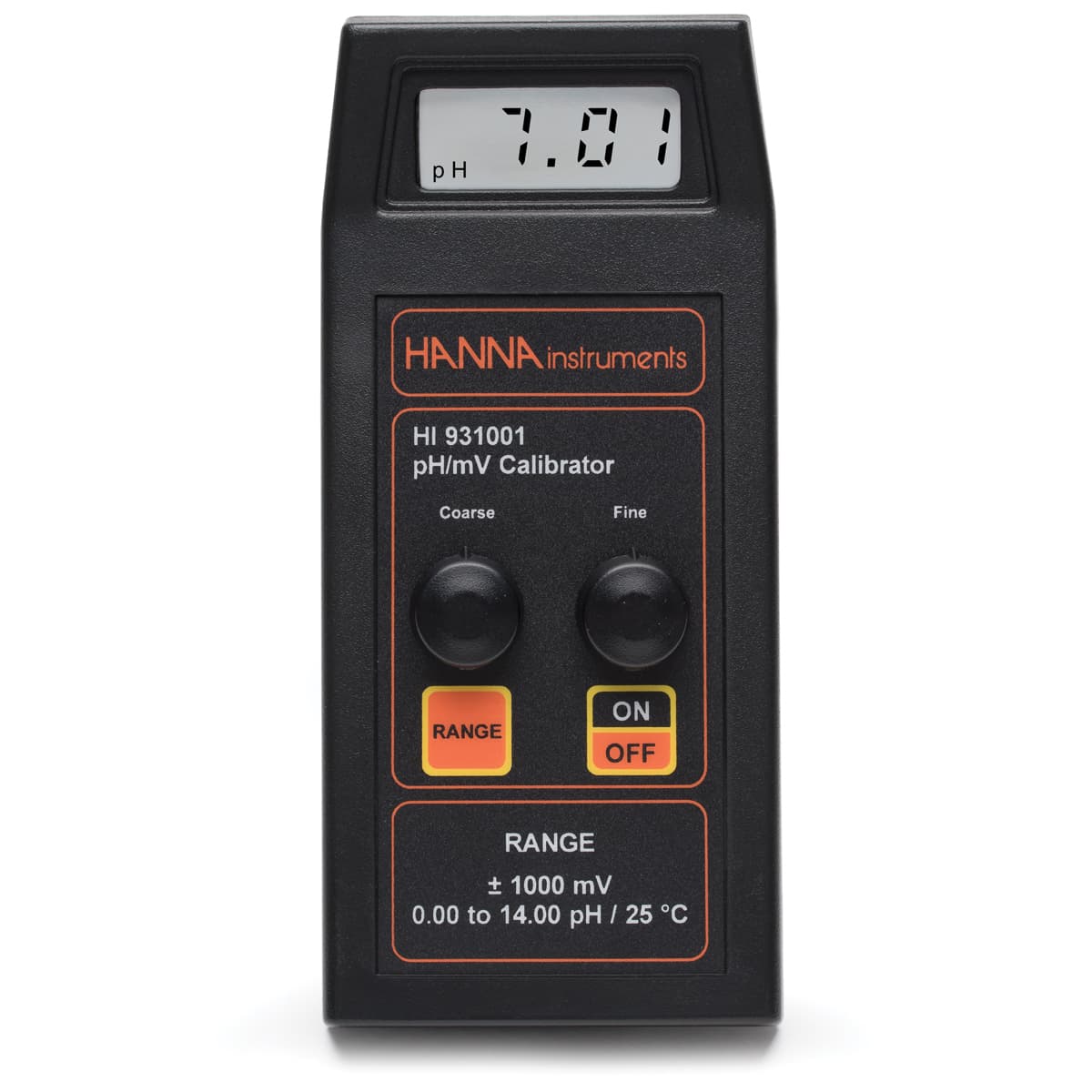

HI931001 pH and mV Precision Simulator (BNC)
Product code: MX-12611
Simulate output to discover malfunctions. Great tools for trouble-shooting your existing pH/ORP meter or process instruments. Provided with universal BNC connector Sometimes it is difficult to recognize whether a particular malfunction is due to the meter or the electrode.
Prices are quoted, not listed.
Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Request a quotation for this item
For several items, add each one to a single request.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Sometimes it is difficult to recognise whether a particular malfunction is due to the meter or the electrode. By simply connecting the HI-931001 to your meter's input socket and turning the dials, pH readings can be simulated from 0 to 14 pH in 0.01 steps. The output signals all correspond to pH values at 25°C and your pH meter should be able to check the span of your pH meter. For the mV range, the HI-931001 can simulate output from -1000 to +1000 mV in 1 mV steps.
Specifications
| Range | pH 0.00 to 14.00 pH |
|---|---|
| Resolution | pH 0.01 pH |
| Accuracy @ 20°C | pH ±0.01 pH |
| Temperature Compensation | all output values are simulated at 25°C |
| Battery Type / Life | 9V / approximately 500 hours of use |
| Environment | 0 to 50°C (32 to 122°F); RH max 95% |
| Dimensions | 185 x 82 x 53 mm (7.3 x 3.2 x 2.1’’) |
| Weight | 320 g (11.3 oz.) |
