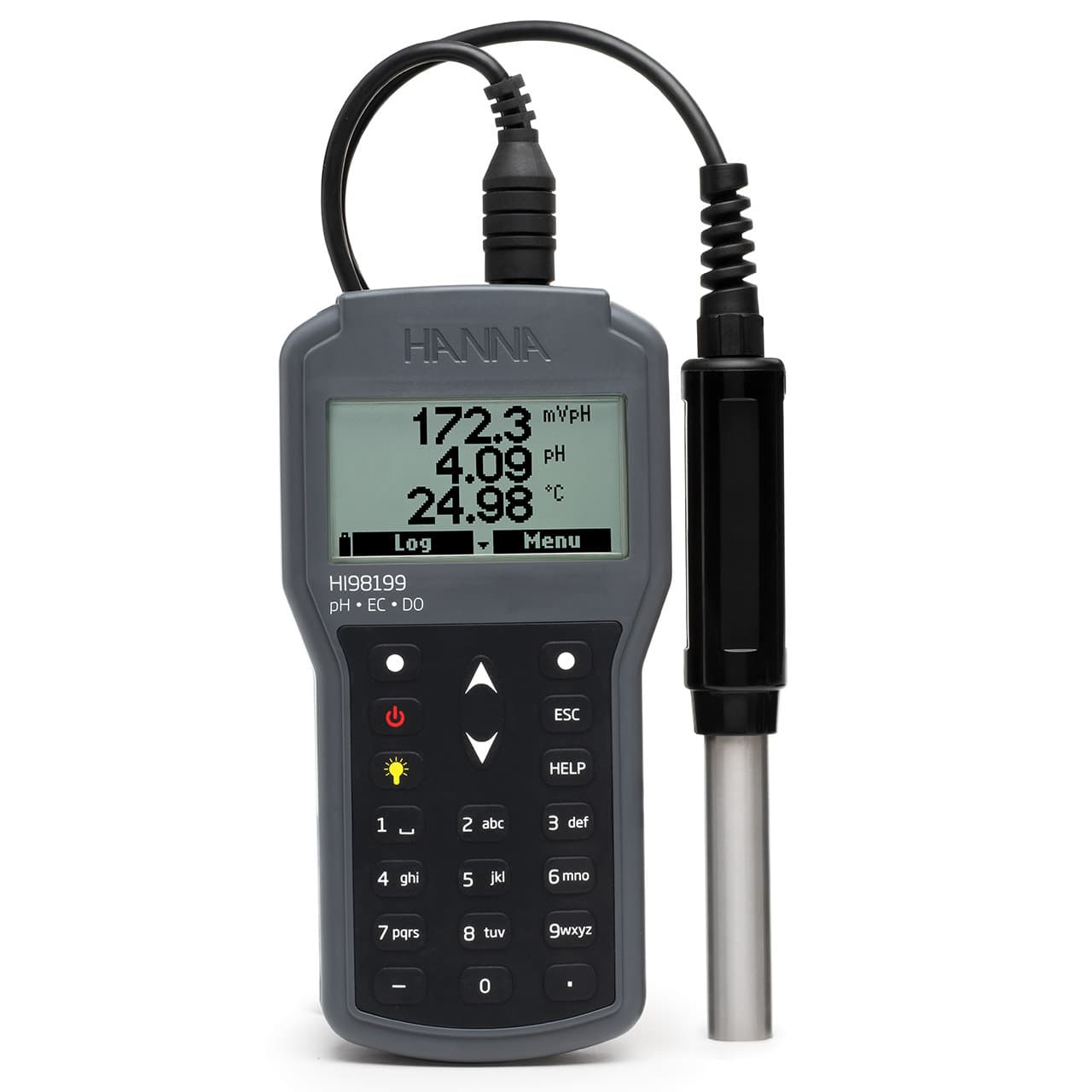

Multiparameter Water Quality Meter, pH/EC/DO – HI98199
Product code: MX-12877
Increased Traceabilty Ensure that your data can be trusted with GLP data. Accessible through the menu, this data includes date, time, buffers/standards used for calibration, and slope characteristics of the last calibration.
Used in:Water & environment
Prices are quoted, not listed. Add this product to your request. We’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Ask about this product on LINEPrefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Increased Traceabilty Ensure that your data can be trusted with GLP data. Accessible through the menu, this data includes date, time, buffers/standards used for calibration, and slope characteristics of the last calibration. Versatile Data Logging The HI98199 allows you to store up to 45,000 continuous or log-on-demand samples with logging intervals from one second to three hours. Dedicated Help Key Clear tutorial messages and directions are available on-screen to quickly and easily guide you through setup and calibration. Superior Field Usability An IP67-rated, waterproof meter means that bad weather, splashes, and dust won't stop you from taking important measurements. The HI98199 is built to withstand immersion in water of 1m for up to 30 minutes. A large display and back light feature ensure that all of your important information is easily visible, no matter the amount of light. Universal Port The ultra-versatile USB-C port integrates seamless transfer of data. There is no need for software- simply connect a USB-C and send your data as a .csv to a memory stick, computer, or android device. Quick Connect Digital Probe The Quick Connect fitting is designed for quick and easy installation of the probes. A watertight connection without threads make attaching and removing the probe simple. The probe and meter automatically recognize the sensors making it easy to change electrodes. Each probe transmits readings digitally to the meter, where data points can be displayed and logged. Versatility when you need it. Hanna's pH probe is included with the HI98199 and the EC and DO probes can be ordered separately. pH Probe - HI829113 (included) Up to a three-point calibration with five standard buffers and one custom buffer available pH in mV option is useful for diagnostics GLP data Automatically temperature compensated readings EC Probe - HI763093 (optional) Single-point calibration from six standards Automatic Temperature Compensation Auto-ranging Salinity readings Practical Salinity Scale (PSU) based on conductivity calibration DO Probe - HI764103 (optional) Display units in % saturation or ppm (mg/L)
Specifications
| pH Range | 0.00 to 14.00 pH |
|---|---|
| pH Resolution | 0.01 pH |
| pH Accuracy | ±0.02 pH |
| pH Calibration | automatic one, two, or three points of five standard buffers (pH 4.01, 6.86, 7.01, 9.18, 10.01) or one custom buffer |
| pH Temperature Compensation | yes |
| mV Range | ±600.0 mV |
| mV Resolution | 0.1 mV |
| mV Accuracy | ±0.5 mV |
| EC Range | 0 to 200 mS/cm |
| EC Resolution | 1 μS/cm; 0.001 mS/cm; 0.01 mS/cm; 0.1 mS/cm; 1 mS/cm |
| EC Accuracy | ±1.5% of reading or ±2 μS/cm whichever is greater |
| EC Calibration | automatic single-point, with six standard solutions (84 μS/cm, 1413 μS/cm, 5.00 mS/cm, 12.88 mS/cm, 80.0 mS/cm, 111.8 mS/cm) or custom point |
| TDS Range | 0.0 to 200.0 ppt (g/L) (the maximum value depends on the TDS factor) |
| TDS Resolution | 1 ppm (mg/L); 0.001 ppt (g/L); 0.01 ppt (g/L); 0.1 ppt (g/L); 1 ppt (g/L) |
| TDS Accuracy | ±1% of reading or ±1 ppm (mg/L) whichever is greater |
| TDS Calibration | based on conductivity calibration |
| EC/TDS Temperature Compensation | yes |
| Temperature Correction Coefficient | 0.00 to 6.00 %/°C |
| EC to TDS Conversion Factor | 0.00 to 1.00 |
| Reference Temperature | 25 °C or 20 °C |
| Cell Type | four ring |
| EC/TDS Multi-range Measurement Modes | yes |
| Salinity (PSU) Range | 0.00 to 70.00 PSU |
| Salinity (PSU) Resolution | 0.01 PSU |
| Salinity (PSU) Accuracy | ±2% of reading or ±0.01 PSU whichever is greater |
| Salinity (PSU) Calibration | based on conductivity calibration |
| Salinity (Seawater Sigma) Range | 0.0 to 50.0 σt, σ0, σ15 |
| Salinity (Seawater Sigma) Resolution | 0.1 σt, σ0, σ15 |
| Salinity (Seawater Sigma) Accuracy | ±1 σt, σ0, σ15 |
| Salinity (Seawater Sigma) Calibration | based on conductivity calibration |
| Resistivity Range | 0 to 999999 Ω•cm; 0 to 1000.0 kΩ•cm; 0 to 1.0000 MΩ•cm |
| Resistivity Resolution | 1 Ω•cm; 0.1 kΩ•cm; 0.0001 MΩ•cm |
| Resistivity Calibration | based on conductivity calibration |
| Dissolved Oxygen Measurement Type | galvanic |
| Dissolved Oxygen Range | 0.0 to 500.0%; 0.00 to 50.00 ppm (mg/L) |
| Dissolved Oxygen Resolution | 0.1%; 0.01 ppm (mg/L) |
| Dissolved Oxygen Accuracy | 0.0 to 300.0% |
| Dissolved Oxygen Calibration | automatic one or two points at 0, 100% or one custom point |
| Dissolved Oxygen Temperature Compensation | yes |
| Barometric Pressure Compensation | yes |
| Salinity Compensation | yes |
| Temperature Range | -5.00 to 55.00 °C; 23.00 to 131.00 °F; 268.15 to 328.15 K |
| Temperature Resolution | 0.01 °C; 0.01 °F; 0.01 K |
| Temperature Accuracy | ±0.15 °C; ±0.27 °F; ±0.15 K |
| Temperature Calibration | automatic at one custom point |
| Temperature Compensation | automatic from -5 to 55 °C (23 to 131 °F) |
| Logging Type | continuous logging or log-on-demand |
| Logging Memory | 45000 records |
| Logging Interval | one second to three hours |
| Connectivity | via USB-C with Hanna software |
| Automatic Shut-Off | Not used (disabled), 5, 10, 15, 20, 30, 60 minutes |
| GLP | yes |
| Calibration Timeout Reminder | yes |
| Display | dot matrix |
| Battery Type/Life | 1.5V AA batteries (4) / approximately 400 hours of continuous use without backlight (50 hours with backlight) |
| IP Protection | IP67 |
| Environment | 0 to 50 °C (32 to 122 °F); RH 100% |
| Dimensions | 185.0 x 93.0 x 35.2 mm (7.3 x 3.6 x 1.4”) |
| Weight | 400 g (14.2 oz.) |
| Ordering Information | HI98199 is supplied with the HI829113 pH digital probe with 4m (13’) cable, pH calibration solution sachets, PC software, micro USB cable, batteries, quality certificate, and instruction manual in a rugged carrying case. |
| Atmospheric Pressure Range | 450 to 850 mmHg; 17.72 to 33.46 in Hg 600.0 to 1133.2 mbar; 8.702 to 16.436 psi 0.5921 to 1.1184 atm; 60.00 to 113.32 kPa |
| Atmospheric Pressure Resolution | 0.1 mmHg; 0.01 in Hg; 0.1 mbar; 0.001 psi; 0.0001 atm; 0.01 kPa |
| Atmospheric Pressure Accuracy | ±3 mmHg within ±15 °C from the temperature during calibration |
| Atmospheric Pressure Calibration | automatic at one custom point |
