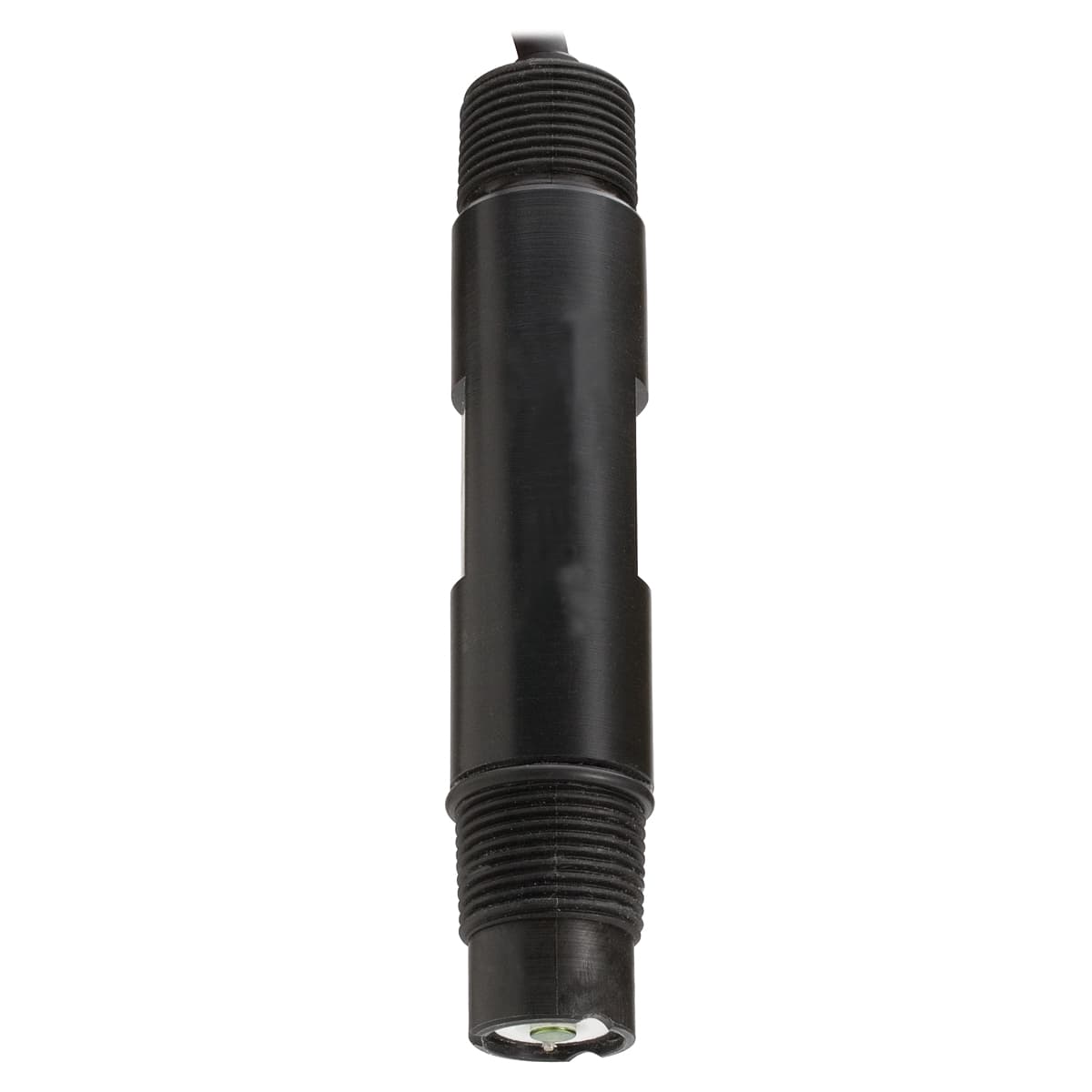

Industrial Flat Tip pH Electrodes

Select the flat tip electrode that best fits your process requirements by choosing from the following technical characteristics: Sku Cable Length Connection Internal Temperature Sensor Glass Type Junction HI1006-4005 5m (16.4') BNC No Fluoride Resistant (HF) PTFE HI1006-3005 5m (16.4') BNC No High Temperature (HT) PTFE HI1006-3007 7m (22.97') BNC No High Temperature (HT) PTFE HI1006-3205 5m (16.4') BNC Pt100 High Temperature (HT) PTFE HI1006-1005 5m (16.4') BNC No Low Temperature (LT) PTFE HI1016-3005 5m (16.4') BNC No High Temperature (HT) Ceramic HI1006-1007 7m (22.97') BNC No Low Temperature (LT) PTFE HI1006-3010 10m (32.8') BNC No High Temperature (HT) PTFE HI1006-1205 5m (16.4') BNC Pt100 Low Temperature (LT) PTFE HI1006-4205 5m (16.4') BNC Pt100 Fluoride Resistant (HF) PTFE HI1006-3715 15m (49.2') BNC Pt100 High Temperature (HT) PTFE Junction Three junction types are available: Annular non-clogging PTFE junction, for testing solutions with high content of suspended solids or for high pressure installation Open junction, ideal for wastewater analysis Ceramic junction Connection Type Electrodes are wired for direct connection to a transmitter or process controller, or with the standard BNC connector. Glass Sensor Hanna has developed four types of specialized glass. First is a durable sensor glass for general purpose, industrial use. This glass can withstand the stress of daily use. The remaining types of electrode glass allow continuous monitoring in highly acidic solutions containing fluoride ions, as well as high or low temperature process and streams significantly increase the electrode life. Built-in Amplifier Models with a built-in amplifier are necessary for long distance measurements, where it is not possible to install a transmitter. The internal amplifier can be powered directly from select Hanna process controllers or a power source that supplies the appropriate voltage. Temperature Sensor The pH electrodes with built-in 3-wire Pt100 or Pt1000 temperature sensor allow for the temperature compensation of pH readings as well as temperature measurements. Cable Length Non-amplified electrodes are provided with a 5, 10 or 15 m cable (16', 33' or 49'), while the amplified models are provided with a 15, 25, 50 or 75 m cable (49, 82, 164 or 246').
