Hanna

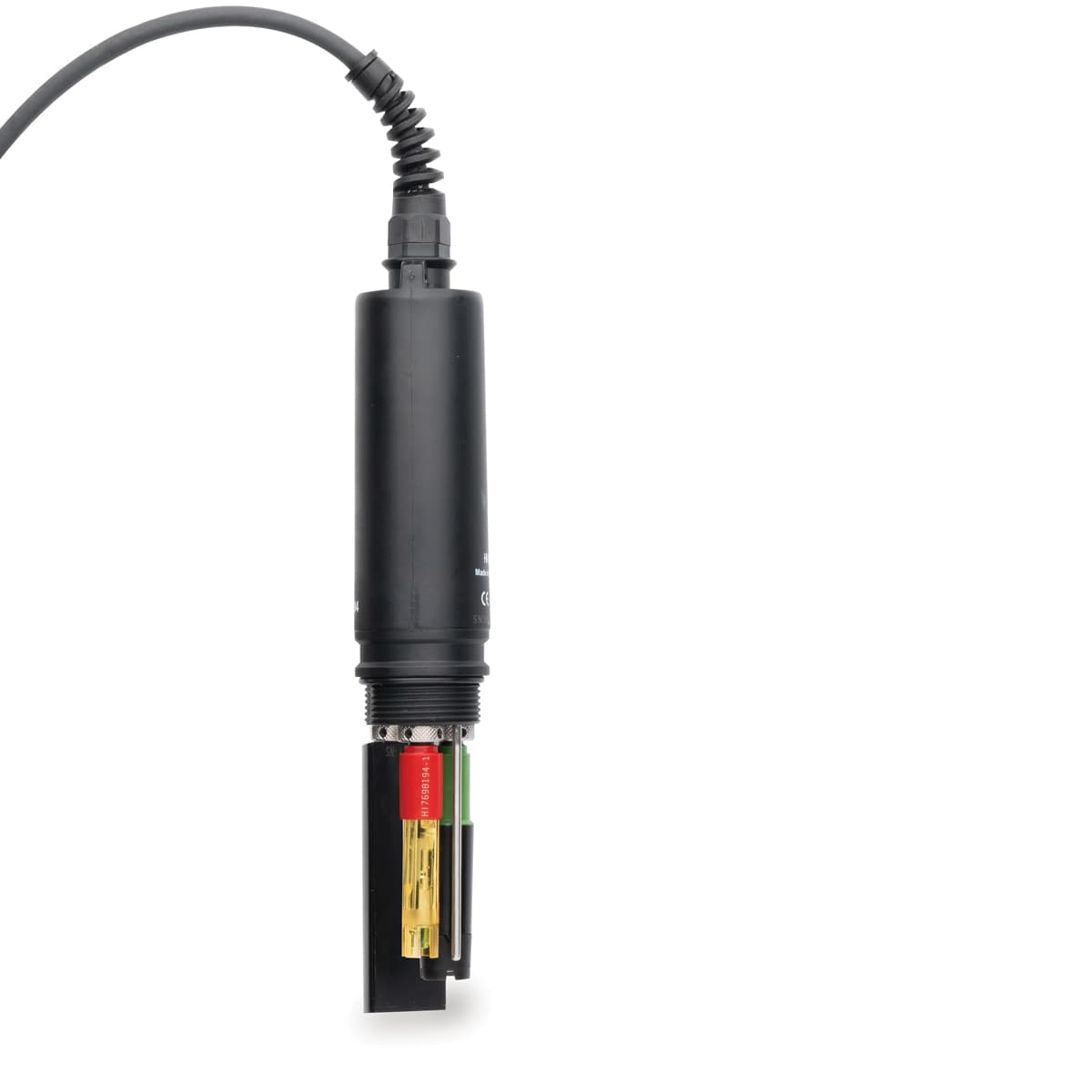

Multiparameter pH/EC/Turbidity/opdo Probe for HI98594

Product code: MX-12990

Features at-a-glance Waterproof Protection - The HI7698594 probe features an IP68 rating for continuous immersion in water. Quick Connect Digital Probe - The HI7698594 probe features a Quick Connect DIN connector that makes a waterproof connection with the meter.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Features at-a-glance Waterproof Protection - The HI7698594 probe features an IP68 rating for continuous immersion in water. Quick Connect Digital Probe - The HI7698594 probe features a Quick Connect DIN connector that makes a waterproof connection with the meter.

Color-Coded, Field Replaceable Sensors - Sensor replacement is quick and easy with field replaceable, screw type connectors that are color-coded for easy sensor port identification. Auto-sensor Recognition - The probe and meter automatically recognize the sensors that are connected. Any ports not used on the probe will not have the parameter displayed or be configurable. Automatic temperature compensation – Integrated temperature sensor allows for automatic temperature compensation of pH, conductivity, and dissolved oxygen measurements.

Specifications

Sensor inputspH or pH/ORP EC/Turbidity Dissolved Oxygen
Sample environmentFresh, brackish, seawater
Operating temperature−5.0 to 50.0 °C 23.0 to 122.0 °F
Immersion depth20 m (66'
Dimensions (without cable)Length 342 mm (13.5in.) Diameter 46 mm (1.8in.)
Weight (with sensors)570 g (20.1 oz.)
CableMultistrandmulticonductor shielded cable with internal strength member rated for 90 kg (200 lbs) intermittent use
Wetted materialsBody ABS Threads Nylon Shield ABS and 316 stainless steel Temperature probe 316 stainless steel Orings EPDM (ethylene propylene diene monomer rubber)
