Product code: MX-12991

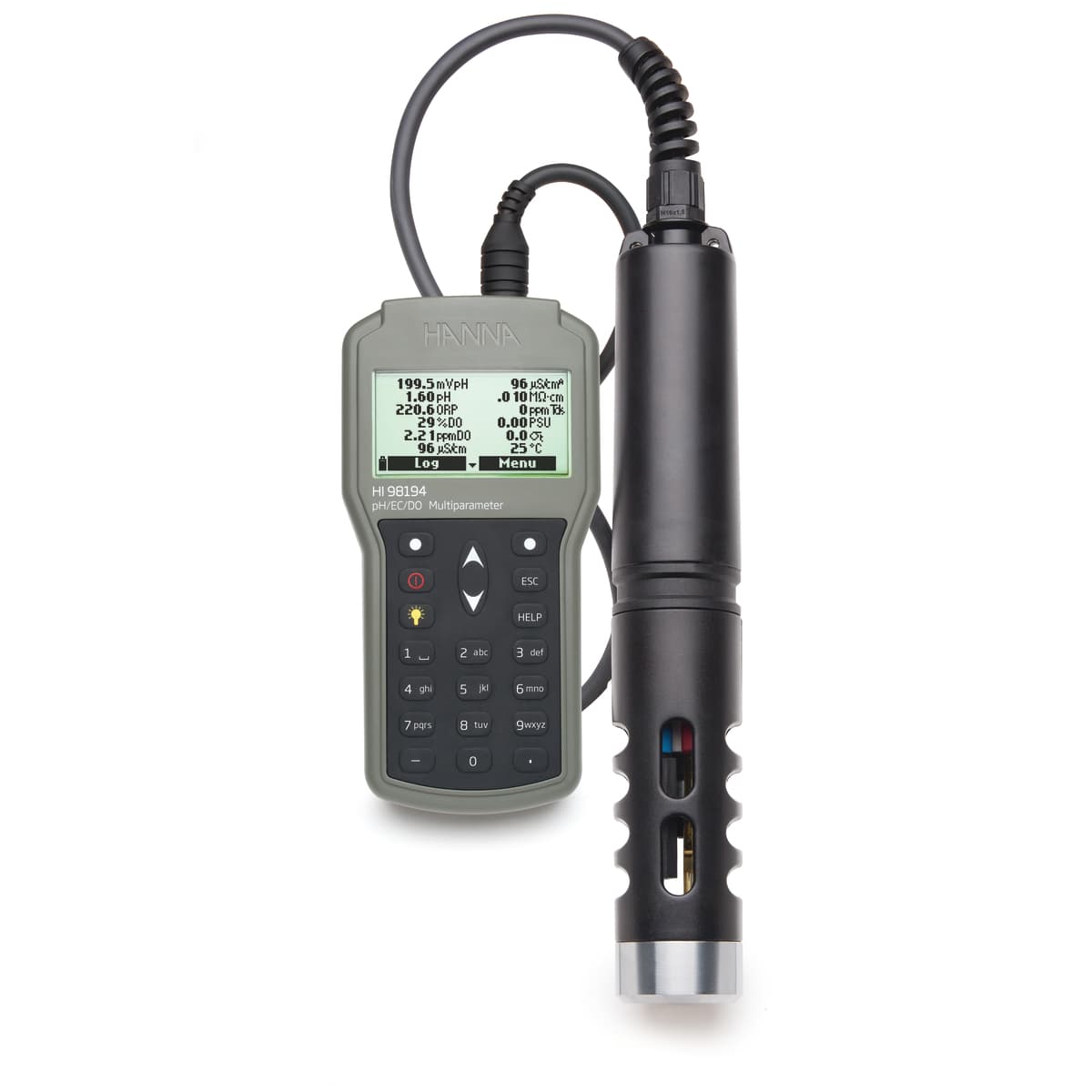

The HI98194 is a waterproof portable logging multiparameter water quality meter that monitors up to 12 different parameters. Its multi-sensor probe allows for the measurement of key parameters including pH, ORP, conductivity, dissolved oxygen, and temperature.
Prices are quoted, not listed. Add this product to your quote request and we reply with pricing and availability, usually within one business day. No payment, no account, no minimum order.
Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.
The HI98194 is a waterproof portable logging multiparameter water quality meter that monitors up to 12 different parameters. Its multi-sensor probe allows for the measurement of key parameters including pH, ORP, conductivity, dissolved oxygen, and temperature. The multiparameter probe transmits readings digitally to the meter, where data points can be displayed and logged. The complete water quality meter is simple to setup. Features at-a-glance Backlit Graphic LCD Display - The HI98194 features a backlit graphic LCD with on-screen help and the capability to display up to twelve parameters simultaneously. The graphic display allows for the use of virtual keys to provide for an intuitive user interface. Waterproof Protection - The multiparameter meter is enclosed in an IP67 rated waterproof casing and can withstand immersion in water at a depth of 1m for up to 30 minutes. The probe features an IP68 rating for continuous immersion in water.Quick Connect Digital Probe - The HI7698194 probe features a Quick Connect DIN connector that makes a waterproof connection with the meter.Color Coded, Field Replaceable Sensors - Sensor replacement is quick and easy with field replaceable, screw type connectors that are color-coded for easy sensor port identification.Auto-sensor Recognition - The probe and meter automatically recognize the sensors that are connected. Any ports not used on the probe will not have the parameter displayed or be configurable.Automatic Temperature Compensation - Integrated temperature sensor allows for automatic temperature compensation of pH, conductivity, and dissolved oxygen measurements. Automatic Barometric Pressure Compensation - The meter features a built-in barometer with user-selectable units for dissolved oxygen pressure compensation.Standard or Quick Calibration - Quick Calibration provides a speedy, single point calibration for pH, conductivity, and dissolved oxygen. Standard pH calibration options are available for calibrating up to three points from a selection of five standard buffers and one custom buffer. Conductivity calibration is a single point from six standard selections or one custom standard. Dissolved oxygen calibration is up to two standard points or a single custom point.GLP Data - HI98194 includes a GLP feature that allows users to view calibration data and expiration information at the touch of a key. Calibration data includes date, time, buffers/standards used for calibration, and slope characteristics.Data Logging - The HI98194 allows users to store up to 45,000 continuous or log-on-demand samples with logging intervals from one second to three hours.Intuitive Keypad - The fitted rubber keypad has dedicated keys for power, backlight, up/down arrows, help and alphanumeric characters. The meter also features two virtual soft keys that navigate the user through the configuration of each parameter, meter setup, and logging of data. The interface is intuitive for any users level of experience.Dedicated Help Key - Contextual help is always available through a dedicated "HELPin. key. Clear tutorial messages and directions are available on-screen to quickly guide users through setup and calibration. The help information displayed is relative to the setting/option being viewed.PC Connectivity - Logged data can be transferred to a Windows compatible PC with the included HI920015 micro USB cable and HI9298194 software.Long Battery Life - The display of the water quality meter has a battery icon indicator to show the remaining power. The meter uses four 1.5V AA batteries that provide up to 360 hours of battery life. Rugged Thermoformed Carrying Case - The HI98194 meter, probe, and all accessories are supplied in a rugged carrying case designed to provide years of use. The inside compartment of the carrying case is thermoformed to securely hold and protect all of the components.
| pH Accuracy (@25°C/77°F) | ± 0.02 pH |
|---|---|
| mv Range | ± 600.0 mV |
| mv Accuracy | ± 0.5 mV |
| ORP Range | ± 2000.0 mV |
| ORP Accuracy (@25°C/77°F) | ± 1.0 mV |
| Temperature Range | -5.00 to 55.00 °C, 23.00 to 131.00 °F, 268.15 to 328.15 K |
| Temperature Resolution | 0.01 °C, 0.01 °F, 0.01 K |
| Temperature Accuracy (@25°C/77°F) | ± 0.15 °C, ± 0.27 °F, ±0.15 K |
| EC Resolution | Manual: 1 µS/cm, 0.001 mS/cm, 0.01 mS/cm, 0.1 mS/cm, 1 mS/cM Automatic: 1 µS/cm from 0 to 9999 µS/cm, 0.01 mS/cm from 10.00 to 99.99 mS/cm, 0.1 mS/cm from 100.0 to 400.0 mS/cM Automatic (mS/cm): 0.001 mS/cm from 0.000 to 9.999 |
| EC Accuracy (@25°C/77°F) | ±1 % of reading or ±1 µS/cm whichever is greater |
| TDS Resolution | Manual: 1 ppm (mg/L), 0.001 ppt (g/L), 0.01 ppt (g/L), 0.1 ppt (g/L), 1 ppt (g/L)Automatic: 1 ppm (mg/L) from 0 to 9999 ppm (mg/L), 0.01 ppt (g/L) from 10.00 to 99.99 ppt (g/L), 0.1 ppt (g/L) from 100.0 to 400.0 ppt (g/L), |
| TDS Accuracy (@25°C/77°F) | ±1 % of reading or ±1 ppm (mg/L) whichever is greater |
| DO Range | 0.0 to 500.0 %, 0.00 to 50.00 ppm (mg/L) |
| DO Resolution | 0.1 %, 0.01 ppm (mg/L) |
| DO Accuracy (@25°C/77°F) | 0.0 to 300.0 %: ± 1.5 % of reading or ± 1.0 % whichever is greater, 300.0 to 500.0 %: ± 3 % of reading0.00 to 30.00 ppm (mg/L): ± 1.5 % of reading or ±0.10 ppm (mg/L)whichever is greater, 30.00 ppm (mg/L) to 50.00 ppm (mg/L): ± 3 % of reading |
| Resistivity Range | 0 to 999999 ©·cm, 0 to 1000.0 k©·cm, 0 to 1.0000 M©·cm |
| Resistivity Resolution | Depending on resistivity reading |
| Resistivity Accuracy (@25°C/77°F) | Based on conductivity or salinity calibration |
| Salinity Accuracy (@25°C/77°F) | ±2% of reading or ±0.01 PSU whichever is greater |
| Connectivity | USB to PC with HI9298194 Hanna software installed |
| GLP | Yes |
| Power Supply | 1.5V AA batteries (4) |
| Power Consumption | approximately 360 hours of continuous use without backlight (50 hours with backlight) |
| Dimensions | 185 x 93 x 35.2 mm (7.3 x 3.6 x 1.4in.) |
| Order Information | HI98194 is supplied with HI7698194 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI7698194-2 DO sensor, HI 76981942 Probe maintenance kit (HI 7042S DO electrolyte solution, DO membrane caps (5), O-rings for sensors |
| Warranty | 2 years |
| Recommended Probe | HI7698194 probe, HI7698194-1 pH/ORP sensor, HI7698194-3 EC sensor, HI7698194-2 DO sensor |
