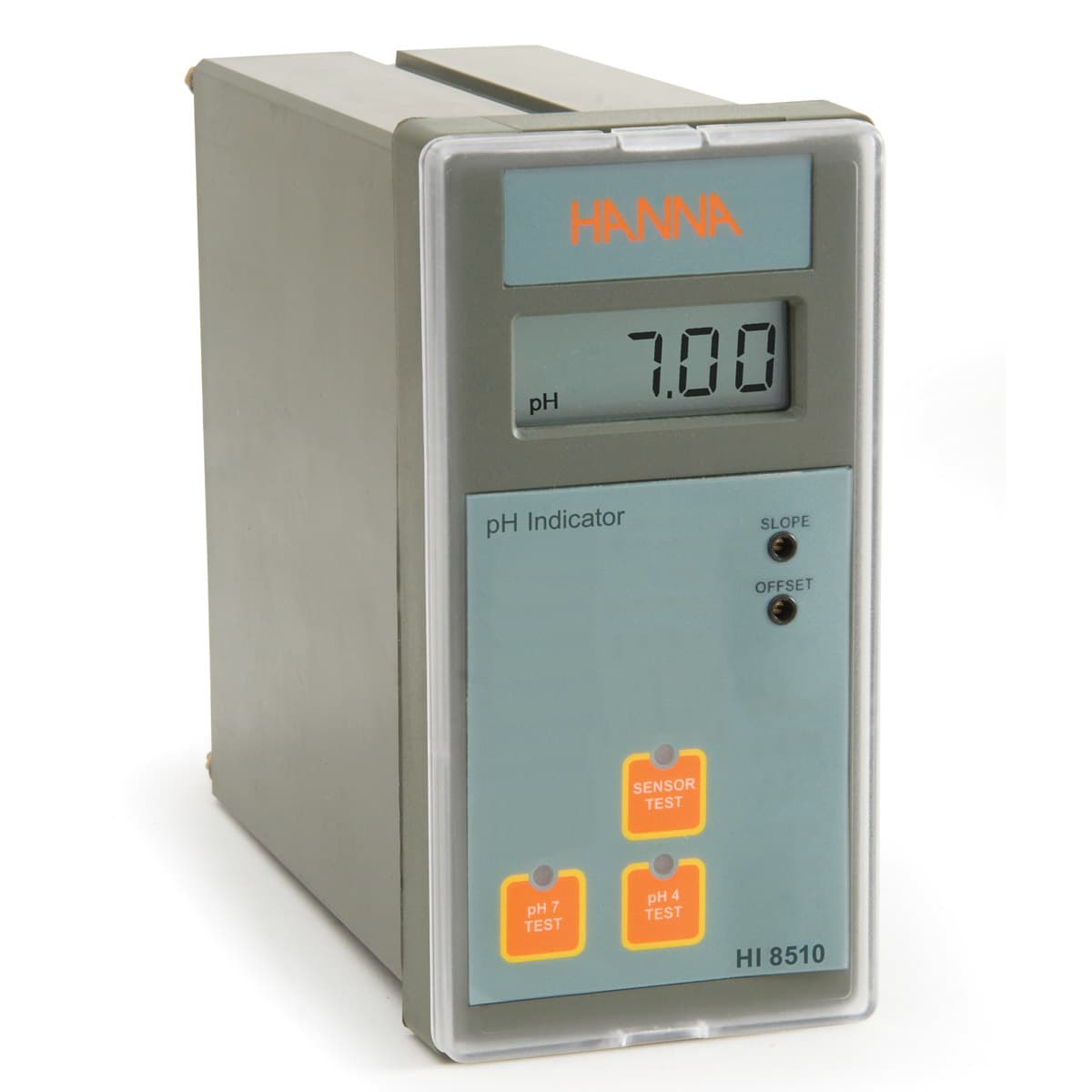

Panel-mounted pH Analog Indicator with Self Diagnostic Test
Product code: MX-13027
HI 8510 is provided with membrane keypads on the front panel, large display, and auto-diagnostic functions to check pH electrode and instrument status.
Prices are quoted, not listed. Add this product to your request. We’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Ask about this product on LINEPrefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
Easy Installation
HI 8510 is provided with membrane keypads on the front panel, large display, and auto-diagnostic functions to check pH electrode and instrument status.
Easy pH Electrode Connection
Allows for quick and easy connection to any pH meter or transmitter.
Self-testing Diagnostics
Built-in autodiagnostic functions to enable the user to check and troubleshoot any malfunctions. The functions are made via front panel keys to isolate the cause of malfunction whether it is due to pH electrode contamination, internal offset circuit or the amplifier circuit.
Protective Cover
A removable, transparent splash-proof cover protects the front panel.
Recorder Terminals
To enhance troubleshooting and the ability to record data while monitoring, simply attach a recording device to the instrument's 4 to 20 mA output contacts, conveniently located on the front panel, to obtain a copy of the results on demand.
Automatic Temperature Compensation
A 2-wire Pt100 can be connected to provide automatic temperature compensation of measurements.
Specifications
| pH Range | 0.00 to 14.00 pH |
|---|---|
| pH Resolution | 0.01 pH |
| pH Accuracy (@20°C/68°F) | ±0.02 pH (0 to 100 °C)/ ±0.05 pH (-20 to 0 °C) (electrode) ±0.5% (transmitter) |
| Temperature Compensation | Fixed or automatic with Pt100 from ‑20 to 100 °C (‑4 to 212 °F) |
| Calibration | Offset: ±2 pH with OFFSET trimmerSlope: 80 to 110% with SLOPE trimmer |
| Recorder Output | 0‑20 mA or 4‑20 mA (isolated) |
| Power Output | ±5 Vcc 150 mA max load for amplified electrodes |
| Backlight | Continuous ON |
| Power Supply | 115 or 230 Vac 60/50 Hz |
| Environment | $-10 to 50°C (14 to 122°F) RH max 95% non-condensing |
| Enclosure/ Case Material | Black anodized aluminium body front and back with ABS transparent splash-proof front cover |
| Dimensions | 141 x 69 mm (5.6 x 2.7'') |
| Weight | kg (2.2 lb.) |
