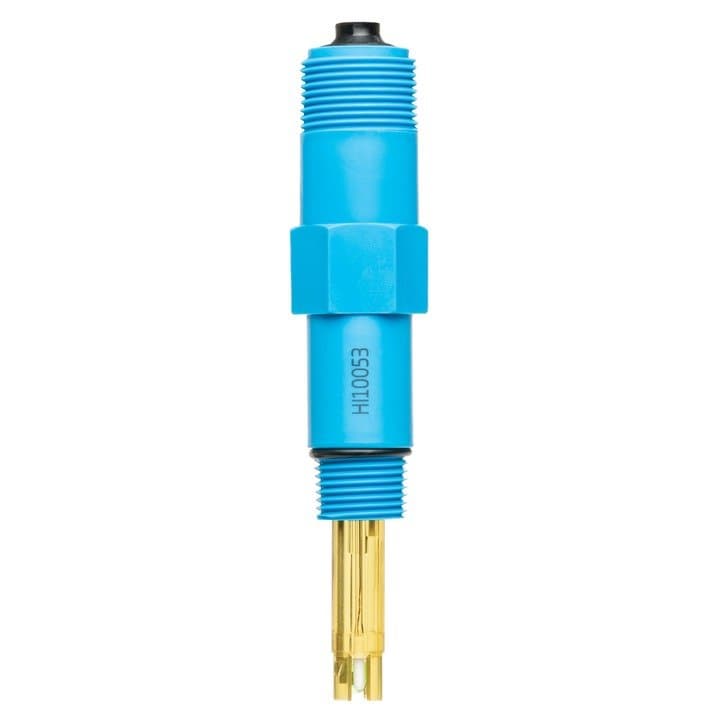

Pool Line pH/Temperature Probe
Product code: MX-13129
The BL100 uses the HI10053 amplified probe that incorporates both pH and temperature sensors and connects to the controller with a single waterproof Quick Connect DIN connector.
Prices are quoted, not listed. Add this product to your request. We’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.
Ask about this product on LINEPrefer to talk? Call +66 99 241 5692, email us or chat on LINE.
Product description
The BL100 uses the HI10053 amplified probe that incorporates both pH and temperature sensors and connects to the controller with a single waterproof Quick Connect DIN connector.
Built-in Amplifier
The built-in amplifier helps to reduce electrical noise from recirculation pumps to provide for stable, reliable measurement.
pH Glass
The pH glass used is ideal for low conductivity water and provides for a fast response.
PVDF Body
The PVDF body of the probe has a 1/2in. threaded fitting for insertion to an in-line "Tin. fitting or the flow cell. The probe body has a hex fitting for tightening snuggly with a wrench.
Safety Features
The HI10053 is designed to have a 0 mV value at pH 4, and not at pH 7 like typical pH electrodes. In the event of a break, this reading will produce an alarm state (when programmed) and disable the pump from dosing. A standard pH electrode would have a pH value close to 7 and could result in either no dosing or excessive dosing based on the actual value and programmed set point.
