Hanna

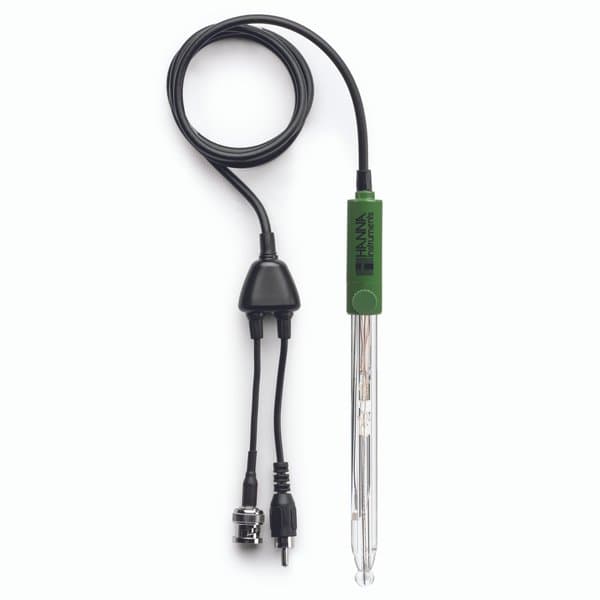

Refillable Combination pH Electrode with BNC + RCA Connector

Product code: MX-13198

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

Prices are quoted, not listed.

Ask for a quotation and we’ll check the specification, pricing and availability, and confirm the delivery details before you order. No payment, no account, no minimum order.

Ask about this product on LINE

Request a quotation for this item

For a number outside Thailand, start with + and the country code.

A phone number or an email address is enough for us to reply to this request. Privacy Policy

For several items, add each one to a single request.

1

Prefer to talk? Call +66 99 241 5692, email us or chat on LINE.

Product description

Hanna Instruments offers a wide variety of pH electrodes that are designed for many different applications. The type of glass used for sensing pH, bulb shape, body material, type of junction, type of reference and electrolyte used are just some of the design considerations.

The HI1131Y pH electrode uses high temperature (HT) glass, spherical bulb, glass body, a single ceramic frit, double junction and is refillable with 3.5M KCl.

High Temperature Glass Formulation

The measurement of pH at very high temperatures is detrimental to the sensitive glass bulb and will shorten the life of it. High temperature glass can stand up to the effects of elevated temperatures leading to longer probe life.

Spherical Glass Tip

The spherical shaped tip design allows for a wider area of contact with the sample for a faster measurement, making it ideal for general laboratory use.

Glass Body

A glass body is easy to clean, is chemically resistant, and quick to reach thermal equilibrium for a faster, more stable measurement.

Single Ceramic Double Junction Reference

The HI1131Y is a double junction design. pH electrodes are available as single junction or double junction. See below for a complete description of the differences. The junction also known as a salt bridge is necessary component of the electrical circuit. The movement of ions must flow through the junction for a steady reading. The outer reference has a single ceramic frit. The ceramic is a porous material that is easily fused with the glass body and has a similar expansion coefficient. A single ceramic junction has a flow rate of 15-20 ?L/hour. Other junction types are available with higher flow rates and made with different materials.

Refillable

The HI1131Y is a refillable probe. Since it is a double junction combination ph electrode the fill solution is the HI7082 3.5M KCl. This solution does not contain any silver as with single junction electrode. The absence of silver will prevent any silver precipitate from forming at the junction surface and clogging it. Clogging of the junction will result in drifty and erratic readings.

BNC + RCA Connector

The HI1131Y has a BNC + RCA connector. This type of connector is unique as it is a BNC electrode that no longer requires the separate HI7662 temperature sensor. The RCA part of the connector incorporates an NTC thermistor temperature sensor. These types of connectors tend to be proprietary.

Compatible Products Open or Close

You can utilize a HI1131Y pH electrode with Hanna products that use a BNC pH electrode with the HI7662 Temperature Probe.

Specifications

DescriptionRefillable Combination pH Electrode with BNC + RCA Connector
Referencedouble, Ag/AgCl
Junction / Flow Rateceramic, single / 15-20 µL/h
ElectrolyteKCl 3.5M
Max Pressure0.1 bar
RangepH: 0 to 14
Recommended Operating Temperature0 to 100°C (32 to 212°F)
Glass TypeHT (high temperature)
Tip / Shapespheric (dia: 9.5 mm)
Temperature Sensoryes
Matching Pinno
Amplifierno
Body Materialglass
Cablecoaxial
Recommended Uselaboratory, general purpose
ConnectionBNC + RCA
Special NoteCompatible with: HI5222, HI5521, HI5522, HI84243, HI84502, HI84529, HI84530, HI84531, HI84532, HI84533, HI84534, HI901W, HI931, HI932
